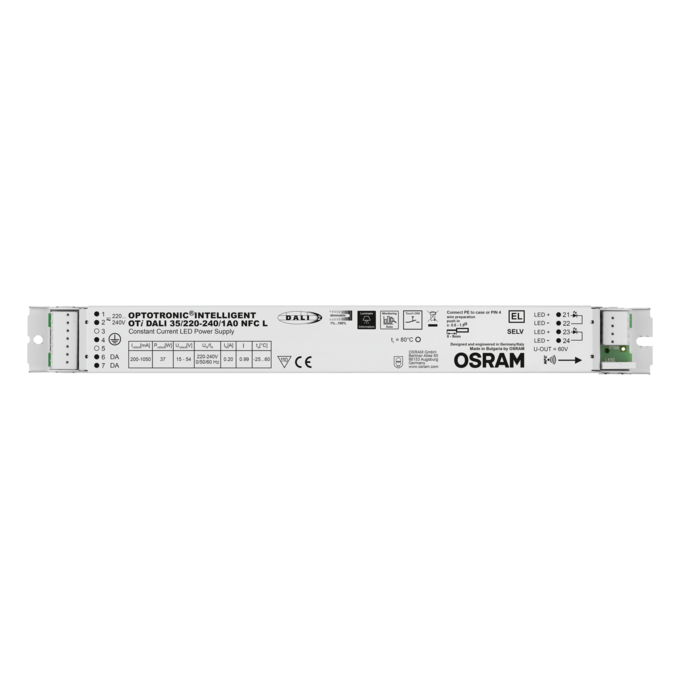

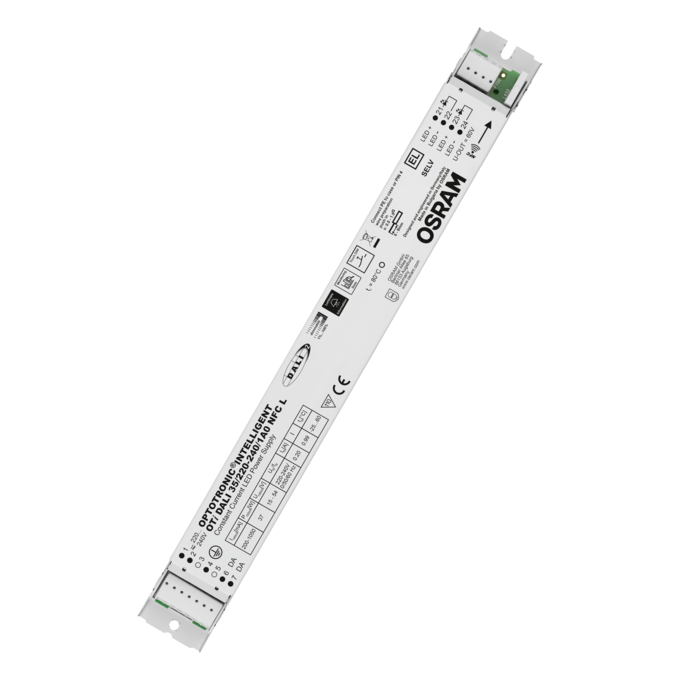

OTi DALI 35/220...240/1A0 NFC L
4062172074964
Product benefits
- Fully programmable via software (DALI Interface, NFC)
- Advanced luminaire/driver data (power, energy, operating hours…) for analytics
- DALI-2 certified incl. Parts 251, 252, 253
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- High-quality dimming of 1…100 % by amplitude dimming
- Higher quality of light thanks to < 3 % output ripple current
- Very high efficiency
- Very low standby power consumption: < 0.15 W
- Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
Areas of application
- Linear lighting for office, education, industry, storage areas and retail
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for luminaires of protection class I
Product features
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Versatile DALI window driver up to 80 W due to flexible output characteristic
- Supply voltage: 220…240 V
- Available with output current range: up to 2,100 mA
- Constant Lumen Output (CLO)
- Integrated customizable thermal management (Driver Guard)
Ambient temperature range
-25…+60 °C
Body material
Metal
Cable cross-section, input side
0.5…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Metal
Conductor cross section
0.5…1.5 mm²
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Device power loss
3,0 W
Dimmable
Yes
Dimming interface
DALI
Dimming range
1…100 %
ECG efficiency
89 % 1)
ECG lifetime
100000
Energy efficiency class
A1
Flickering metric (Pst LM)
≤1
Galvanic isolation
SELV
GTIN
4062172074964
Height
21.00 mm
Input voltage AC
198…264 V
Input voltage DC
176…276 V
Input voltage range
220…240 V
Inrush current
≤20 A
Length
280.0 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0/50/60 Hz
Max. cable length to lamp/LED module
2,0 m 1)
Max. ECG no. on circuit breaker 10 A (C)
-
Max. ECG no. on circuit breaker 16 A (C)
-
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
270,0 mm
No-load proof
Yes
Nominal output current
200…1050 mA
Nominal output power
4…37 W
Nominal output voltage
15…54 V
Nominal voltage
220…240 V
Nominal wattage
37.00 W
Output current tolerance
±3 %
Output ripple current (100 Hz)
≤ 3 %
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
≥0.95
Product recyclability
Mostly recyclable product 1)
Product weight
209.00 g
Protection class
1
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to IEC 61347
Stroboscope effect metric (SVM)
≤0.4
Suitable for fixtures with prot. class
I
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-40…+85 °C
Total harmonic distortion
≤ 10 %
Type of connection, output side
Push terminal
Type of protection
IP20
U-OUT (working voltage)
< 60 V
Width
30.00 mm
Wire preparation length, input side
8.0…9.0 mm
Wire preparation length, output side
8.0…9.0 mm
