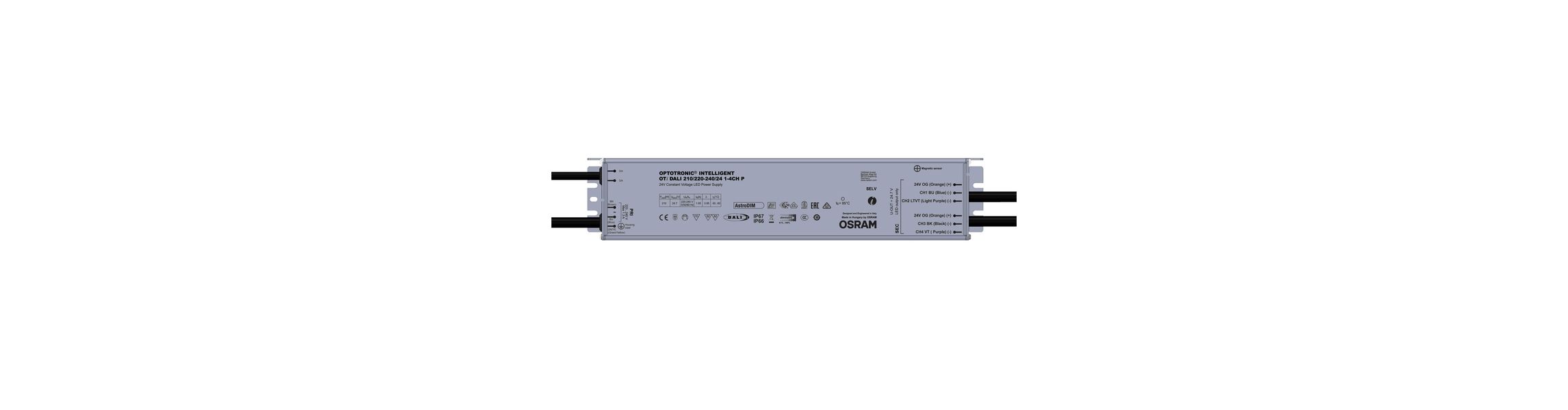

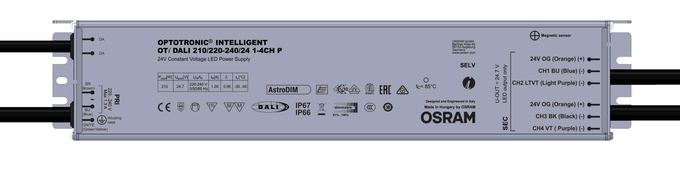

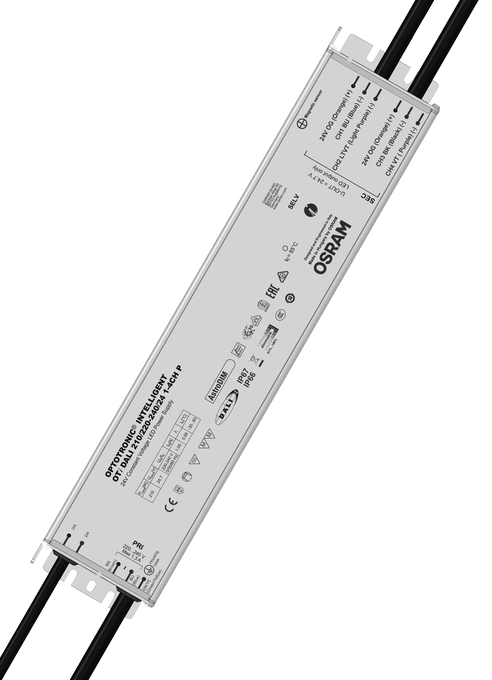

OTi DALI 210/220-240/24 1-4 CH
4062172032087
Product benefits
- Long lasting and high reliability
- From 1 to 4 channels to arbitrarily distribute the power
- Suitable for installation under sunlight
- IP66/IP67 Salt mist resistant and DC functionality
- AstroDim functionality for automatic dimming and turn on/off
Areas of application
- Public squares and architecture lighting
- Suitable for indoor and outdoor SELV installations
- Suitable for use in luminaires of protection class I
Product features
- 1 to 4 DALI addressable channels
- LED driver whose output power can be shared arbitrarily among the 2 or 4 channels
- AstroDim functionality
- Dimming range: 0/0, 1…100 %
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- High level surge protection: up to 6 kV (L-N), 8 kV (L/N-PE)
- Inrush current limiter circuit
Ambient temperature range
-20…+60 °C
Approval marks – approval
B
Body material
Aluminium
Cable cross-section, input side
1 mm²
Cable cross-section, output side
1.5 mm²
Casing material
Aluminium
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
18.4 W
Dimmable
Yes
Dimming interface
DALI-2
Dimming range
0…100 %
ECG efficiency
93 %
ECG lifetime
50000 h
Galvanic isolation
SELV
GTIN
4062172032087
Height
37.00 mm
Input voltage AC
198…264 V
Input voltage DC
176…276 V 3)
Inrush current
3.7 A
Length
330.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Max. ECG no. on circuit breaker 10 A (B)
7
Max. ECG no. on circuit breaker 16 A (B)
11
Max. ECG no. on circuit breaker 25 A (B)
17
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
85 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
320,0 mm
Networked standby power for CLS
< 0.50 W
No-load proof
Yes
Nominal output power
210 W 1)
Nominal output voltage
24.7 V 2)
Nominal voltage
230…240 V
Nominal wattage
210.00 W
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
> 0.95
Power loss in stand-by mode
< 0.5 W
Product recyclability
Mostly recyclable product 1)
Product weight
1415.00 g
Protection class
1
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to EN 61347-2-
Suitable for fixtures with prot. class
I
Surge capability (L-N)
6 kV
Surge capability (L/N-Ground)
8 kV
Temperature range at storage
-40…+85 °C
Total harmonic distortion
< 5 %
Type of connection, output side
Wires
Type of protection
IP66/IP67
U-OUT (working voltage)
24.7 V
Width
69.00 mm
Wire preparation length, input side
90 mm
Wire preparation length, output side
90 mm
