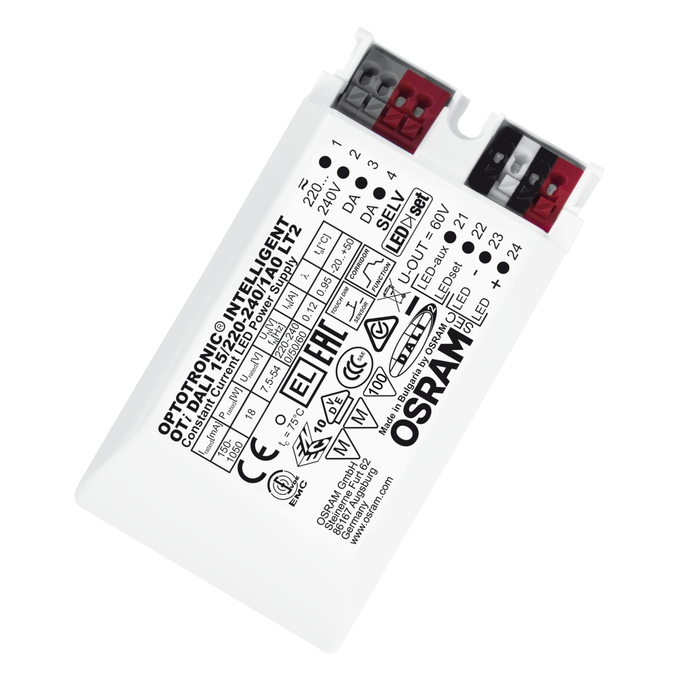

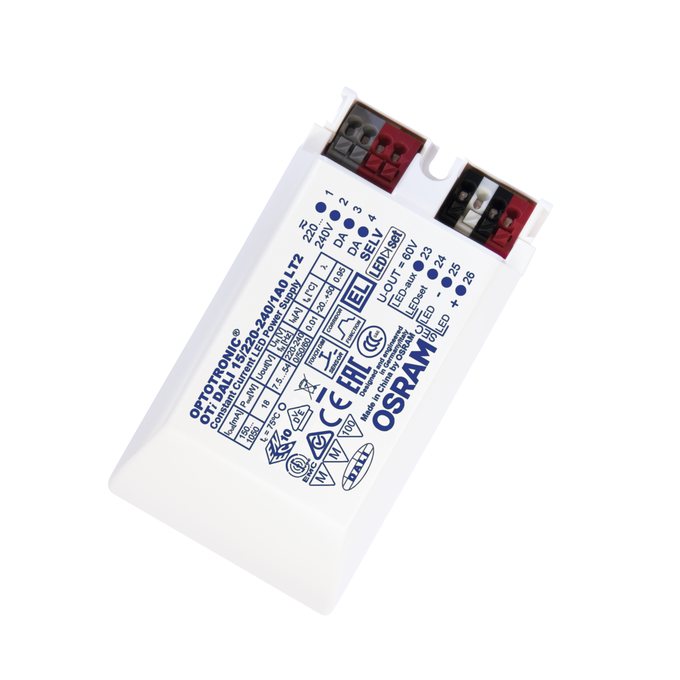

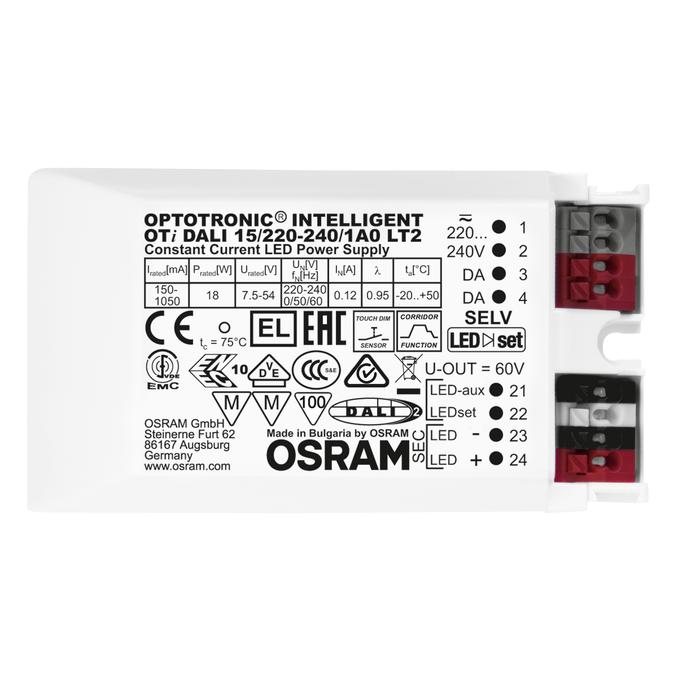

OTi DALI 15/220…240/1A0 LT2
4052899324879
Product benefits
- Versatile DALI window driver due to flexible output characteristic
- Very high efficiency
- Protection of the system thanks to thermal management and Smart Control
- High-quality dimming of 1…100 % by amplitude dimming Versatile scope of application due to OSRAM DALI Technology:
- Easy to use in corridors and restrooms because of three-level Corridor function
- Touch DIM application: easy to control via pushbutton or sensor
- Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
- Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
- Feedback of power consumption and operating hours (Fit for SMART GRID)
- Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for use in luminaires with flexible current setting (DALI, CLO, LEDset)
- Suitable for indoor SELV installations
- Suitable for luminaires of protection classes I and II
- Suitable for downlights, spotlights and LED panels
- Installation via Cable Clamp Kit possible (depending on version of product)
- Supply voltage: 220…240 V
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Line voltage: 198…264 V
- Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384
- RI suppression: to EN 55015/CISPR 15
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
- Lifetime: up to 100,000 h
- Type of protection: IP20
- Independent connection via through-looping (except OTi DALI 15)
Areas of application
Product features
Ambient temperature range
-20…+50 °C
Approval marks – approval
ENEC
Body material
Plastic
Cable cross-section, input side
0.2…1.5 mm² 1)
Cable cross-section, output side
0.2…1.5 mm² 1)
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
2,4 W
Dimmable
Yes
Dimming interface
DA
Dimming range
1…100 % 1)
ECG efficiency
88 % 7)
ECG lifetime
50000
Encapsulated
No
Galvanic isolation
SELV
GTIN
4052899324879
Height
30.00 mm
Input voltage AC
198…264 V 3)
Input voltage DC
176…276 V
Inrush current
5 A
Length
95.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
82
Max. ECG no. on circuit breaker 16 A (B)
130
Max. ECG no. on circuit breaker 25 A (B)
-
Max.housing temperature in case of fault
100 °C
Maximum temperature at tc test point
75 °C 1)
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
No-load proof
Yes
Nominal current
0.12 A
Nominal output current
150…1050 mA 4)
Nominal output power
18 W 1)
Nominal output voltage
7,5…54 V 2)
Nominal voltage
220…240 V
Nominal wattage
18.00 W
Output current tolerance
±3 %
Output ripple current (100 Hz)
< 2 % 5)
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 2)
Power factor λ
0.95
Power loss in stand-by mode
≤0,27 W
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
100.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to EN 61347
Suitable for emergency lighting
Yes
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-25…85 °C
Total harmonic distortion
< 10 % 6)
Type of connection, output side
Push terminal
Type of protection
IP20
U-OUT (working voltage)
60 V
Width
53.00 mm
Wire preparation length, input side
8.0…9.0 mm
Wire preparation length, output side
8.0…9.0 mm
