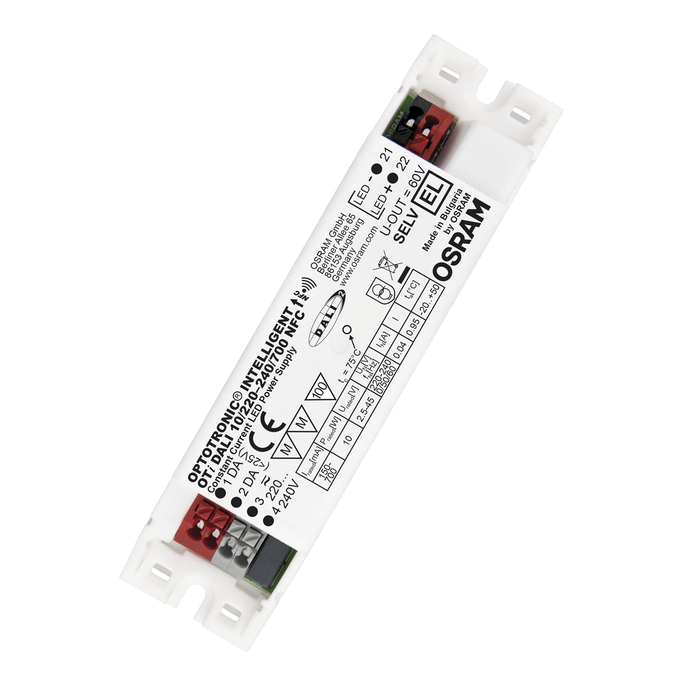

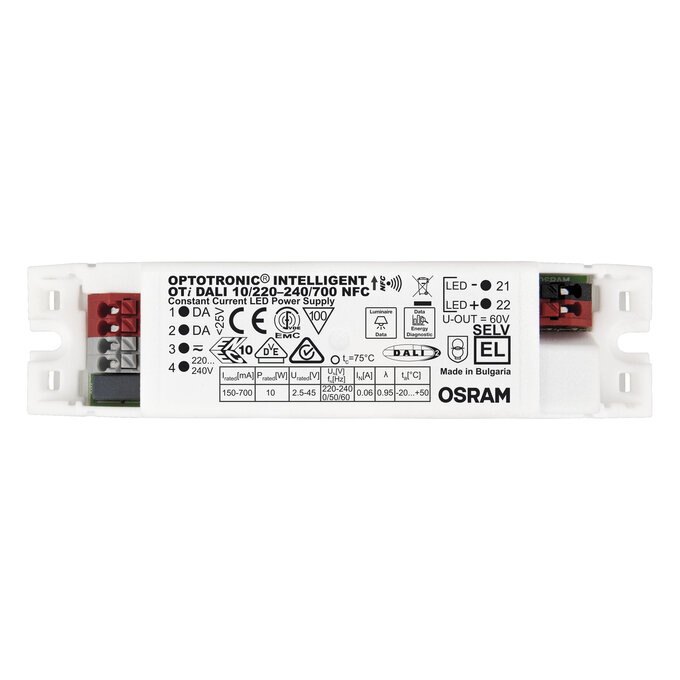

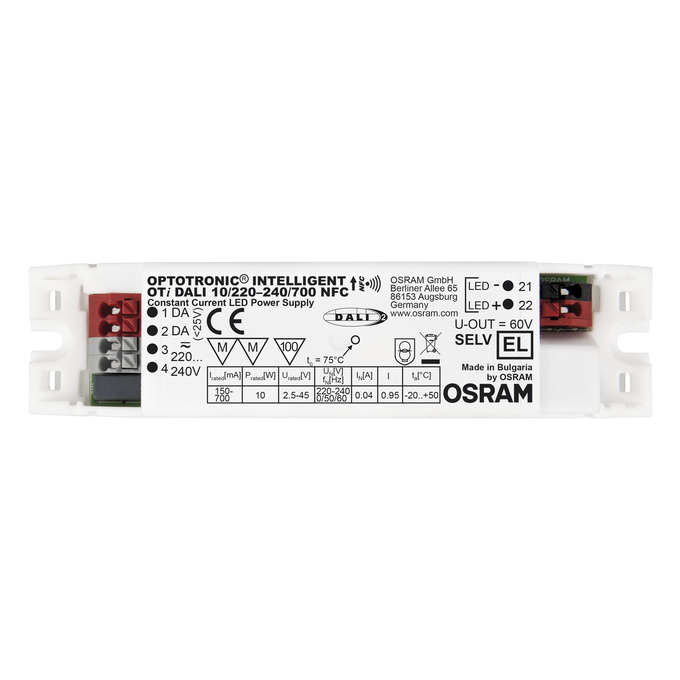

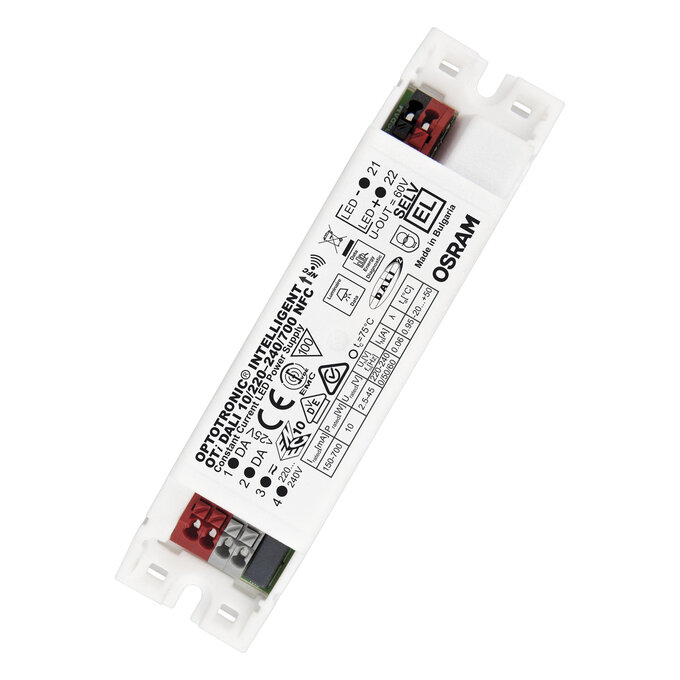

OTi DALI 10/220…240/700 NFC
4062172143899
Product benefits
- Versatile DALI window driver due to flexible output characteristic
- Locking and unlocking of luminaire/driver data
- Easy and fast output current setting via NFC
- Very high efficiency
- High-quality dimming of 1…100 % by amplitude dimming
- DALI-2 certified incl. Parts 251, 252, 253
Areas of application
- Suitable for downlights, spotlights and LED panels
- Suitable for use in luminaires with flexible current setting
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for indoor SELV installations
- Suitable for luminaires of protection classes I and II
Product features
- Supply voltage: 220…240 V
- Line frequency: 0 Hz, 50…60 Hz
- Line voltage: 198…264 V
- According to EN 61347-1, 61347-2-13, 62384
- RI suppression according to EN 55015:2007+A1:2007/CDN
- Immunity according to EN 61547
- Type of protection: IP20
Ambient temperature range
-20…+50 °C
Approval marks – approval
ENEC
Body material
Plastic
Cable cross-section, input side
0.2…1.5 mm² 1)
Cable cross-section, output side
0.2…1.5 mm² 1)
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
3,5 W
Dimmable
Yes
Dimming interface
DALI-2
Dimming range
1…100 % 1)
ECG efficiency
82 % 9)
ECG lifetime
50000
Encapsulated
No
Flickering metric (Pst LM)
≤1
GTIN
4062172143899
Height
21.00 mm
Input voltage AC
198…264 V 3)
Input voltage DC
176…276 V
Inrush current
< 5 A 5)
Length
124.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
0/50/60 Hz
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
80
Max. ECG no. on circuit breaker 16 A (B)
130
Max. ECG no. on circuit breaker 25 A (B)
-
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
75 °C 1)
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
115,0 mm
Networked standby power for CLS
≤0.15 W
No-load proof
Yes
Nominal output current
150…700 mA 4)
Nominal output power
10 W 1)
Nominal output voltage
2.5…45 V 2)
Nominal voltage
220…240 V
Nominal wattage
10.00 W
Output current tolerance
±3 %
Output ripple current (100 Hz)
< 2 % 6)
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 2)
Power factor λ
> 0.98 8)
Power loss in stand-by mode
≤0.15 W
Product recyclability
Mostly recyclable product 1)
Product weight
58.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to EN 61347
Stroboscope effect metric (SVM)
≤0.4
Suitable for emergency lighting
Yes
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-40…+85 °C
Total harmonic distortion
15 % 7)
Type of connection, output side
Push terminal
Type of protection
IP20
U-OUT (working voltage)
60 V
Width
31.00 mm
Wire preparation length, input side
8.0…9.1 mm
Wire preparation length, output side
8.0…9.1 mm
