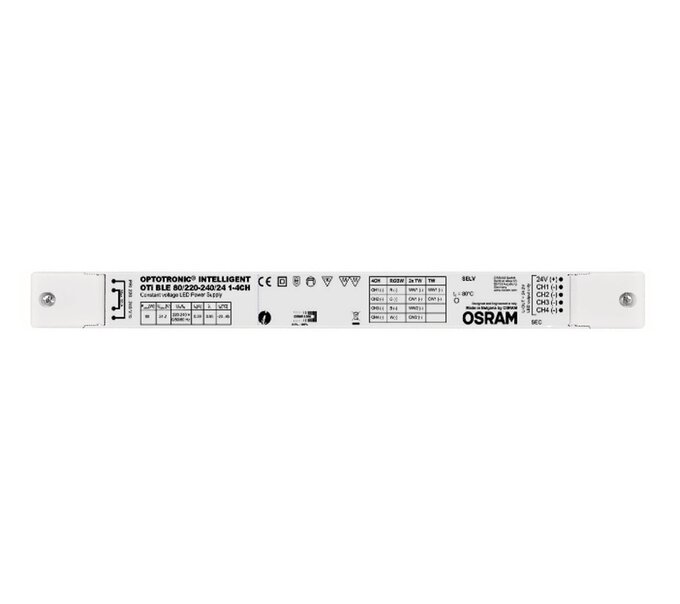

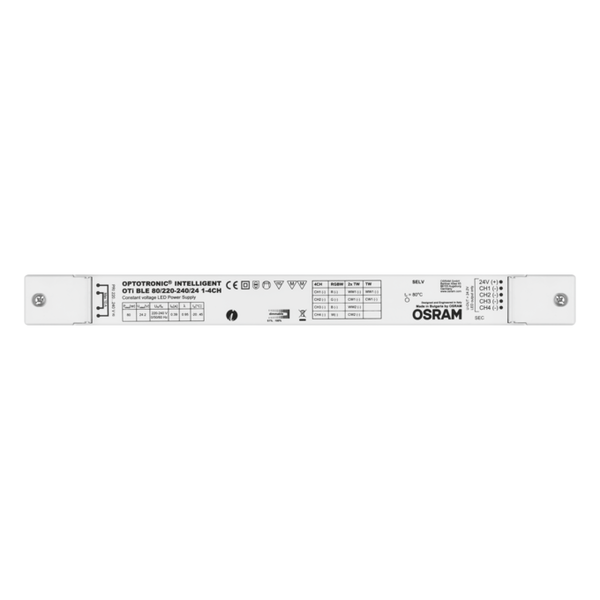

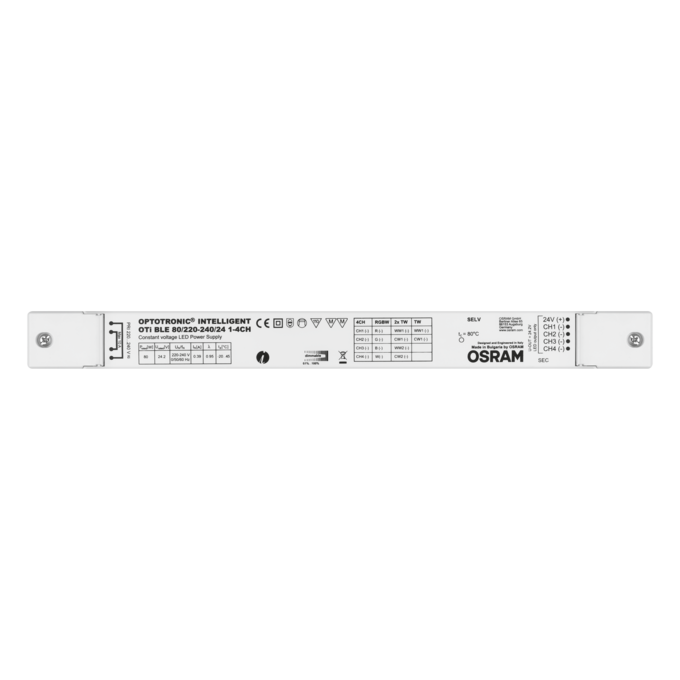

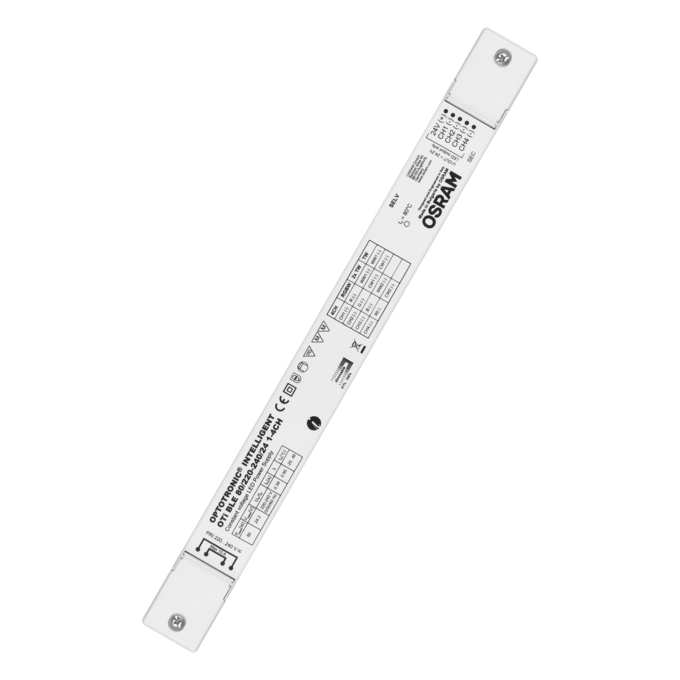

OTI BLE 80/220…240/24 1…4 CH
4062172046558
Product benefits
- Power supply and control of white, Tunable White, Tunable Warm White, Dim to Warm
- Power supply and control of RGB and RGBW LED modules
- Driver with integrated CASAMBI lighting control system
- Slim form factor for installation in light boxes
Areas of application
- Suitable for indoor installations
- Shops and hospitality: retail, hotels, restaurants
- Museums, residential buildings
Product features
- 80 W/24 V LED driver, 1–4 channels
- Power metering on the app interface
- Lighting wireless Bluetooth Mesh network, up to 127 devices
- Different light profiles to customize the application
- 2 KHz PWM control unit
Ambient temperature range
-20…+45 °C
Approval marks – approval
V
Body material
Plastic
Cable cross-section, input side
0,5…2,5 mm²
Cable cross-section, output side
0.2…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
Yes
Dimming interface
Bluetooth CASAMBI
Dimming range
0.4…100 %
ECG efficiency
93 %
ECG lifetime
50000 h
Encapsulated
Yes
Galvanic isolation
SELV
GTIN
4062172046558
Height
22.00 mm
Input voltage AC
198…264 V
Input voltage DC
176…276 V
Inrush current
48 A
Length
346.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Max. ECG no. on circuit breaker 10 A (B)
7
Max. ECG no. on circuit breaker 16 A (B)
11
Max. ECG no. on circuit breaker 25 A (B)
17
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
80 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
303 mm
Networked standby power for CLS
< 0.50 W
No-load proof
Yes
Nominal output power
80 W
Nominal output voltage
24 V
Nominal voltage
220…240 V
Nominal wattage
80.00 W
Operating frequency
50/60 Hz
Overheating protection
Reversible
Overload protection
Reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
0.98
Power loss in stand-by mode
< 0.5 W
Product recyclability
Mostly recyclable product 1)
Product weight
191.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Reversible
Surge capability (L-N)
1 kV
Temperature range at storage
-40…+85 °C
Total harmonic distortion
< 5 %
Type of connection, output side
Screw terminal
Type of protection
IP20
U-OUT (working voltage)
24.2 V
Width
32.00 mm
Wire preparation length, input side
6,0 mm
Wire preparation length, output side
5,0 mm
