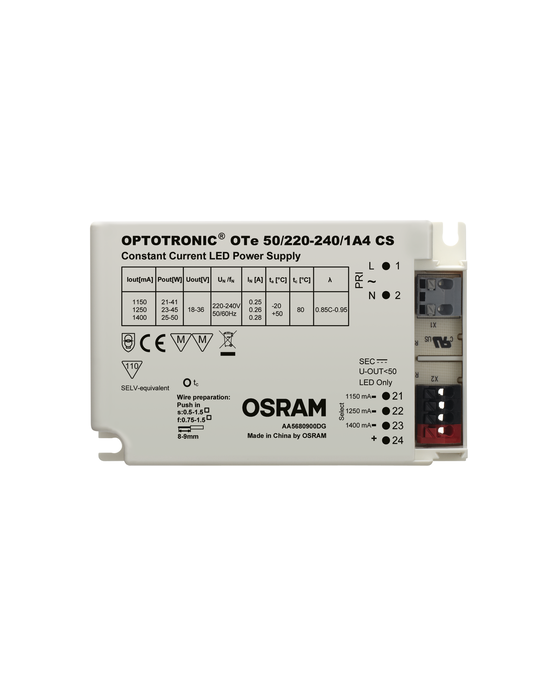

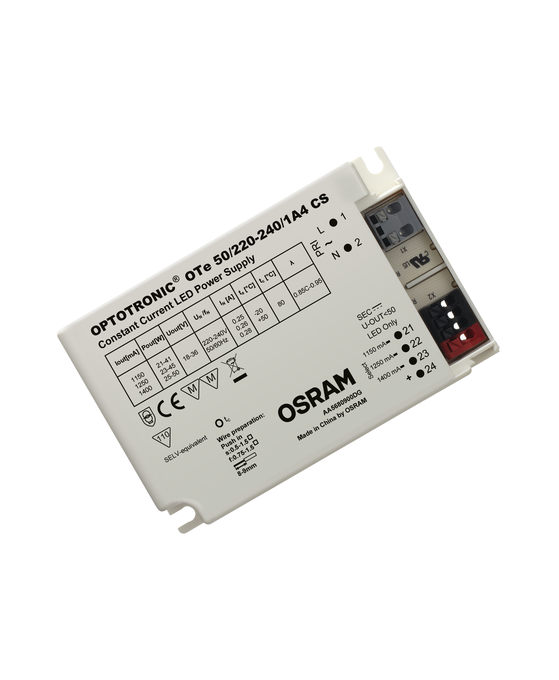

OTe 50/220…240/1A4 CS
4052899917583
Product benefits
- Versatile scope of application due to output power range of up to 54 W
- Efficient and reliable
Areas of application
- Suitable for use in luminaires with flexible current setting (Tri-Tap)
- Suitable for indoor SELV installations
- Suitable for luminaires of protection classes I and II
- Suitable for downlights, spotlights and LED panels

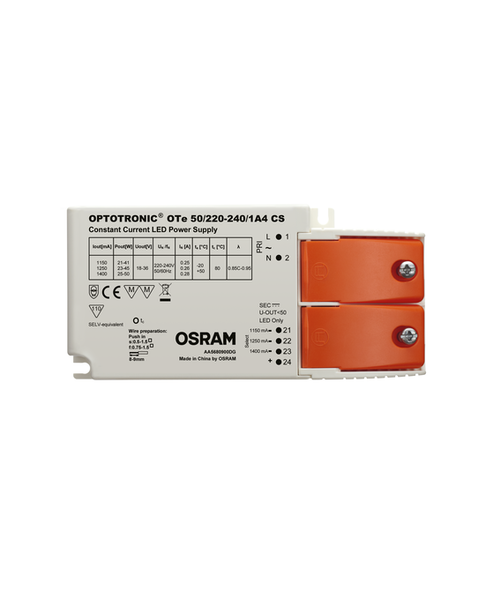

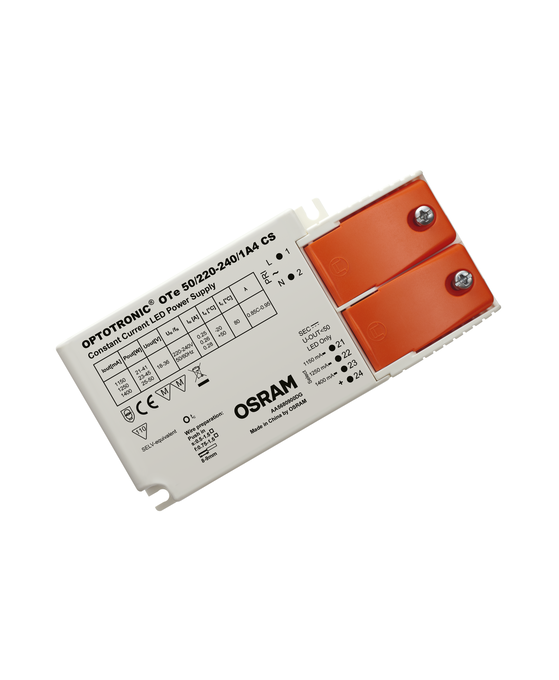

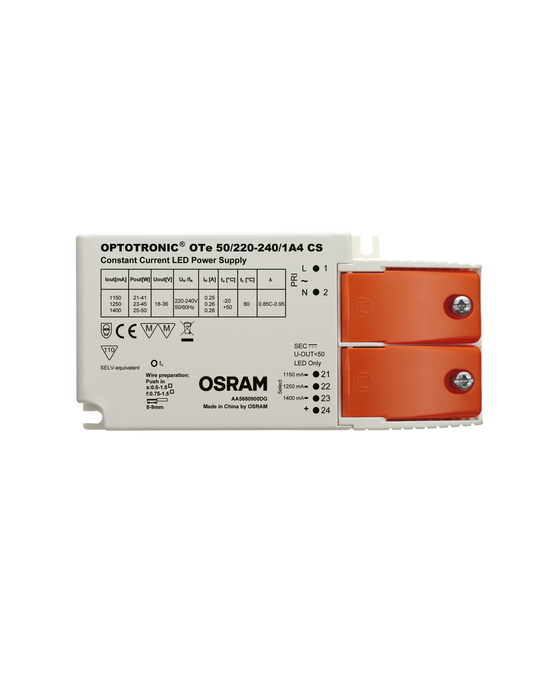

- Independent mounting via Cable Clamp Kit possible
Product features
- Supply voltage: 220…240 V
- Line frequency: 50 Hz | 60 Hz
- Line voltage: 198…264 V
- According to EN 61347-1, 61347-2-13, 62384
- RI suppression: to EN 55015/CISPR 15
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
- Lifetime: up to 50,000 h
- Independent connection via through-looping (depending on version of product)
Ambient temperature range
-20…+50 °C
Approval marks – approval
ENEC
Body material
Plastic
Cable cross-section, input side
0.5…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
7.5 W
Dimmable
No
ECG efficiency
87 % 6)
ECG lifetime
50000
Encapsulated
No
Galvanic isolation
SELV
GTIN
4052899917583
Height
29.50 mm
Input voltage AC
198…264 V 3)
Inrush current
16 A
Length
103.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
15
Max. ECG no. on circuit breaker 16 A (B)
25
Max. ECG no. on circuit breaker 25 A (B)
-
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
80 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
94,0 mm
No-load proof
Yes
Nominal output current
1150
Nominal output power
50 W 1)
Nominal output voltage
18…36 V 2)
Nominal voltage
220…240 V
Nominal wattage
50.00 W
Output current tolerance
±5 %
Output ripple current (100 Hz)
< 25 % 5)
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
0.95
Product recyclability
Mostly recyclable product 1)
Product weight
183.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to IEC 61347
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
1 kV
Temperature range at storage
-25…75 °C
Total harmonic distortion
< 20 %
Type of connection, output side
Push terminal
Type of protection
IP20
U-OUT (working voltage)
50 V
Width
67.00 mm
Wire preparation length, input side
8.0…9.0 mm
Wire preparation length, output side
8.0…9.0 mm
