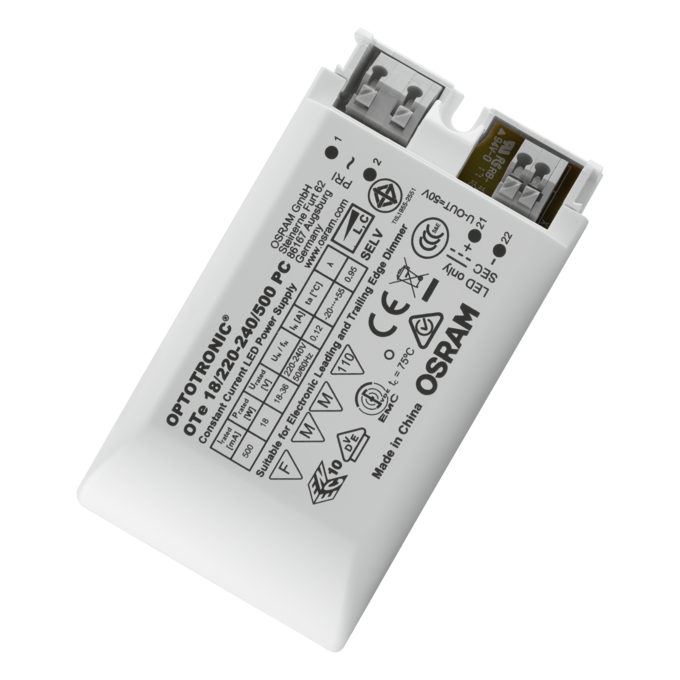

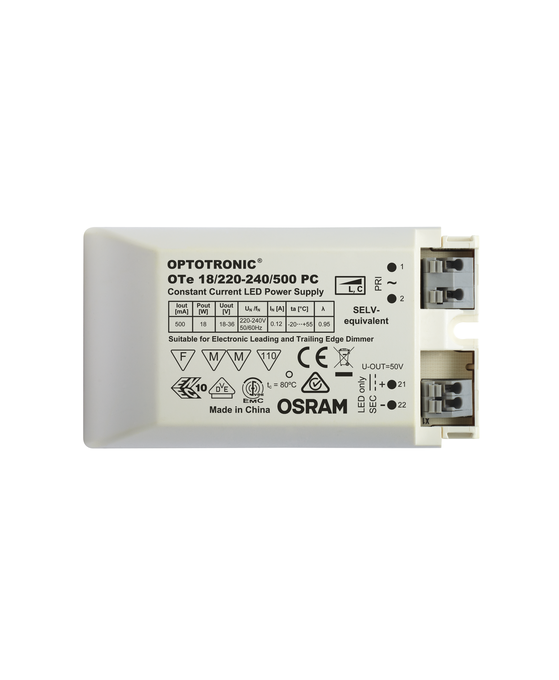

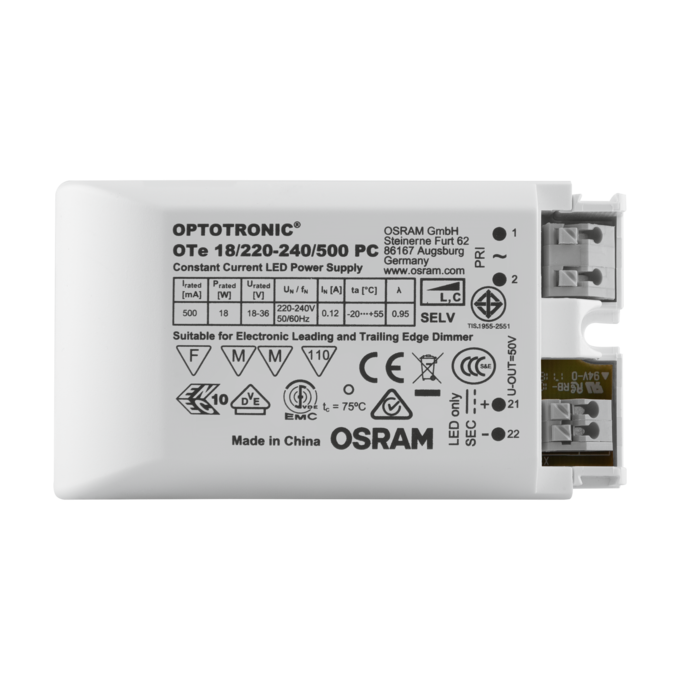

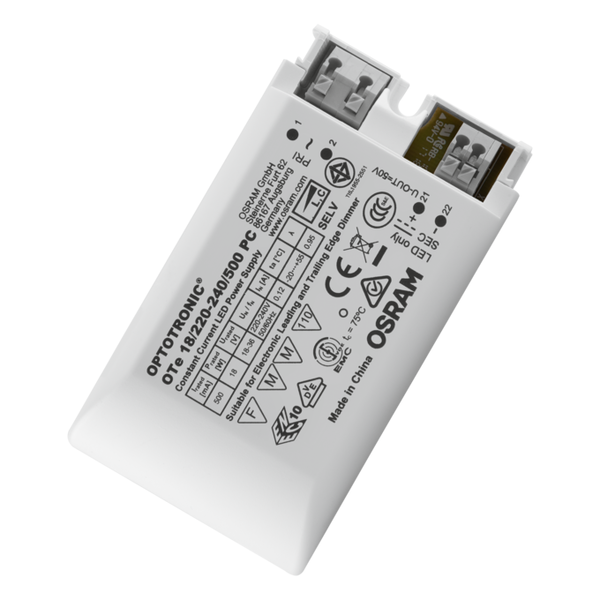

OTe 18/220…240/500 PC
4052899105362
Product benefits
- Compact housing for mounting in very tight spaces
- Compatible with the most common leading-edge and trailing-edge phase dimmers
Areas of application

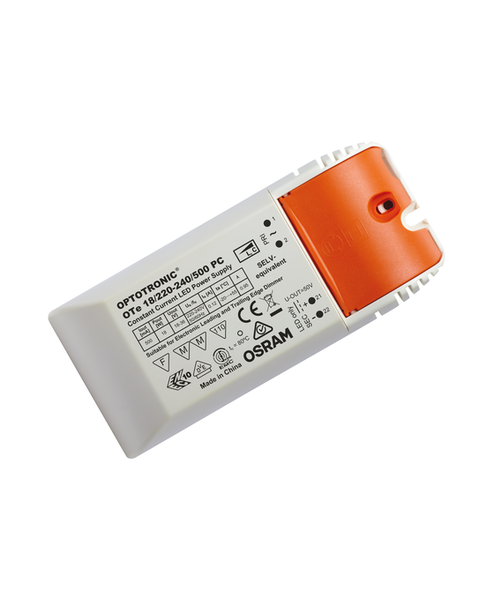

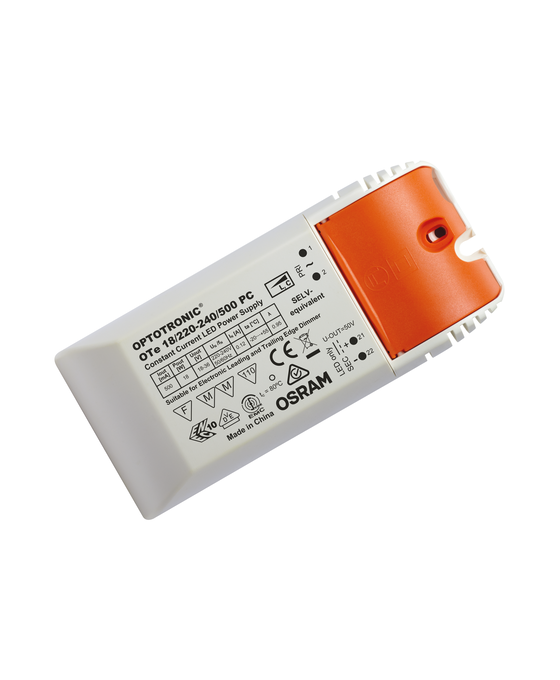

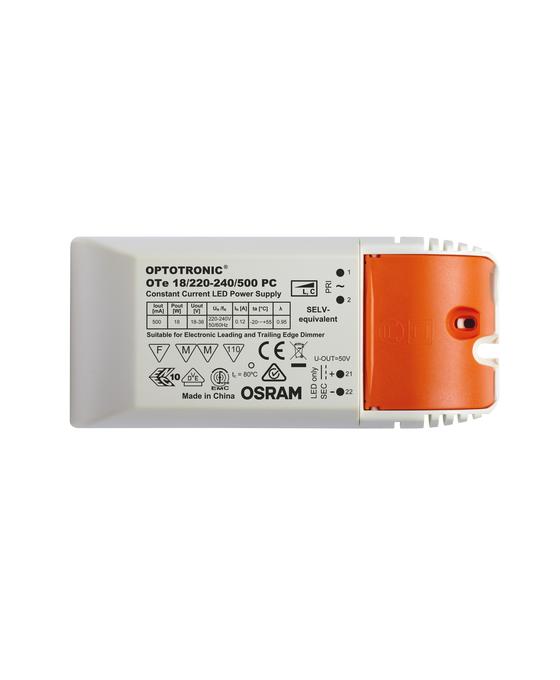

- Optional cable clamp E-style for independent mounting
- Suitable for indoor installations
- Suitable for indoor SELV installations
Product features
- Dimmable via leading edge/trailing edge
- Type of protection: IP20
Ambient temperature range
-20…+55 °C
Body material
Plastic
Cable cross-section, input side
0.75…1.5 mm² 1)
Cable cross-section, output side
0.5…1.5 mm² 1)
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
3,0 W 9)
Dimmable
Yes
Dimming interface
Phase Cut 1)
Dimming range
10…100 %
ECG efficiency
86 % 8)
ECG lifetime
50000 h 1)
Encapsulated
No
Flickering metric (Pst LM)
≤1
Galvanic isolation
SELV
GTIN
4052899105362
Height
30.00 mm
Input voltage AC
198…264 V 3)
Inrush current
5 A 5)
Length
95.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
53
Max. ECG no. on circuit breaker 16 A (B)
84
Max. ECG no. on circuit breaker 25 A (B)
-
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
75 °C 1)
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
No-load proof
Yes
Nominal output current
500 mA 4)
Nominal output power
18 W 1)
Nominal output voltage
18…36 V 2)
Nominal voltage
220…240 V
Nominal wattage
18.00 W
Output current tolerance
±10 %
Output ripple current (100 Hz)
< 35 % 6)
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 2)
Power factor λ
0.95 7)
Product recyclability
Mostly recyclable product 1)
Product weight
93.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to IEC 613
Stroboscope effect metric (SVM)
≤0.6
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
1 kV
Temperature range at storage
-25…75 °C
Total harmonic distortion
15 %
Type of connection, output side
Push terminal
Type of protection
IP20
U-OUT (working voltage)
60 V
Width
53.00 mm
Wire preparation length, input side
8.0…9.0 mm
Wire preparation length, output side
8.0…9.0 mm
