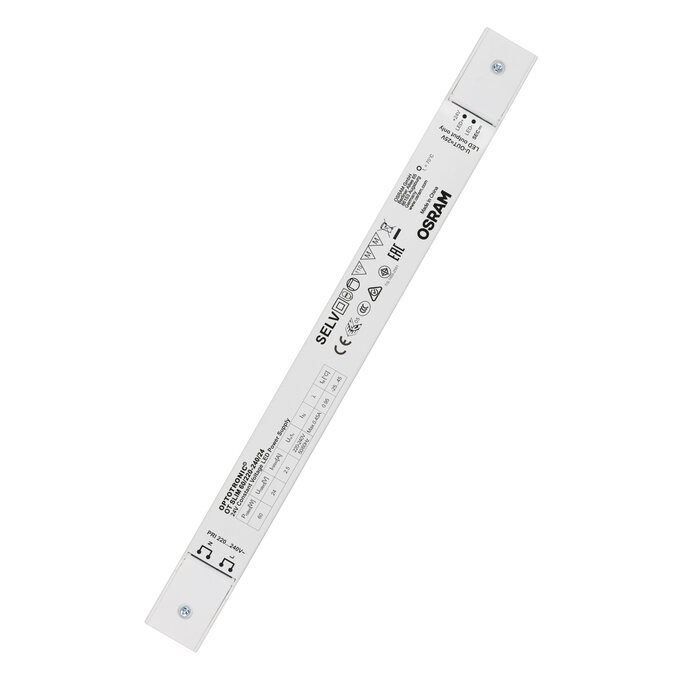

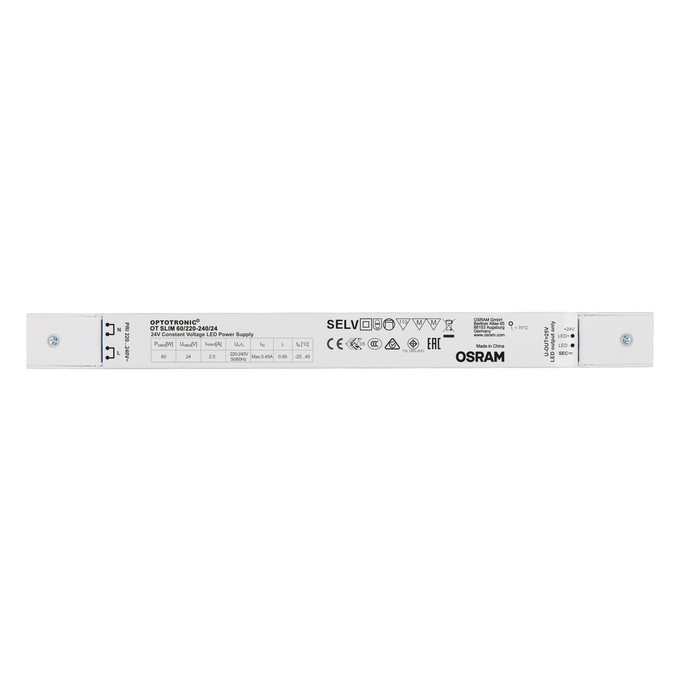

OT SLIM 60/220-240/24
4062172135856
Product benefits
- Installation in cold and hot environments
- Very stable output power
- High electronical reversible short-circuit, overload, overtemperature protection
- Independent installation possible
Areas of application
- Facades, public squares, cruise ships
- Signage
- Suitable for indoor and outdoor installations
Product features
- Type of protection: IP20
- Wide operating temperature range: -20…+50 °C
- Lifetime: up to 50,000 h (temperature at max. tc )
Ambient temperature range
-25…+45 °C
Body material
Plastic
Cable cross-section, input side
0.75…1.5 mm²
Cable cross-section, output side
0.75…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
8.2 W
Dimmable
No
ECG lifetime
50000 h
Galvanic isolation
SELV
GTIN
4062172135856
Height
17.50 mm
Input voltage AC
195.5…276 V
Input voltage DC
176…250 V
Inrush current
40 A
Length
338.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Max. ECG no. on circuit breaker 10 A (B)
11
Max. ECG no. on circuit breaker 16 A (B)
17
Max. ECG no. on circuit breaker 25 A (B)
16
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
70 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
290,0 mm
Nominal output power
60 W
Nominal output voltage
24.2 V
Nominal voltage
220…240 V
Nominal wattage
68.00 W
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
0.95
Product recyclability
Mostly recyclable product 1)
Product weight
170.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to IEC 61347-2-
Surge capability (L-N)
1 kV
Temperature range at storage
-40…+85 °C
Total harmonic distortion
< 5 %
Type of connection, output side
Screw terminal
Type of protection
IP20
U-OUT (working voltage)
24 V
Width
30.00 mm
Wire preparation length, input side
5,0 mm
Wire preparation length, output side
5,0 mm
