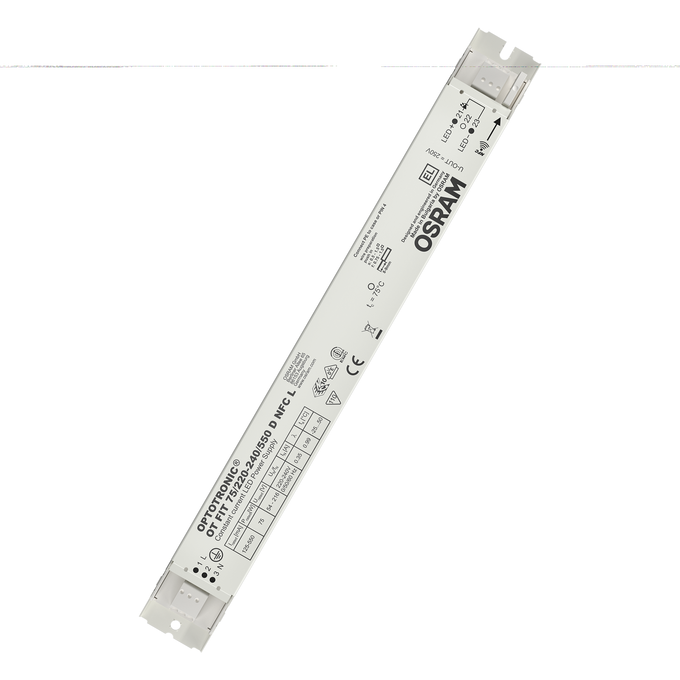

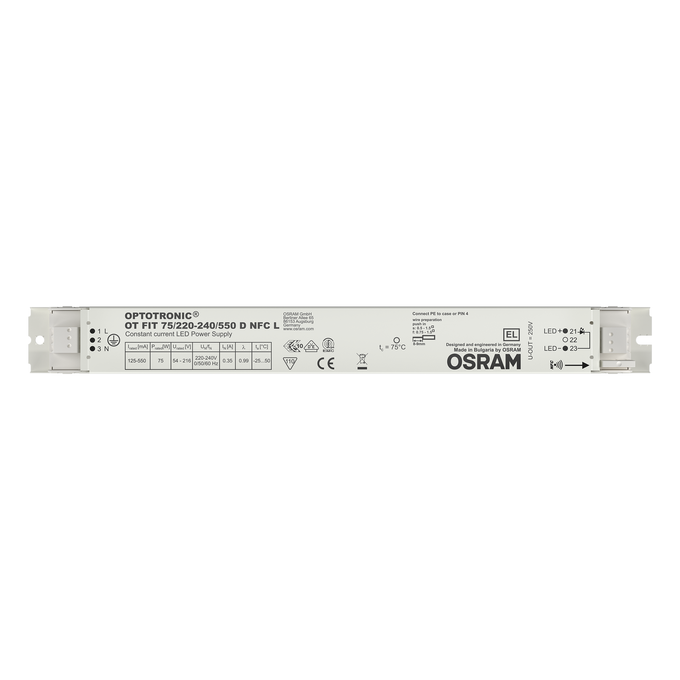

OT FIT 75/220…240/550 D NFC L
4052899990180
Product benefits
- Flexible and future-proof current setting via NFC (Near Field Communication)
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- High quality of light thanks to <1% output ripple current
- Very high efficiency
- Fulfill safety requirement due to overload, overtemperature protection
Areas of application
- Linear lighting for office, education, industry, storage areas and retail
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for installation in emergency lighting systems according to EN 60598-2-22
- Suitable for luminaires of protection class I
Product features
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Versatile scope of application due to output power range of up to 75 W
- Supply voltage: 220…240 V
- Available with output current range: up to 550 mA
- Non-isolated drivers
Ambient temperature range
-25…+50 °C
Body material
Metal
Cable cross-section, input side
0.5…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Metal
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Device power loss
7 W
Dimmable
No
ECG efficiency
up to 94 %
ECG lifetime
50000
Encapsulated
No
Galvanic isolation
Non isolated
GTIN
4052899990180
Height
21.00 mm
Input voltage AC
198…264 V
Input voltage DC
176…276 V
Inrush current
41 A
Length
280.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50/60 Hz
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
16
Max. ECG no. on circuit breaker 16 A (B)
26
Max. ECG no. on circuit breaker 25 A (B)
-
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
270,0 mm
No-load proof
Yes
Nominal output current
125…550 mA 1)
Nominal output power
10…75 W
Nominal output voltage
54…216 V
Nominal voltage
220…240 V
Nominal wattage
75.00 W
Output ripple current (100 Hz)
< 1 %
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
> 0.95
Product recyclability
Mostly recyclable product 1)
Product weight
180.00 g
Protection class
I
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to EN 61347
Suitable for fixtures with prot. class
I
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-40…+85 °C
Type of protection
IP20
Width
30.00 mm
Wire preparation length, input side
8.0…9.0 mm
