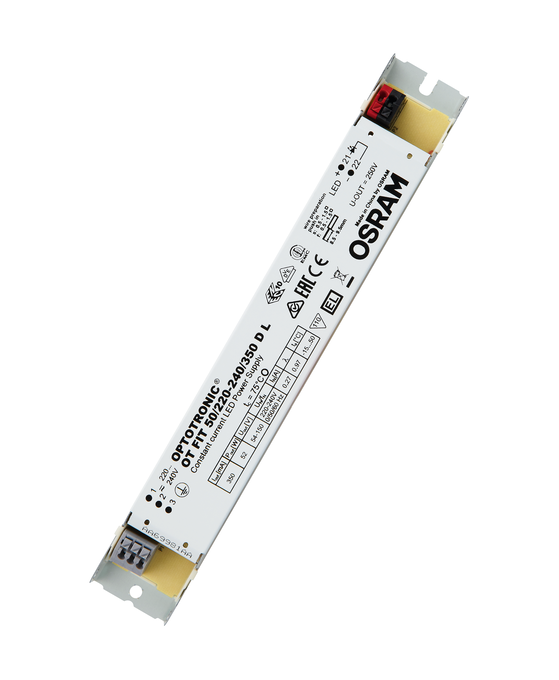

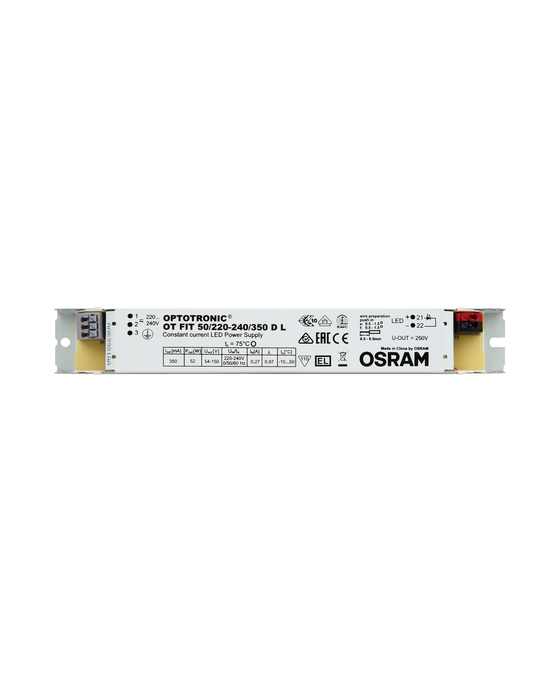

OT FIT 50/220…240/350 D L
4052899222595
Product benefits
- Small housing design
- Fixed current
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- High quality of light thanks to low output ripple current
- High efficiency
- Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
Areas of application
- Linear lighting for office, education, industry, storage areas and retail
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for installation in emergency lighting systems according to EN 60598-2-22
- Suitable for luminaires of protection class I
Product features
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Versatile scope of application due to output power range of up to 50 W
- Supply voltage: 220…240 V
- Available with output current range: up to 350 mA
- Non-isolated drivers
Ambient temperature range
-15…+50 °C
Body material
Metal
Cable cross-section, input side
0.5…1.5 mm² 1)
Cable cross-section, output side
0.5…1.5 mm² 1)
Casing material
Metal
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Device power loss
5 W 5)
Dimmable
No
ECG efficiency
> 90 % 4)
ECG lifetime
50000
Encapsulated
No
Flickering metric (Pst LM)
≤1
Galvanic isolation
Non isolated
GTIN
4052899222595
Height
21.00 mm
Input voltage AC
198…264 V 1)
Input voltage DC
176…276 V
Length
210.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0/50/60 Hz
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
35
Max. ECG no. on circuit breaker 16 A (B)
56
Max. ECG no. on circuit breaker 25 A (B)
-
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
75 °C 1)
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
200,0 mm
No-load proof
Yes
Nominal current
0.27 A
Nominal output current
350 mA 2)
Nominal output power
18.9…52.5 W
Nominal output voltage
54…150 V
Nominal voltage
220…240 V
Nominal wattage
52.50 W
Output current tolerance
±10 %
Output ripple current (100 Hz)
< 10 %
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 2)
Power factor λ
> 0.95 3)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
125.00 g
Protection class
1
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to EN 61347
Stroboscope effect metric (SVM)
≤0.4
Suitable for emergency lighting
Yes
Suitable for fixtures with prot. class
I
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-25…85 °C
Total harmonic distortion
< 20 %
Type of connection, output side
Push terminal
Type of protection
IP20
U-OUT (working voltage)
< 250 V
Width
30.00 mm
Wire preparation length, input side
8.5…9.5 mm
Wire preparation length, output side
8.5…9.5 mm
