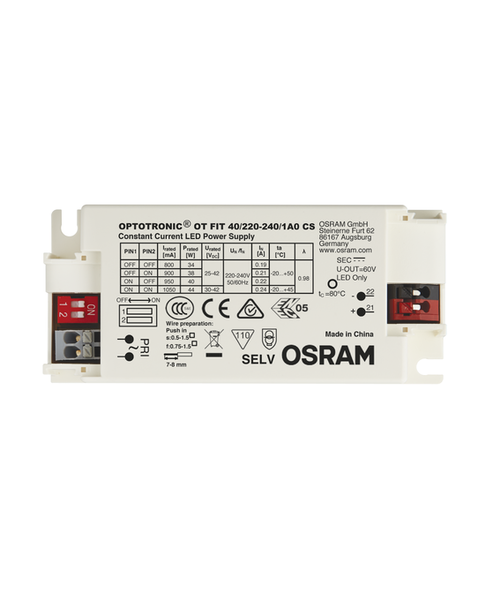

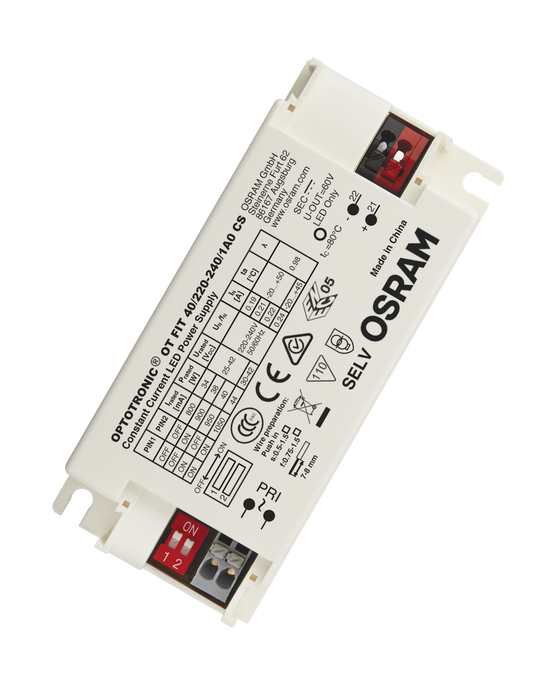

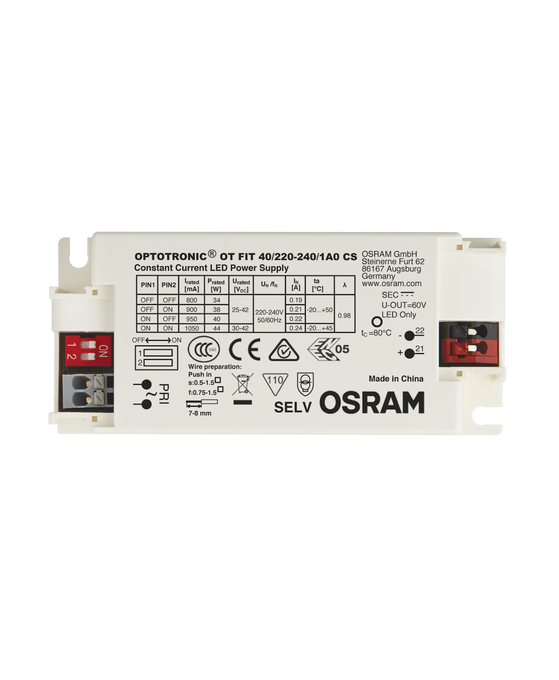

OT FIT 40/220…240/1A0 CS
4052899435650
Product benefits
- High quality of light thanks to low output ripple current
- High flexibility due to four different output currents
- Small housing for flexible luminaire designs
- High efficiency
Areas of application
- Suitable for downlights, spotlights and LED panels
- Suitable for luminaires of protection classes I and II
Product features
- Supply voltage: 220…240 V
- Line frequency: 50 Hz | 60 Hz
- Line voltage: 198…264 V
- According to EN 61347-1, 61347-2-13, 62384
- RI suppression: to EN 55015
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
- Lifetime: up to 50,000 h (temperature at Tc = 70 °C, max. 10 % failure rate)

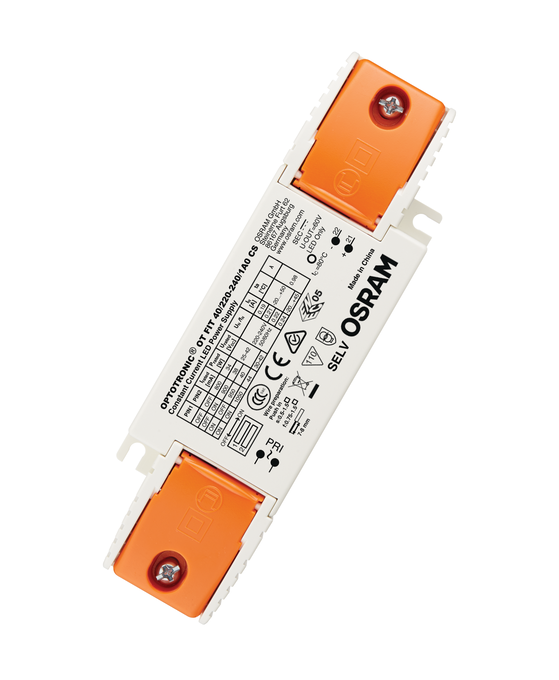

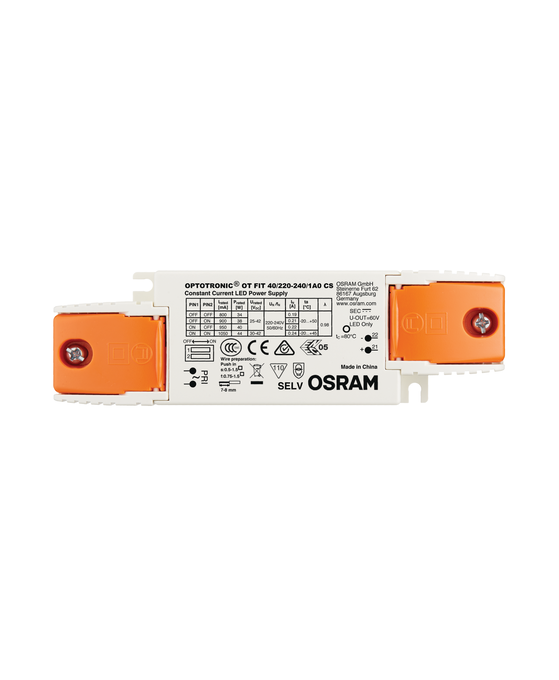

- Cable clamp kit for independent mounting
Ambient temperature range
-20…+50 °C
Approval marks – approval
C
Body material
Plastic
Cable cross-section, input side
0.5…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Device power loss
4,9 W 3)
Dimmable
No
ECG efficiency
90 % 2)
ECG lifetime
50000
Encapsulated
No
Galvanic isolation
SELV
GTIN
4052899435650
Height
29.50 mm
Input voltage AC
198…264 V
Inrush current
16 A
Length
97.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50/60 Hz
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
16
Max. ECG no. on circuit breaker 16 A (B)
25
Max. ECG no. on circuit breaker 25 A (B)
-
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
80 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
88,0 mm
No-load proof
Yes
Nominal current
0.19 A
Nominal output current
800
Nominal output power
20…44 W
Nominal output voltage
25…42 V
Nominal voltage
220…240 V
Nominal wattage
40.00 W
Output current tolerance
±7,5 %
Output ripple current (100 Hz)
< 5 %
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
0.98
Product recyclability
Mostly recyclable product 1)
Product weight
110.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to IEC 61347
Suitable for fixtures with prot. class
II
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-20…80 °C
Total harmonic distortion
< 10 % 1)
Type of connection, output side
Push terminal
Type of protection
IP20
U-OUT (working voltage)
60 V
Width
43.00 mm
Wire preparation length, input side
7…8 mm
Wire preparation length, output side
7…8 mm
