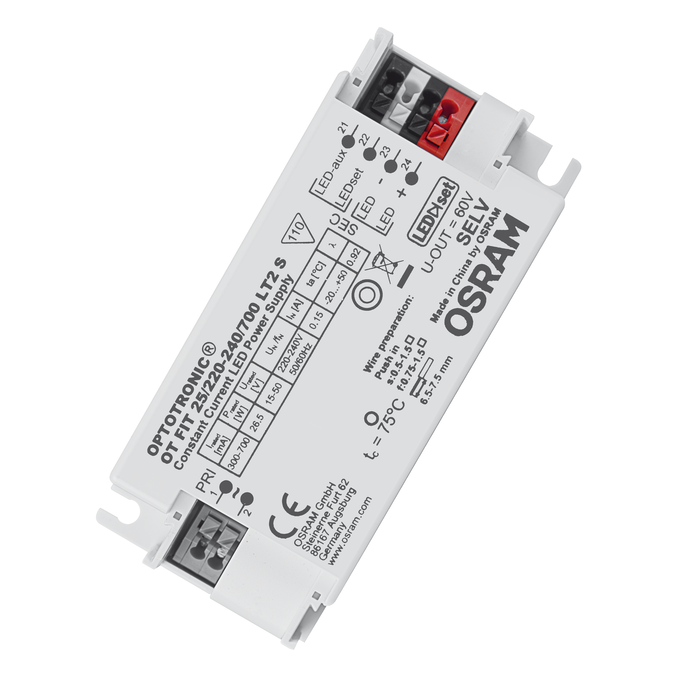

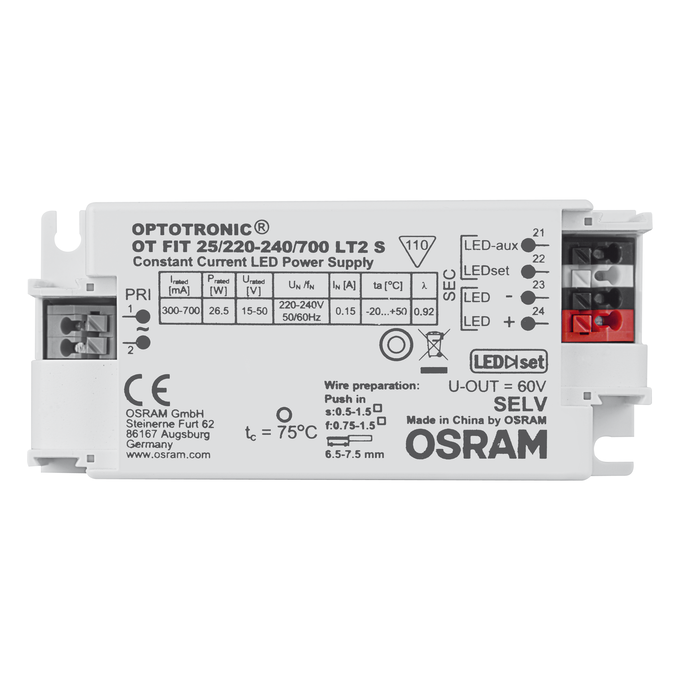

OT FIT 25/220…240/700 LT2 S
4052899957008
Product benefits
- Versatile scope of application due to output power range of up to 40 W
- Fulfill safety requirement due to overload, overtemperature protection
- High efficiency
- High quality of light thanks to <1% output ripple current
- Small housing for flexible luminaire designs
Areas of application
- Luminaires with flexible current setting (LEDset2)
- Suitable for indoor SELV installations
- Suitable for luminaires of protection classes I and II
- Suitable for downlights, spotlights and LED panels
- Independent mounting via Cable Clamp Kit possible
Product features
- Supply voltage: 220…240 V
- Line frequency: 50 Hz | 60 Hz
- Line voltage: 198…264 V
- According to EN 61347-1, 61347-2-13, 62384
- RI suppression: to EN 55015
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- Cable clamp kit for independent mounting
Ambient temperature range
-20…+50 °C
Approval marks – approval
CE
Body material
Plastic
Cable cross-section, input side
0.5…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Device power loss
4,5 W
Dimmable
No
ECG efficiency
86.5 %
ECG lifetime
100000 h 1)
Encapsulated
No
Galvanic isolation
SELV
GTIN
4052899957008
Height
29.50 mm
Input voltage AC
198…264 V
Inrush current
15 A
Length
97.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50/60 Hz
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
20
Max. ECG no. on circuit breaker 16 A (B)
30
Max. ECG no. on circuit breaker 25 A (B)
42
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
88,0 mm
No-load proof
Yes
Nominal current
0.13 A
Nominal output current
300…700 mA
Nominal output power
8.0…26.5 W
Nominal output voltage
15…50 V
Nominal voltage
220…240 V
Nominal wattage
26.50 W
Output current tolerance
±5 %
Output ripple current (100 Hz)
< 1 %
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
0.92
Product recyclability
Mostly recyclable product 1)
Product weight
95.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to IEC 61347
Suitable for emergency lighting
No
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-40…+85 °C
Total harmonic distortion
15 %
Type of connection, output side
Push terminal
Type of protection
IP20
U-OUT (working voltage)
60 V
Width
43.00 mm
Wire preparation length, input side
6,5…7,5 mm
Wire preparation length, output side
6,5…7,5 mm
