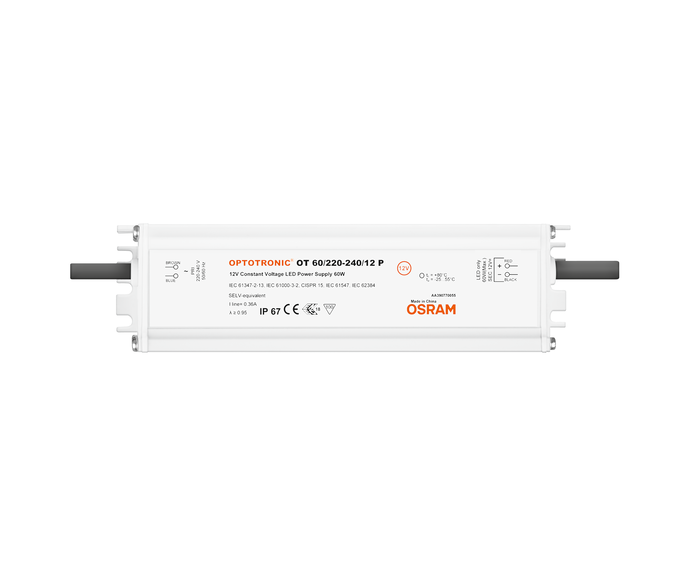

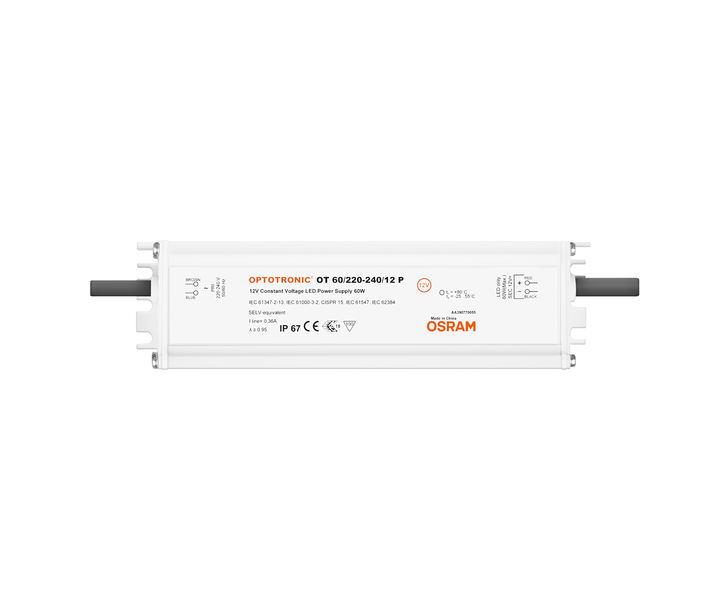

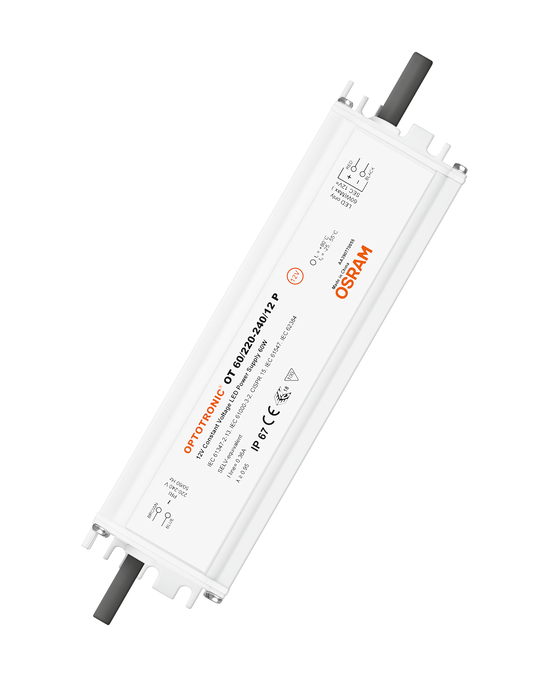

OT 60/220…240/12 P
4008321790811
Product benefits
- Versatile scope of application due to output power range of up to 300 W
- Very high efficiency
- IP rating: up to IP67
- High surge protection: up to 6 kV (L-N) / 6 kV (L/N-PE)
Areas of application
- Suitable for indoor and outdoor installations
- Ideal for mounting in very tight spaces
Ambient temperature range
-25…+55 °C
Body material
Metal
Cable cross-section, input side
1 mm² 1)
Cable cross-section, output side
1 mm² 1)
Casing material
Metal
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Device power loss
9 W
Dimmable
No
Dimming interface
Not dimmable
ECG efficiency
86 % 5)
ECG lifetime
50000 h 1)
Encapsulated
No
Galvanic isolation
SELV
GTIN
4008321790811
Height
34.00 mm
Input voltage AC
198…264 V 3)
Inrush current
35 A
Length
180.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50/60 Hz
Max. cable length to lamp/LED module
10 m
Max. ECG no. on circuit breaker 10 A (B)
11
Max. ECG no. on circuit breaker 16 A (B)
17
Max. ECG no. on circuit breaker 25 A (B)
-
Max.housing temperature in case of fault
100 °C
Maximum temperature at tc test point
80 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
171,0 mm
No-load proof
Yes
Nominal current
0.33 A
Nominal output power
60 W 1)
Nominal output voltage
12.5 V 2)
Nominal voltage
220…240 V
Nominal wattage
70.00 W
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
0.98 4)
Product recyclability
Mostly recyclable product 1)
Product weight
700.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to IEC 61347
Suitable for fixtures with prot. class
II
Surge capability (L-N)
3 kV
Temperature range at storage
-40…+85 °C
Total harmonic distortion
< 20 %
Type of protection
IP67
U-OUT (working voltage)
12.5 V
Width
50.00 mm
Wire preparation length, input side
10 mm
Wire preparation length, output side
10 mm
