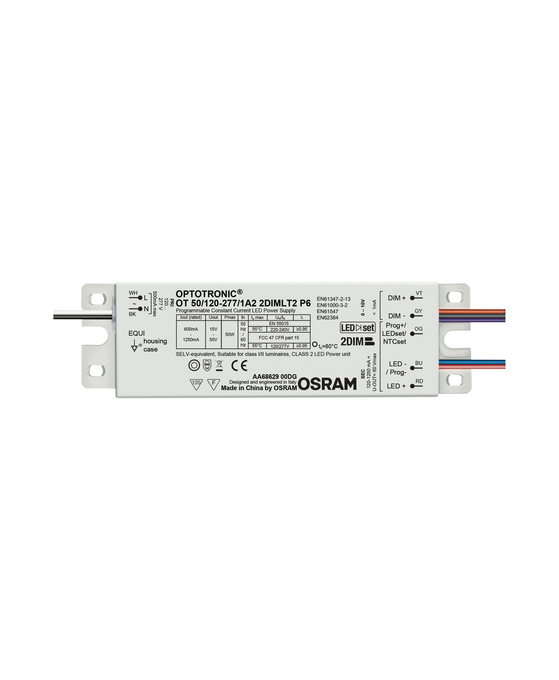

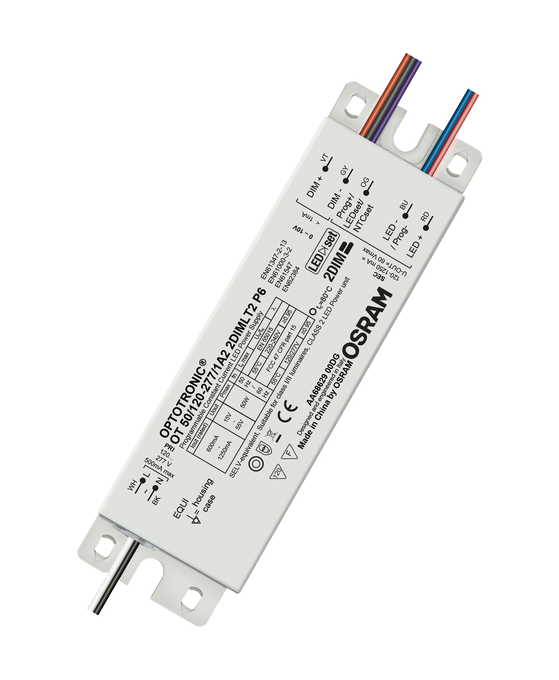

OT 50/120…277/1A2 2DIMLT2 P
4052899173804
Product benefits
- 2DIM functionality in one device (AstroDIM, 0…10 V)
- High surge protection: up to 6 kV (in protection class I or II)
- Fast programming without mains voltage
- High efficiency
- Great flexibility due to wide operating temperature range of -40…55 °C
- Protection through double isolation between mains input and LED output
- IP rating: IP64
Areas of application
- Street and urban lighting
- Industry
- Suitable for luminaires of protection classes I and II
Product features
- Available with different wattage: 50 W, 100 W, 110 W
- Input voltage: 120…277 V
- Available with output current range: up to 1,400 mA
- Flexible current setting with one additional wire (LEDset2)
- AstroDIM for autonomous dimming with five independent levels (astro mode)
- Isolated 0…10 V interface for unidirectional telemanagement systems
- Constant Lumen Output (CLO)
- Overtemperature protection with external NTC or LEDset2 interface
Equipment / Accessories
- OT Programmer hardware for configuration of 2DIM ECGs necessary
- Programmable via Tuner4TRONIC software
Ambient temperature range
-40…+55 °C 1)
Body material
Metal
Casing material
Metal
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
9.6 W 9)
Dimmable
Yes
Dimming interface
2D
Dimming range
30…100 %
ECG efficiency
86 % 8)
ECG lifetime
80000 h 1)
Encapsulated
Yes
Flickering metric (Pst LM)
≤1
Galvanic isolation
SELV
GTIN
4052899173804
Height
30.00 mm
Input voltage AC
108…305 V 2)
Inrush current
30 A 4)
Length
168.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Max. cable length to lamp/LED module
10 m
Max. ECG no. on circuit breaker 10 A (B)
11 10)
Max. ECG no. on circuit breaker 16 A (B)
17 10)
Max. ECG no. on circuit breaker 25 A (B)
28 10)
Max.housing temperature in case of fault
120 °C
Maximum temperature at tc test point
80 °C 2)
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
152,0 mm
No-load proof
Yes
Nominal current
0.26 A 3)
Nominal output current
600…1250 mA
Nominal output power
50 W 1)
Nominal output voltage
20…55 V
Nominal voltage
120…277 V
Nominal wattage
50.00 W
Output current tolerance
±5 % 5)
Output ripple current (100 Hz)
30 %
Overheating protection
Yes
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 3)
Power factor λ
0.95 7)
Product recyclability
Mostly recyclable product 1)
Product remark
No on/off switching of lamps possible via 0...10 V interface
Product weight
490.00 g
Protection class
I/II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Yes
Standards
Acc. to EN 61347
Stroboscope effect metric (SVM)
≤0.4
Surge capability (L-N)
6 kV 12)
Surge capability (L/N-Ground)
6 kV 11)
Temperature range at storage
-25…80 °C
Total harmonic distortion
15 % 6)
Type of connection, output side
Wires
Type of protection
IP64
U-OUT (working voltage)
60 V
Width
50.00 mm
Wire preparation length, input side
10 mm
Wire preparation length, output side
10 mm
