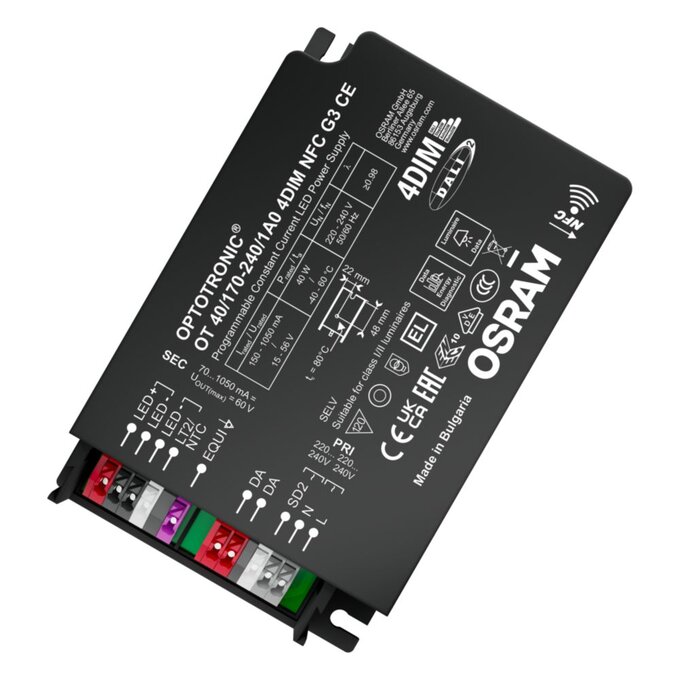

OT 40/170-240/1A0 4DIM NFC G3 CE
4062172218955
Product benefits
- 4DIM functionality in one device (StepDIM, AstroDIM, MainsDIM, DALI)
- DALI-2 certified incl. Parts 251, 252, 253
- Easy and fast wireless luminaire programming
- Very high efficiency
- High surge protection: up to 10 kV (in protection class I or II)
- Great flexibility due to wide operating temperature range of -40…55 °C or 60 °C
- High surge DALI protection: 1 kV
- Protection through double isolation between mains input and LED output
- Optimized NFC for programming from the top: easy accessibility in luminaires
Areas of application
- Street and urban lighting
- Industry
- Suitable for outdoor applications in luminaires with IP > 54
- Suitable for use in outdoor luminaires of protection class I and II
Product features
- Supply voltage: 220…240 V
- Wide current output range: 150 mA…1050 mA or 1500 mA
- Easy and fast wireless luminaire programming via NFC
- Flexible current setting with one additional wire (LEDset2)
- AstroDIM for autonomous dimming with five independent levels (astro, time mode)
- Allows for energy saving in twilight phases
- MainsDIM function for dimming via reduction of line voltage amplitude
- Isolated DALI interface for bidirectional telemanagement systems
- Standby power consumption: < 0.35 W
- Constant Lumen Output (CLO)
- Integrated customizable thermal management (Driver Guard)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-40…+60 °C
Approval marks – approval
C
Body material
Plastic
Cable cross-section, input side
0.2…1.5 mm²
Cable cross-section, output side
0.2…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Device power loss
4.5 W
Dimmable
Yes
Dimming interface
4D
Dimming range
10…100 %
ECG efficiency
90 % 8)
ECG lifetime
50000
Flickering metric (Pst LM)
≤1
Galvanic isolation
SELV
GTIN
4062172218955
Height
33.00 mm
Input voltage AC
170…264 V 2)
Input voltage DC
176…276 V 3)
Input voltage range
220…277 V
Inrush current
31 A 4)
Length
123.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0/50/60 Hz
Max. cable length to lamp/LED module
2,0 m 1)
Max. ECG no. on circuit breaker 10 A (B)
18
Max. ECG no. on circuit breaker 16 A (B)
30
Max. ECG no. on circuit breaker 25 A (B)
46
Max.housing temperature in case of fault
120 °C
Maximum temperature at tc test point
80 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
111,0 mm
Networked standby power for CLS
< 0.35 W
No-load proof
Yes
Nominal current
1.05 A
Nominal output current
150…1050 mA
Nominal output power
40 W 1)
Nominal output voltage
15…56 V
Nominal voltage
220…240 V
Nominal wattage
40.00 W
Output current tolerance
±3 % 5)
Output ripple current (100 Hz)
> 4 %
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5...95 % 1)
Power factor λ
0.99 7)
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
210.00 g
Protection class
I/II
Short-circuit protection
Automatic reversible
Standards
Acc. to EN 61347
Stroboscope effect metric (SVM)
≤0.4
Suitable for emergency lighting
Yes
Surge capability (L-N)
6 kV
Surge capability (L/N-Ground)
10 kV
Temperature range at storage
-40…+85 °C
Total harmonic distortion
> 5 % 6)
Type of connection, output side
Push terminal
Type of protection
IP20
U-OUT (working voltage)
60 V
Width
79.00 mm
Wire preparation length, input side
8.5…9.5 mm
Wire preparation length, output side
8.5…9.5 mm
