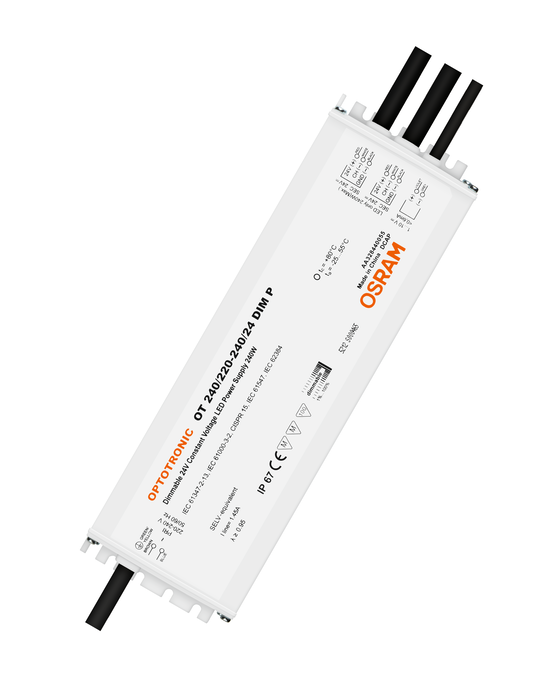

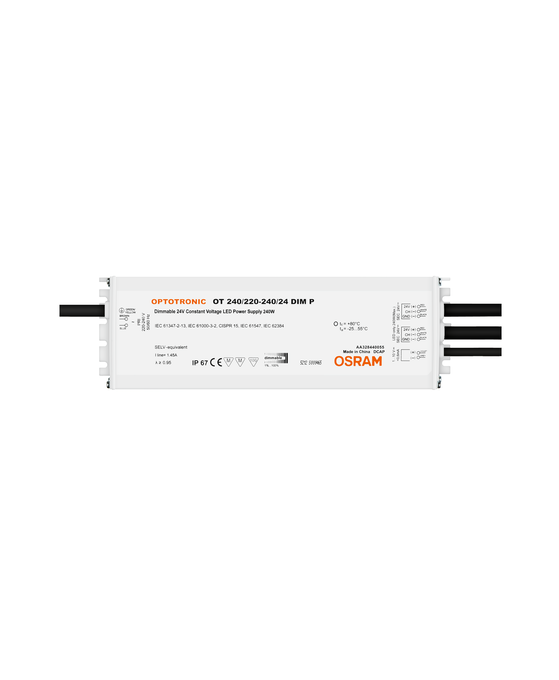

OT 240/220…240/24 DIM P
4008321981714
Product benefits
- Versatile 1…10 V window driver up to 240 W due to flexible output characteristic
- Very high efficiency and reliability
- High IP protection (IP67)
- High surge protection: up to 3 kV (L-N) / 6 kV (L/N-PE)
Areas of application
- Suitable for use in tight, flat luminaires or installation in suspended ceilings
- Suitable for indoor and outdoor SELV installations
Product features
- Dimmable via fully isolated 1...10 V interface
- Driver with output power range of up to 240 W
Ambient temperature range
-25…+55 °C
Body material
Metal
Cable cross-section, input side
1 mm² 1)
Cable cross-section, output side
1.5 mm² 1)
Casing material
Metal
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Device power loss
21 W 6)
Dimmable
Yes
Dimming interface
1…10 V 1)
Dimming range
3…100 %
ECG efficiency
92 % 5)
ECG lifetime
50000 h 1)
Encapsulated
No
Galvanic isolation
SELV
GTIN
4008321981714
Height
39.00 mm
Input voltage AC
198…264 V 3)
Inrush current
70 A
Length
250.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50/60 Hz
Max. cable length to lamp/LED module
10 m
Max. ECG no. on circuit breaker 10 A (B)
5
Max. ECG no. on circuit breaker 16 A (B)
8
Max. ECG no. on circuit breaker 25 A (B)
13
Max.housing temperature in case of fault
100 °C
Maximum temperature at tc test point
80 °C 1)
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
241,0 mm
No-load proof
Yes
Nominal current
1.1 A
Nominal output power
240 W 1)
Nominal output voltage
24 V 2)
Nominal voltage
220…240 V
Nominal wattage
240.00 W
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 2)
Power factor λ
0.95 4)
Power loss in stand-by mode
< 1.5 W
Product recyclability
Mostly recyclable product 1)
Product weight
1500.00 g
Protection class
1
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to IEC 61347
Suitable for fixtures with prot. class
I
Surge capability (L-N)
3 kV
Surge capability (L/N-Ground)
6 kV
Temperature range at storage
-40…85 °C
Total harmonic distortion
< 20 %
Type of connection, output side
Wires
Type of protection
IP67
U-OUT (working voltage)
24 V
Width
80.00 mm
Wire preparation length, input side
10…11 mm
Wire preparation length, output side
10…11 mm
