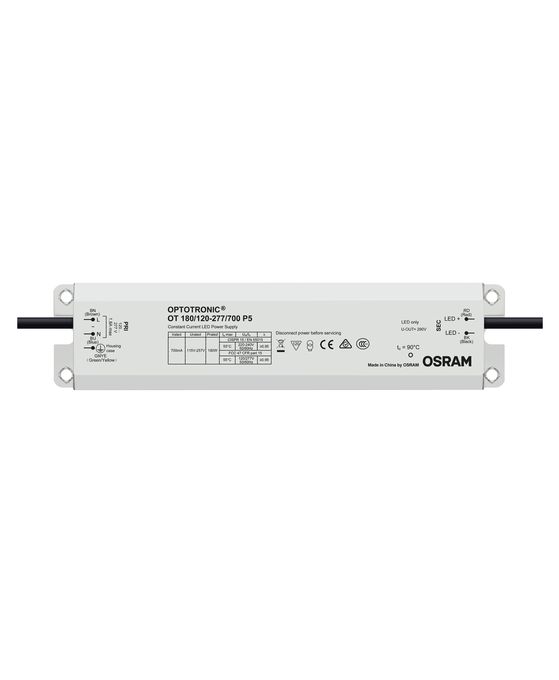

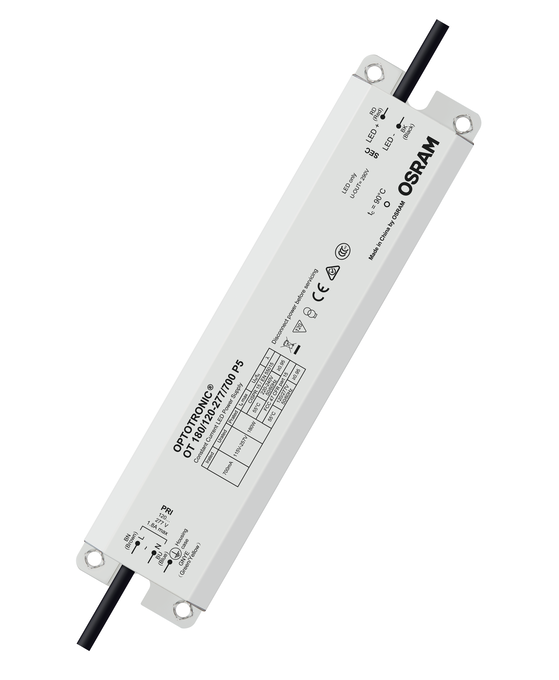

OT 180/120…277/700 P5
4052899259027
Product benefits
- High surge protection: up to 6 kV (L-N) / 6 kV (L/N-PE)
- High efficiency
- Great flexibility due to wide operating temperature range of -40…50 °C or 55 °C
- IP rating: IP65
Areas of application
- Street and urban lighting
- Industry
- Suitable for luminaires of protection class I
Product features
- Available with different wattage: 50 W, 100 W, 180 W, 250 W
- Input voltage: 120…277 V
- Output current: 700 mA
- Overtemperature protection
Ambient temperature range
-40…+55 °C
Body material
Metal
Cable cross-section, input side
0.75 mm²
Cable cross-section, output side
0.5 mm²
Casing material
Metal
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
18 W 9)
Dimmable
No
ECG efficiency
90 % 8)
ECG lifetime
80000 h 1)
Encapsulated
Yes
Galvanic isolation
basic
GTIN
4052899259027
Height
39.00 mm
Input voltage AC
108…305 V 2)
Inrush current
110 A 5)
Length
251.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Max. cable length to lamp/LED module
10 m
Max. ECG no. on circuit breaker 10 A (B)
4 10)
Max. ECG no. on circuit breaker 16 A (B)
7 10)
Max. ECG no. on circuit breaker 25 A (B)
12 10)
Max.housing temperature in case of fault
120 °C
Maximum temperature at tc test point
90 °C 1)
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
236,3 mm
No-load proof
Yes
Nominal current
0.86 A 3)
Nominal output current
700 mA 4)
Nominal output power
180 W 1)
Nominal output voltage
115…257 V
Nominal voltage
120…277 V
Nominal wattage
180.00 W
Output current tolerance
±5 %
Output ripple current (100 Hz)
30 %
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 2)
Power factor λ
0.95 7)
Product recyclability
Mostly recyclable product 1)
Product weight
1000.00 g
Protection class
III
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to IEC 61347
Suitable for fixtures with prot. class
I
Surge capability (L-N)
6 kV 11)
Surge capability (L/N-Ground)
6 kV
Temperature range at storage
-25…80 °C
Total harmonic distortion
10 % 6)
Type of connection, output side
Wires
Type of protection
IP65
U-OUT (working voltage)
290 V
Width
60.00 mm
Wire preparation length, input side
10 mm
Wire preparation length, output side
10 mm
