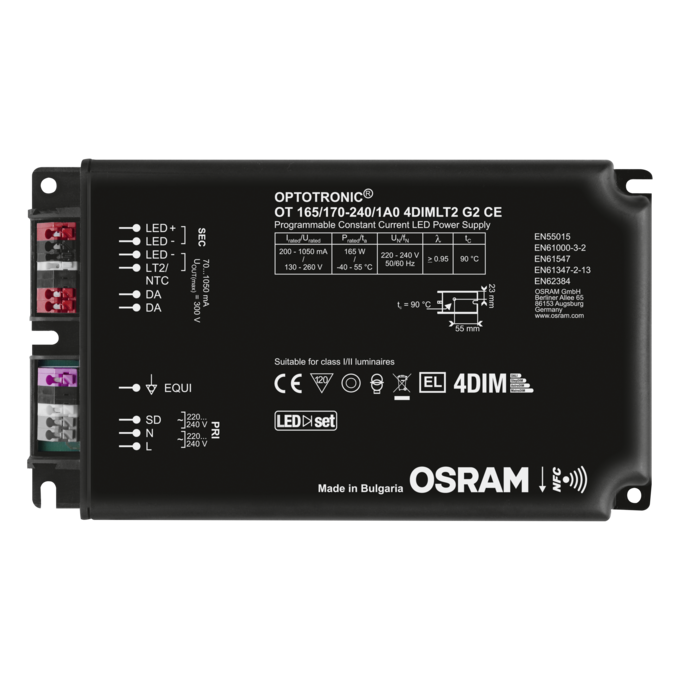

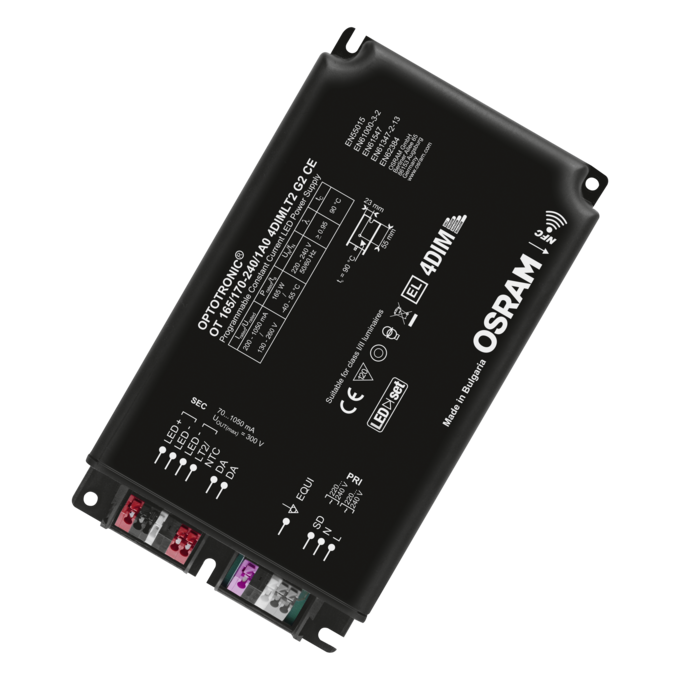

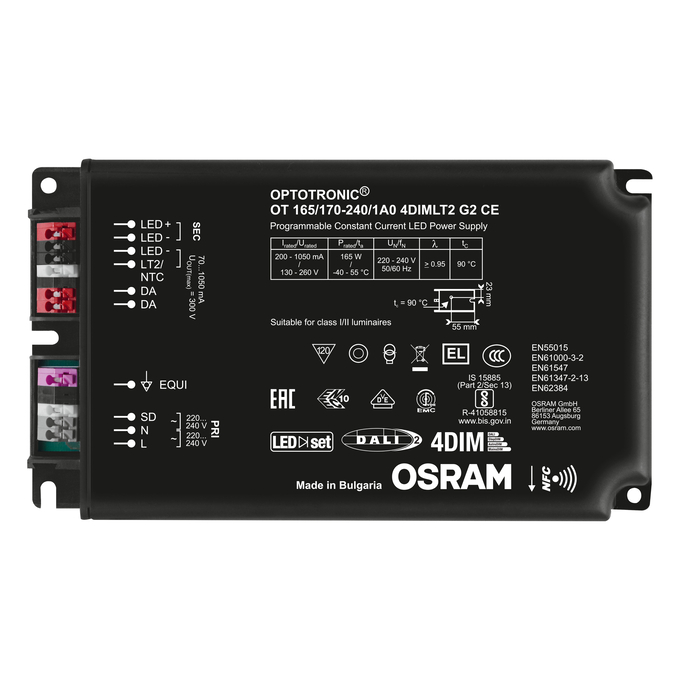

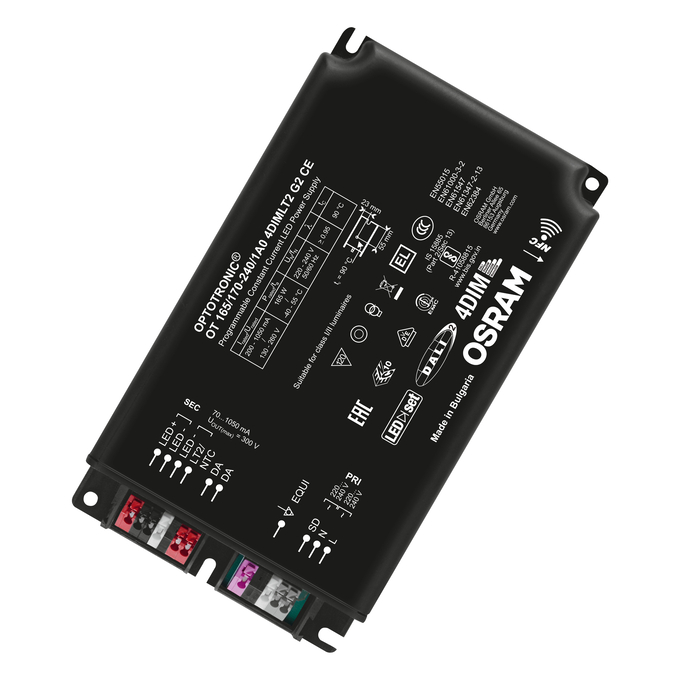

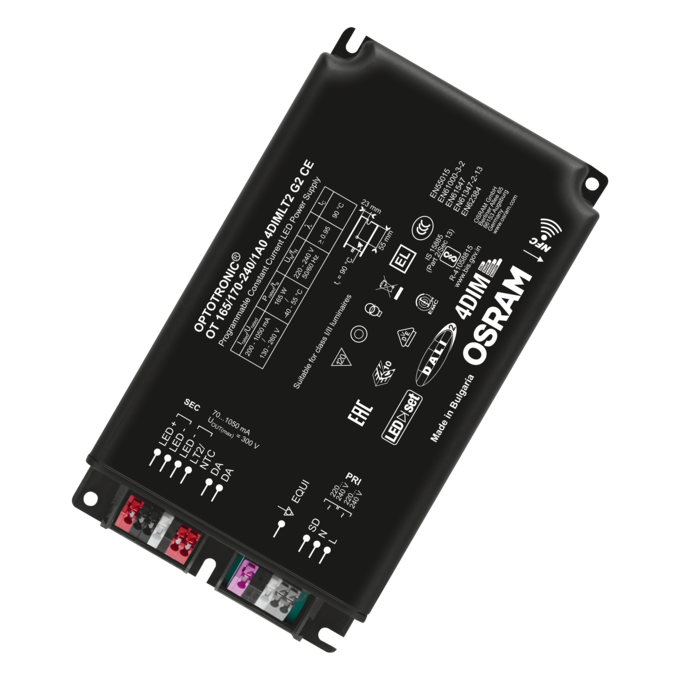

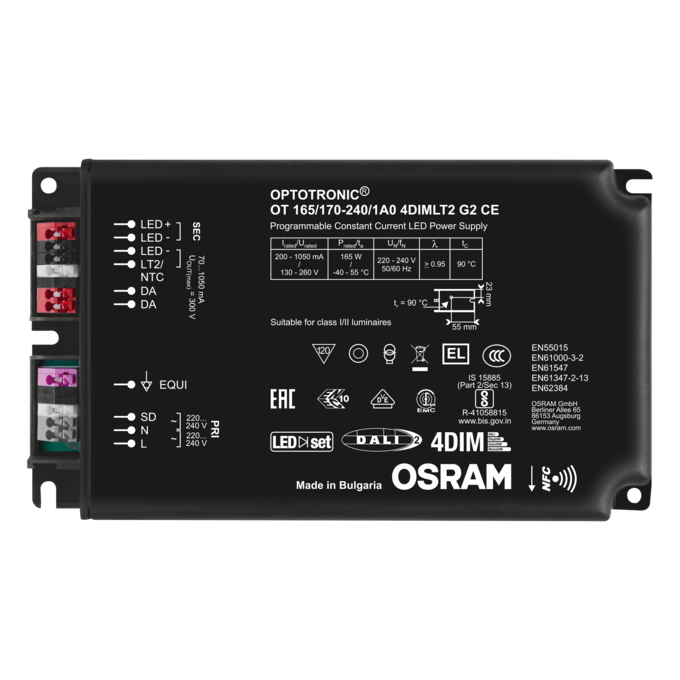

OT 165/170...240/1A0 4DIMLT2 G2 CE
4062172053952
Product benefits
- 4DIM functionality in one device (StepDIM, AstroDIM, MainsDIM, DALI)
- DALI-2 certified incl. Parts 251, 252, 253
- Easy and fast wireless luminaire programming
- Very high efficiency
- Wide current output range: 200 mA…1050 mA
- High surge protection: up to 10 kV (in protection class I or II)
- Great flexibility due to wide operating temperature range of -40…55 °C or 60 °C
- Protection through double isolation between mains input and LED output
Areas of application
- Street and urban lighting
- Industry
- Suitable for outdoor applications in luminaires with IP > 54
- Suitable for use in outdoor luminaires of protection class I and II
Product features
- Supply voltage: 220…240 V
- Current output range: 70…1,050 mA
- Easy and fast wireless luminaire programming via NFC
- Flexible current setting with one additional wire (LEDset2)
- AstroDIM for autonomous dimming with five independent levels (astro, time mode)
- Allows for energy saving in twilight phases
- MainsDIM function for dimming via reduction of line voltage amplitude
- Isolated DALI interface for bidirectional telemanagement systems
- Standby power consumption: < 0.35 W
- Constant Lumen Output (CLO)
- Overtemperature protection via external NTC
- Integrated customizable thermal management (Driver Guard)
Ambient temperature range
-40…+55 °C
Body material
Plastic
Cable cross-section, input side
0.2…1.5 mm²
Cable cross-section, output side
0.2…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
11.5 W
Dimmable
Yes
Dimming interface
4D
Dimming range
10…100 %
ECG efficiency
93.5 %
ECG lifetime
50000
Encapsulated
Yes
Galvanic isolation
Double
GTIN
4062172053952
Height
40.00 mm
Input voltage AC
170…264 V
Input voltage DC
176…276 V 2)
Inrush current
77 A 3)
Length
170.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
0/50/60 Hz
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 25 A (B)
14
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
90 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
160,0 mm
Networked standby power for CLS
< 0.25 W
No-load proof
Yes
Nominal current
0.76 A
Nominal output current
200…1050 mA
Nominal output power
165 W 1)
Nominal output voltage
130…260 V
Nominal voltage
220…240 V
Nominal wattage
165.00 W
Output current tolerance
±3 % 4)
Output ripple current (100 Hz)
< 5 %
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
> 0.98 6)
Power loss in stand-by mode
< 0.25 W
Product recyclability
Mostly recyclable product 1)
Product weight
980.00 g
Protection class
I/II
Short-circuit protection
Automatic reversible
Standards
Acc. to EN 61347
Surge capability (L-N)
6 kV
Surge capability (L/N-Ground)
10 kV
Temperature range at storage
-40…+85 °C
Total harmonic distortion
< 5 % 5)
Type of connection, output side
Push terminal
Type of protection
IP20
U-OUT (working voltage)
300 V
Width
100.00 mm
Wire preparation length, input side
8.5…9.5 mm
