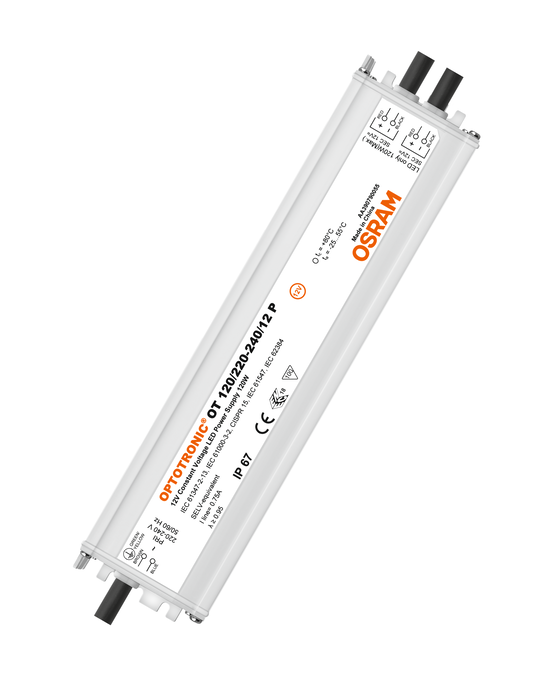

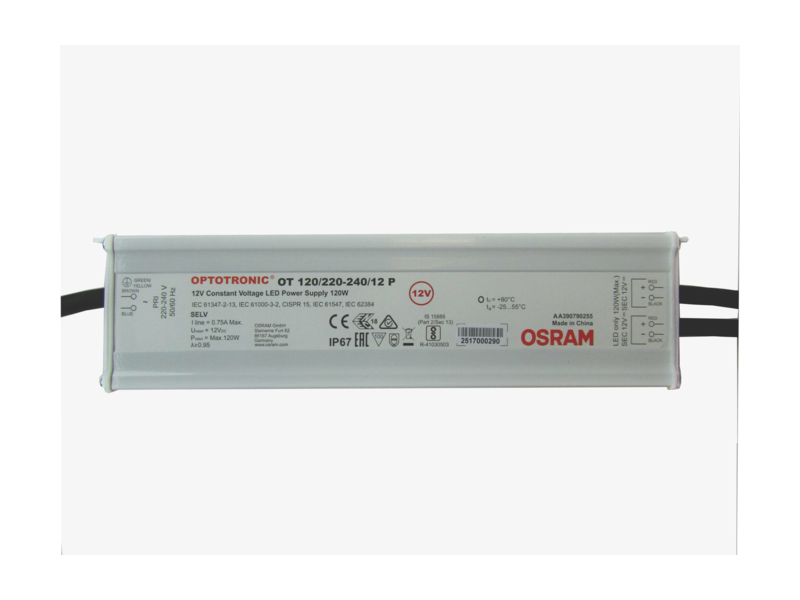

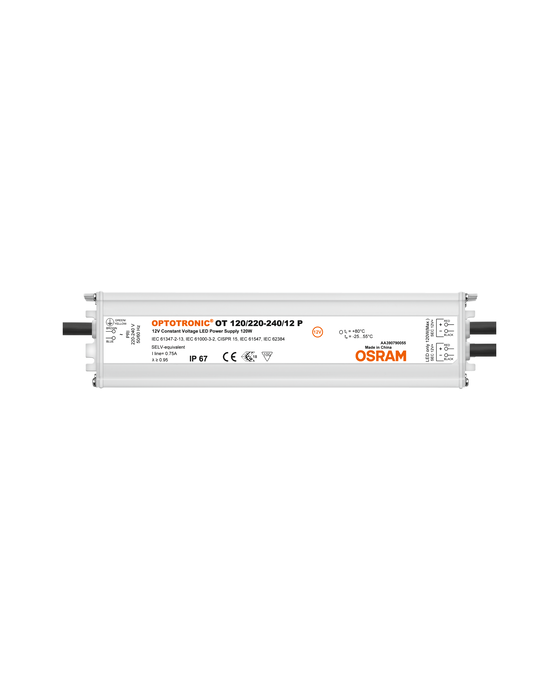

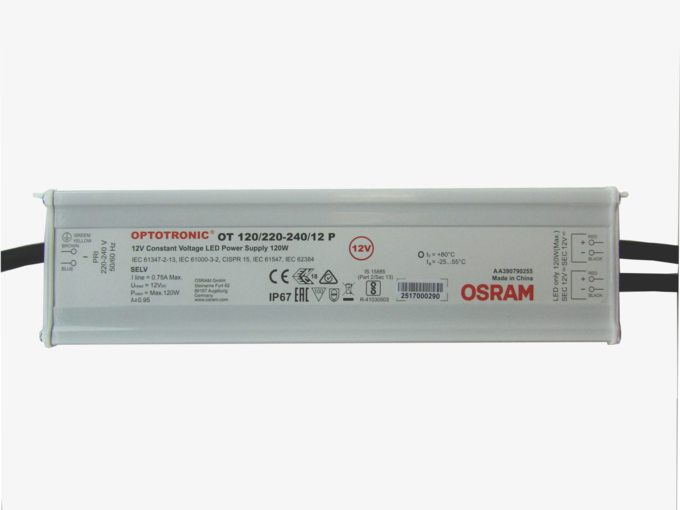

OT 120/220…240/12 P
4008321790835
Product benefits
- Versatile scope of application due to output power range of up to 120 W
- Very high efficiency and reliability
- High IP protection (up to IP67)
- High surge protection: up to 3 kV (L-N) / 6 kV (L/N-PE)
Areas of application
- Suitable for indoor and outdoor installations
- Ideal for mounting in very tight spaces
Ambient temperature range
-25…+55 °C
Body material
Metal
Cable cross-section, input side
1 mm² 1)
Cable cross-section, output side
1 mm² 1)
Casing material
Metal
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
18 W
Dimmable
No
Dimming interface
Not dimmable
ECG efficiency
88 % 5)
ECG lifetime
50000 h 1)
Encapsulated
No
Galvanic isolation
SELV equivalent
GTIN
4008321790835
Height
39.00 mm
Input voltage AC
198…264 V 3)
Inrush current
40 A
Length
250.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Max. cable length to lamp/LED module
10 m
Max. ECG no. on circuit breaker 10 A (B)
6
Max. ECG no. on circuit breaker 16 A (B)
10
Max. ECG no. on circuit breaker 25 A (B)
-
Max.housing temperature in case of fault
100 °C
Maximum temperature at tc test point
80 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
241,0 mm
No-load proof
Yes
Nominal current
0.7 A
Nominal output power
120 W 1)
Nominal output voltage
12.5 V 2)
Nominal voltage
220…240 V
Nominal wattage
135.00 W
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
0.98 4)
Product recyclability
Mostly recyclable product 1)
Product weight
1150.00 g
Protection class
1
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to IEC 61347
Suitable for fixtures with prot. class
I
Surge capability (L-N)
3 kV
Surge capability (L/N-Ground)
6 kV
Temperature range at storage
-40…+85 °C
Total harmonic distortion
< 20 %
Type of protection
IP67
U-OUT (working voltage)
12.5 V
Width
60.00 mm
Wire preparation length, input side
10 mm
Wire preparation length, output side
10 mm
