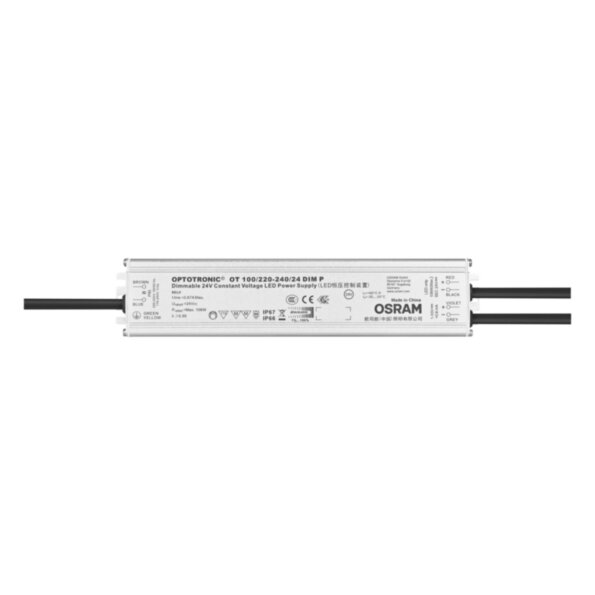

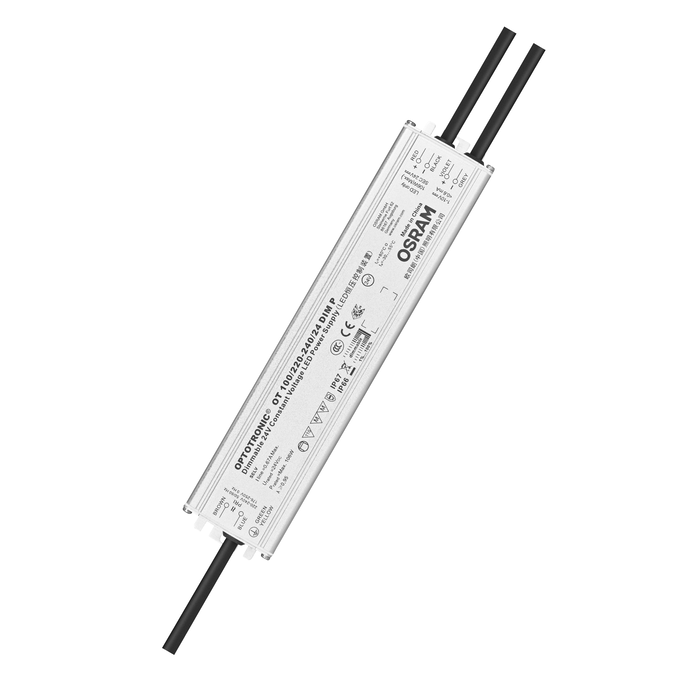

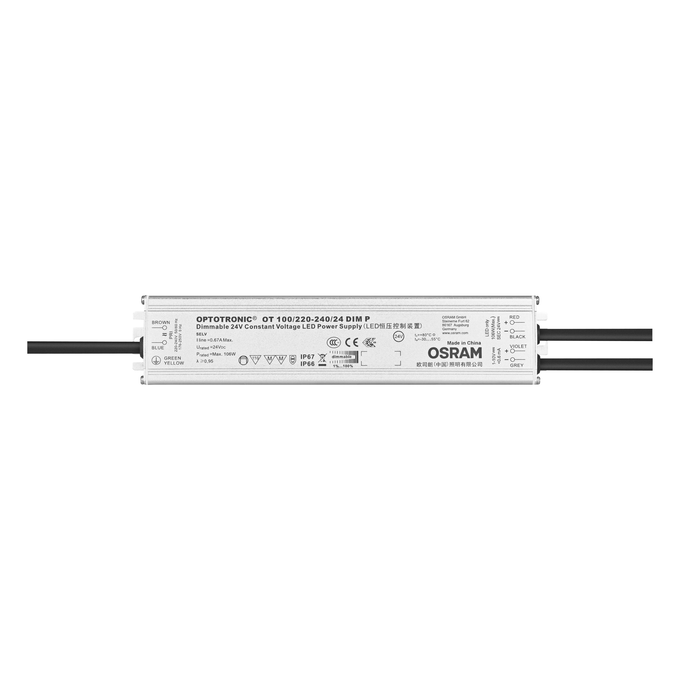

OT 100/220…240/24 DIM P
4052899545861
Product benefits
- Large range of products from 20 W to 250 W
- Installation in very cold and hot environments
- Very stable output power
- High electronical reversible short-circuit, overload, overtemperature protection
- Smart Power Supply: boosting power to turn on cold LEDs
- Independent installation possible
- Dimming range: 1…100 %
Areas of application
- Facades, public squares, cruise ships
- Signage
- Suitable for indoor and outdoor installations
Product features
- DC mode functionality
- Type of protection: IP66 and IP67
- Surge protection: up to 4 kV (L-N) / 6 kV (L/N-PE)
- Wide operating temperature range: -30…+55 °C
- Lifetime: up to 50,000 h (temperature at max. tc )
- Dimmable via fully isolated 1…10 V interface
Ambient temperature range
-30…+55 °C
Approval marks – approval
EN
Body material
Metal
Cable cross-section, input side
1 mm²
Cable cross-section, output side
1 mm²
Casing material
Metal
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
10 W
Dimmable
Yes
Dimming interface
1…10 V
Dimming range
1…100 %
ECG efficiency
90 %
ECG lifetime
50000 h
Encapsulated
Yes
Galvanic isolation
SELV
GTIN
4052899545861
Height
34.00 mm
Input voltage AC
198…264 V
Input voltage DC
176…276 V
Inrush current
60 A
Length
240.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
0/60 Hz
Max. ECG no. on circuit breaker 10 A (B)
10
Max. ECG no. on circuit breaker 16 A (B)
16
Max. ECG no. on circuit breaker 25 A (B)
26
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
80 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
227,0 mm
No-load proof
Yes
Nominal output power
100 W
Nominal output voltage
24.2 V
Nominal voltage
220…240 V
Nominal wattage
106.00 W
Overheating protection
Yes
Overload protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
0.95
Power loss in stand-by mode
< 0.5 W
Product recyclability
Mostly recyclable product 1)
Product weight
765.00 g
Protection class
I
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Yes
Standards
Acc. to EN 61347
Suitable for fixtures with prot. class
I
Surge capability (L-N)
4 kV
Surge capability (L/N-Ground)
6 kV
Temperature range at storage
-40…+85 °C
Total harmonic distortion
< 15 %
Type of connection, output side
Cables
Type of protection
IP66/IP67
U-OUT (working voltage)
30 V
Width
50.00 mm
Wire preparation length, input side
90 mm
Wire preparation length, output side
90 mm
