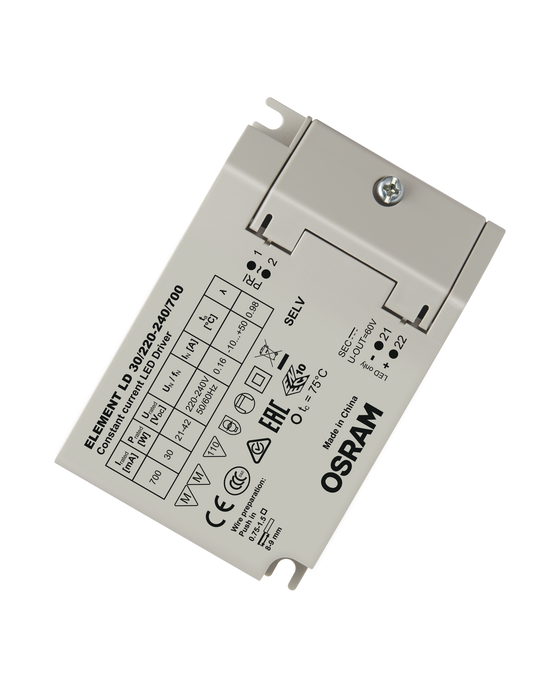

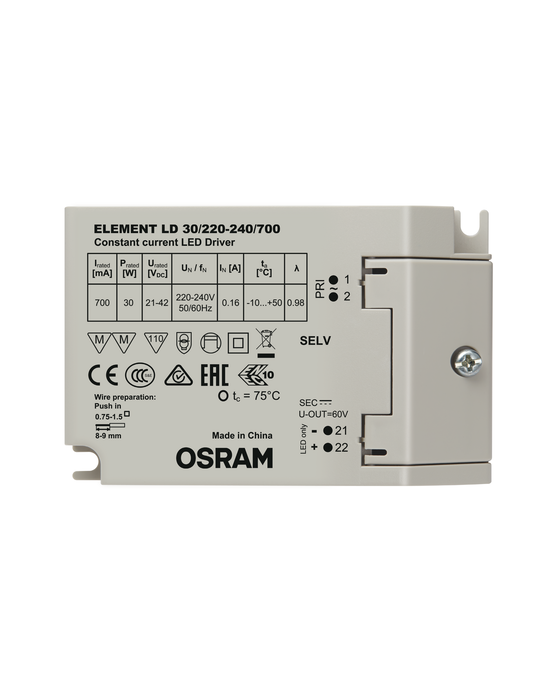

Element LD 30/220…240/700
4052899947108
Product benefits
- Compatible with LEDs with Chip-On-Board technology and discrete LEDs
- High efficiency
- Simple installation and wiring
Areas of application
- Spotlight and downlight installations for shops
- Recessed luminaires
- Suitable for luminaires of protection classes I and II
- Suitable for indoor SELV installations
Product features
- Available with wattages up to 60 W
- Constant output current
- Integrated cable clamp for luminaire and independent installation
- Operated with Safety extra-low voltage (SELV): < 60 V
- Reversible overtemperature, overload, short-circuit and open-circuit protection
Ambient temperature range
-10…+50 °C
Approval marks – approval
C
Body material
Plastic
Cable cross-section, input side
0.5…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
4.4 W 6)
Dimmable
No
ECG efficiency
> 90 % 5)
ECG lifetime
30000 h 1)
Encapsulated
No
Galvanic isolation
SELV
GTIN
4052899947108
Height
29.50 mm
Input voltage AC
220…240 V 2)
Inrush current
16 A
Length
103.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
25
Max. ECG no. on circuit breaker 16 A (B)
40
Max. ECG no. on circuit breaker 25 A (B)
-
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
94,0 mm
No-load proof
Yes
Nominal output current
700 mA
Nominal output power
30 W
Nominal output voltage
21…42 V 1)
Nominal voltage
220…240 V
Nominal wattage
8.00 W
Output current tolerance
±10 %
Output ripple current (100 Hz)
40 % 3)
Overheating protection
Automatic switch off, reversible by manual mains reset
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
0.98 4)
Product recyclability
Mostly recyclable product 1)
Product weight
150.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to IEC 61347
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
1 kV
Temperature range at storage
-10…75 °C
Total harmonic distortion
< 20 %
Type of connection, output side
Push terminal
Type of protection
IP20
U-OUT (working voltage)
60 V
Width
67.00 mm
Wire preparation length, input side
8.0…9.0 mm
Wire preparation length, output side
8.0…9.0 mm
