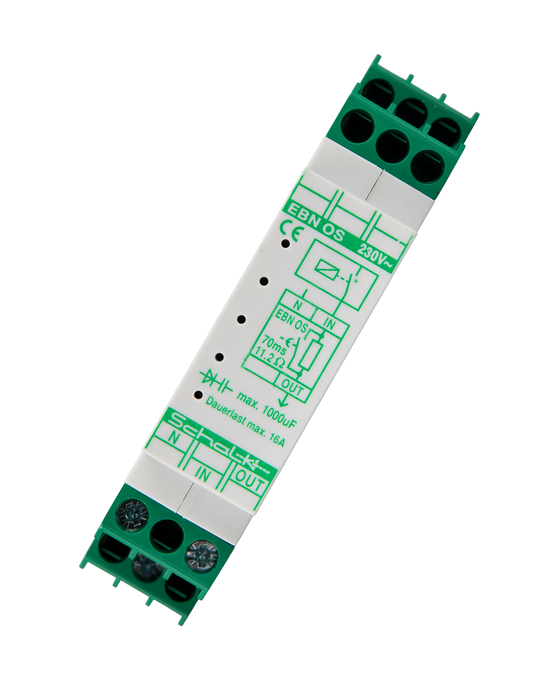

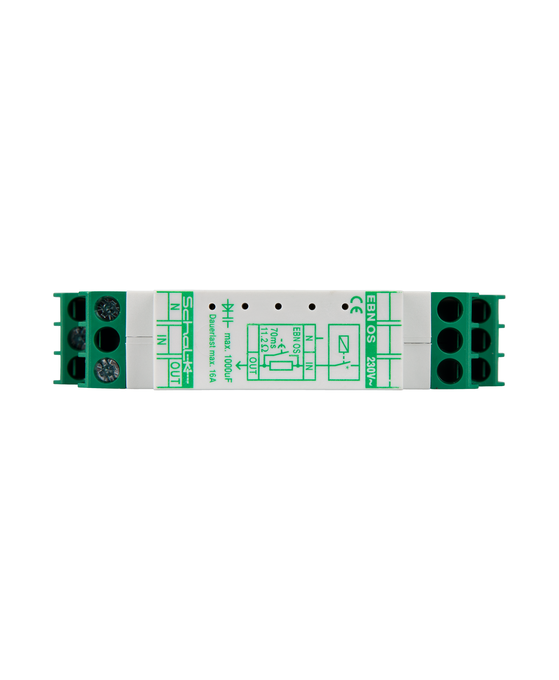

EBN-OS /230
4006584548019
Product benefits
- Increases maximum number of ECG per automatic cutout by factor 2.5
- Flexible use depending on the size of the installation
- Simple installation
Areas of application
- Suitable for all POWERTRONIC and selected OPTOTRONIC control gears
Product features
- Retrofit for DIN rail to DIN EN 50022
- Operating frequency: 50…60 Hz
- Maximum continuous load: 16 A
- Limitation time: 70 ms
- Number of switching cycles: up to 10,000
Ambient temperature range
-10…+40 °C
Body material
Plastic
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Device power loss
0,6 W
Dimmable
No
GTIN
4006584548019
Height
88.00 mm
Length
58.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50/60 Hz
Max.housing temperature in case of fault
110 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
230 V
Nominal wattage
0.60 W
Operating frequency
50 Hz
Overheating protection
Automatic switch off, reversible by manual mains reset
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Product recyclability
Mostly recyclable product 1)
Product weight
75.00 g
Protection class
1
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Standards
Acc. to IEC 801-4 level
Surge capability (L-N)
2 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-40…+85 °C
Type of installation
35 mm standard rail
Width
18.00 mm
