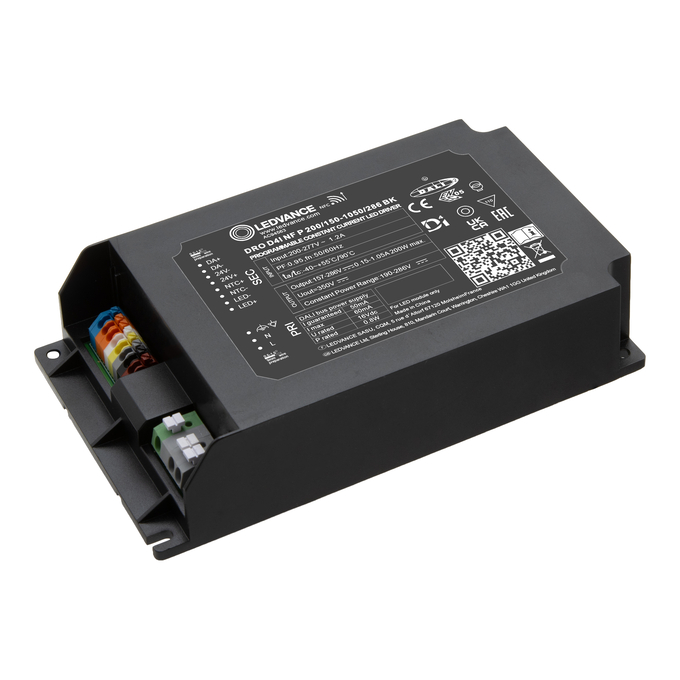

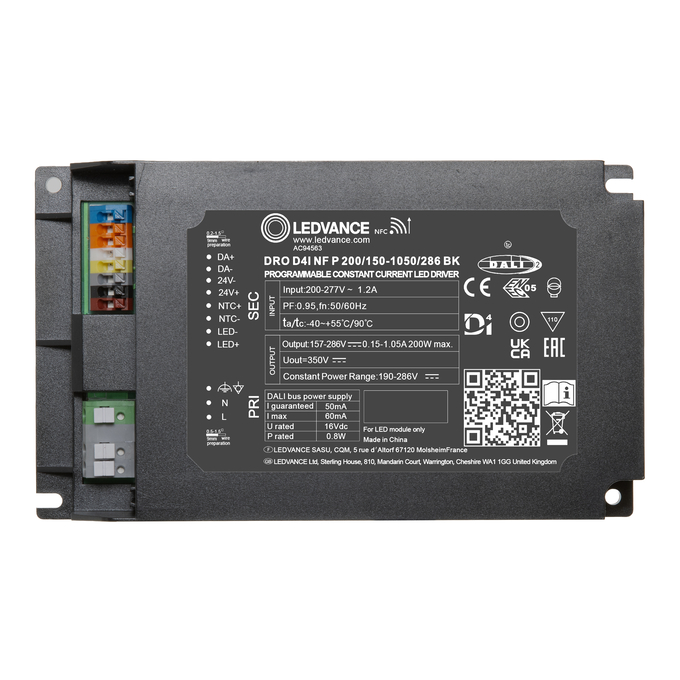

DRO D4i NF P 200/150-1050/286 BK
4099854834066
Product benefits
- For Zhaga Book18 Luminaires and D4i certified
- Electrical interface and data communication fully based on open standards
- Fully programmable via software (NFC)
- High surge protection: up to 10 kV (in protection class I or II)
- Lifetime: up to 100,000 h (depending on Tc temperature)
- Standardized DALI-2 communication (incl. monitoring data, energy metering)
- BOX Programming: all drivers in one BOX can be programmed in one step
Areas of application
- Street and urban lighting
- Industry
- Suitable for outdoor applications in luminaires with IP > 54
- Suitable for use in outdoor luminaires of protection class I and II
Product features
- Interface based on DALI-2 communication
- Current output range: 150…1,050 mA
- Available with different wattage: 22 W, 40 W, 60 W, 80 W, 110 W, 165 W and 200 W
- Autonomous dimming with six independent levels
- Constant Lumen Output (CLO)
- Easy and fast wireless luminaire programming via NFC
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
- Do not open enclosure-housing.
Ambient temperature range
-40…+55 °C
Body material
Polycarbonate (PC)
Casing material
Polycarbonate (PC)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
Yes
Dimming interface
DALI D4i
ECG efficiency
94 % 2)
ECG lifetime
100000
Flickering metric (Pst LM)
GTIN
4099854834066
Height
39.00 mm
Input voltage AC
176...305 V 1)
Input voltage range
176...305
Inrush current
100 A
Length
171.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50…60 Hz
Max. ECG no. on circuit breaker 10 A (B)
3
Max. ECG no. on circuit breaker 10 A (C)
5
Max. ECG no. on circuit breaker 16 A (B)
5
Max. ECG no. on circuit breaker 16 A (C)
8
Max. ECG no. on circuit breaker 25 A (B)
8
Max. ECG no. on circuit breaker 25 A (C)
14
Max. ECG no. on circuit breaker 32 A (C)
17
Max.housing temperature in case of fault
Maximum temperature at tc test point
90 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal output current
150…1050 mA
Nominal output power
200 W
Nominal output voltage
157…286 V
Nominal voltage
220…240 V
Nominal wattage
243.5 W
Number of switching cycles
100000
Operating frequency
50/60 Hz
Output current tolerance
±5 %
Output ripple current (100 Hz)
10 %
Overheating protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
10…95 %
Power factor λ
0.97
Power loss in stand-by mode
≤0.5 W
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
750.00 g
Protection class
I/II
Stroboscope effect metric (SVM)
Surge capability (L-N)
6000 V
Surge capability (L/N-Ground)
10000 V
Temperature range at storage
-40…+80 °C
Total harmonic distortion
≤ 10 %
Type of current
AC
Type of protection
IP20
Width
101.00 mm
