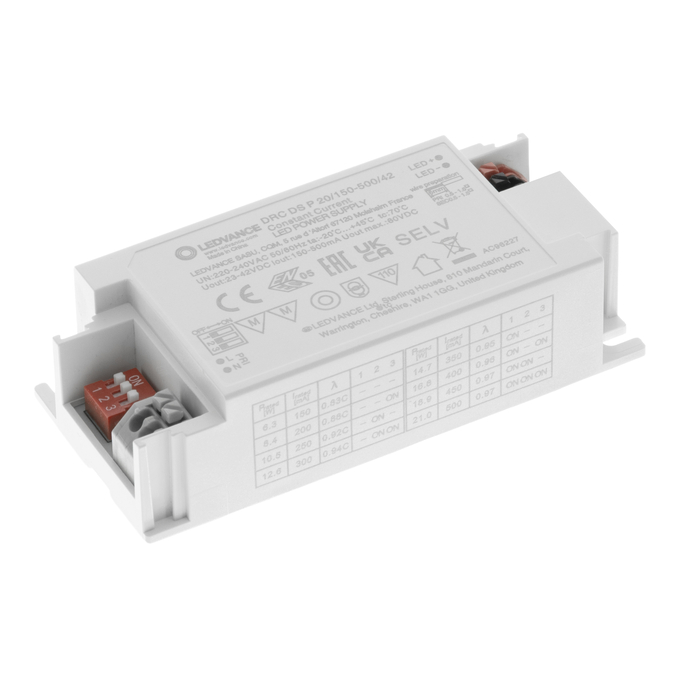

DRC DS P 20/150-500/42
4099854844546
Product benefits
- High flexibility due to adjustable output currents via dip switch
- Low flickering enables high light quality as well as good visual comfort
- 5 years guarantee
- Slim housing for narrow installations
- High efficiency and reliability
Areas of application
- Suitable for LED luminaires and LED modules
- Applicable for luminaires of protection classes I and II
- For indoor SELV installations
- Offices, shopping centers, hospitals, restaurants, hotels
- Suitable for a broad range of luminaires (by broad range of dip switch currents)
Product features
- Available in 20 W, 30 W, 40 W
- Independent installation with optional Cable Clamp Kit
- Type of protection: IP20
- Low ripple current < 5%
- Supply voltage: 220…240 V
- Operating frequency: 50/60 Hz
- Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384
- Immunity according to EN 61547
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
- Do not open enclosure-housing.
Ambient temperature range
-20…+45 °C
Body material
Polycarbonate (PC)
Casing material
Polycarbonate (PC)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
ECG efficiency
90 % 2)
ECG lifetime
100000 h / 50000 h 1)
Flickering metric (Pst LM)
1
GTIN
4099854844546
Height
25.50 mm
Input voltage AC
198…264 V 1)
Input voltage range
198…264 V
Inrush current
11 A
Length
97.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Triphenyl phosphate (115-86-6)
Mains frequency
50…60 Hz
Max. ECG no. on circuit breaker 10 A (B)
72
Max. ECG no. on circuit breaker 10 A (C)
120
Max. ECG no. on circuit breaker 16 A (B)
115
Max. ECG no. on circuit breaker 16 A (C)
192
Max. ECG no. on circuit breaker 25 A (B)
180
Max. ECG no. on circuit breaker 25 A (C)
300
Max. ECG no. on circuit breaker 32 A (B)
230
Max. ECG no. on circuit breaker 32 A (C)
384
Max.housing temperature in case of fault
Maximum temperature at tc test point
70 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal output current
150…500 mA
Nominal output power
20 W
Nominal output voltage
23…42 V
Nominal voltage
220…240 V
Nominal wattage
23.33 W
Number of switching cycles
100000
Operating frequency
50…60 Hz
Output current tolerance
+/- 5 %
Output ripple current (100 Hz)
< 3 %
Overheating protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…95 %
Power factor λ
0.98
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
72.00 g
Protection class
II
Stroboscope effect metric (SVM)
Surge capability (L-N)
1000 V
Surge capability (L/N-Ground)
2000 V
Temperature range at storage
-40…+85 °C
Total harmonic distortion
< 10 %
Type of current
AC
Type of protection
IP20
Width
44.00 mm
