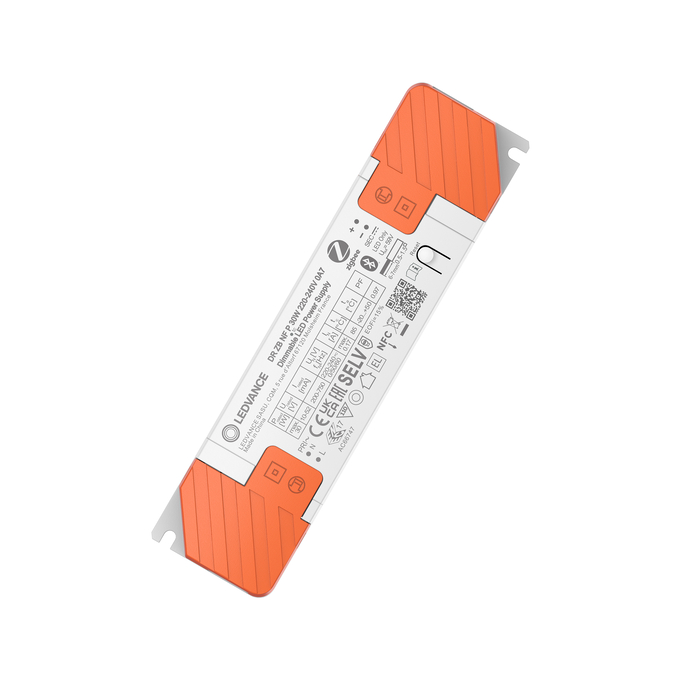

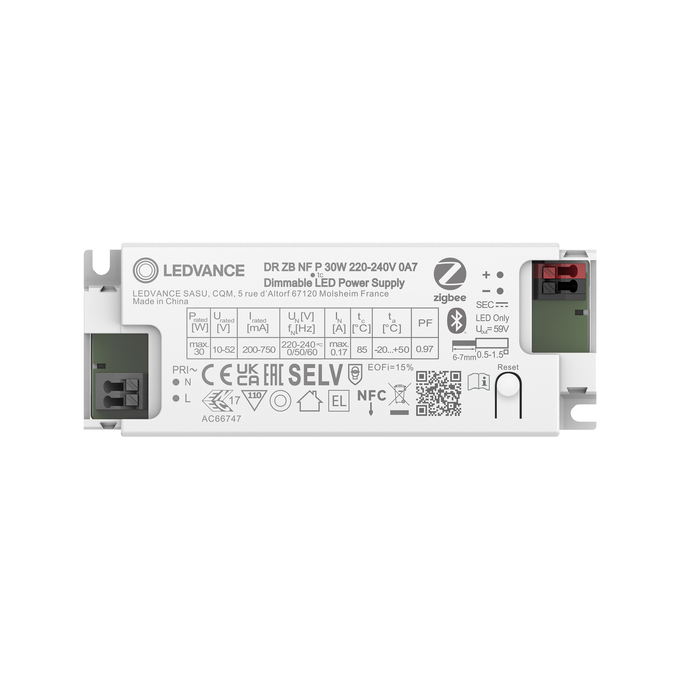

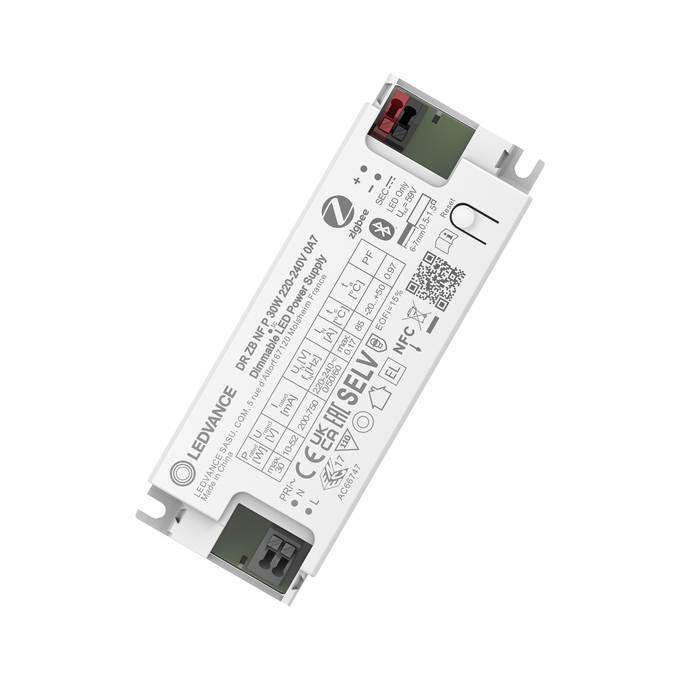

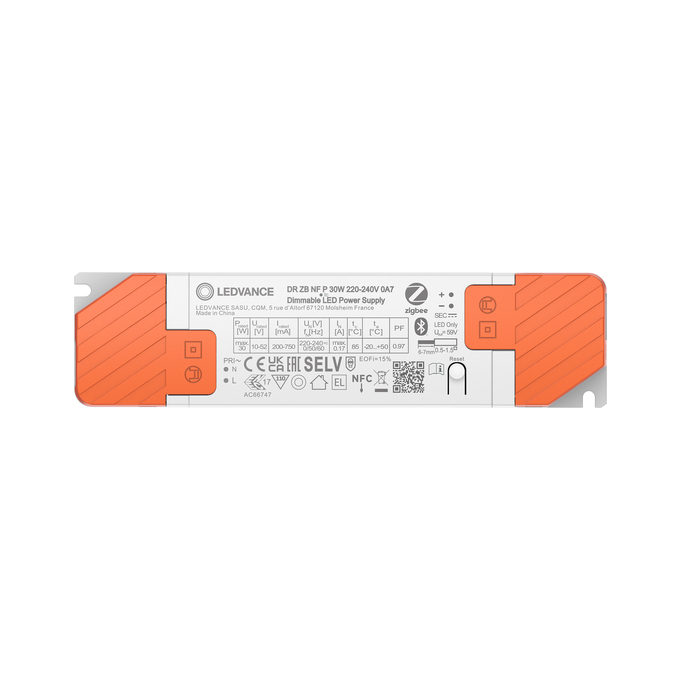

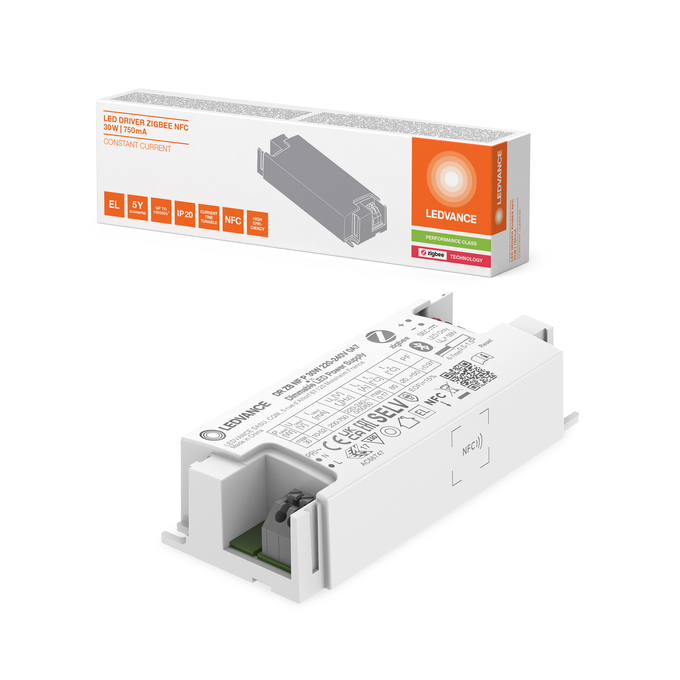

DR ZIGBEE NF P 30W 220-240V 0A7
4099854668654
Product benefits
- Zigbee 3.0 and Zigbee Direct via Bluetooth Low Energy (BLE)
- Flexible NFC current settings on device in 1 mA steps
- Consumption and diagnostic data via Zigbee
- Low flickering enables high light quality as well as good visual comfort
- High-quality dimming of 1…100 %
- Toolless installation
Areas of application
- Luminaires of protection class I and II
- Indoor SELV installations
- Suitable for LED T5 FC EXTERNAL P
- Emergency lighting systems (DC capable)
- Cove lighting
- Offices
- Education
- Storage areas
- Retail
Product features
- Available with an output current range: from 200...750 mA (30 W)
- Available with an output current range: from 600...1,200 mA (45 W)
- Type of installation: independent and built-in
- Suitable for emergency lighting fixtures acc. to EN 60598-2-2 with via NFC adjustable emergency output factor (EOFI)
- Quick and easy current setting via NFC
- Very long lifetime of up to 100,000 h
- Supply voltage: 220…240 V
- Operated with Safety extra-low voltage (SELV): < 60 V
Equipment / Accessories
- Cable clamps included for trade types
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
- Do not open enclosure-housing.
Ambient temperature range
-20…+50 °C
Body material
Plastic
Cable cross-section, input side
0.5…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
< 4 W
Dimmable
Yes
Dimming interface
Zigbee 3.0 1)
Dimming range
1…100 %
ECG efficiency
> 88 %
ECG lifetime
100000 h 1)
Encapsulated
Yes
Galvanic isolation
SELV
GTIN
4099854668654
Height
25.00 mm
Input voltage AC
198…264 V 1)
Input voltage DC
178…280 V
Inrush current
4.88 A
Length
118.20 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
0/50/60 Hz
Max. cable length to lamp/LED module
0,8 m
Max. ECG no. on circuit breaker 10 A (B)
51
Max. ECG no. on circuit breaker 10 A (C)
51
Max. ECG no. on circuit breaker 16 A (B)
82
Max. ECG no. on circuit breaker 16 A (C)
82
Max. ECG no. on circuit breaker 25 A (B)
128
Max. ECG no. on circuit breaker 25 A (C)
128
Max. ECG no. on circuit breaker 32 A (B)
164
Max. ECG no. on circuit breaker 32 A (C)
164
Max.housing temperature in case of fault
Maximum temperature at tc test point
80 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
109 mm
No-load proof
Yes
Nominal current
170 mA
Nominal output current
200…750 mA 2)
Nominal output power
30 W
Nominal output voltage
10…52 V
Nominal voltage
220…240 V
Number of switching cycles
50000
Operating frequency
0/50/60 Hz
Output current tolerance
+/- 3 %
Output ripple current (120 Hz)
+/- 3.0 %
Overheating protection
Yes
Overload protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 %
Power factor λ
≥0.97 3)
Power loss in stand-by mode
≤0.3 W
Prewired
No
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
127.9 g
Protection class
II
Short-circuit protection
Yes
Standards
Acc. to EN 61347
Suitable for emergency lighting
Yes
Suitable for fixtures with prot. class
II
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-40…+85 °C
Temperature range in operation
-20…+50 °C
Total harmonic distortion
< 10 % 3)
Type of connection, output side
Push terminal
Type of current
DC
Type of protection
IP20
U-OUT (working voltage)
10…52 V
Width
45.00 mm
Wire preparation length, input side
6…7 mm
Wire preparation length, output side
6…7 mm
