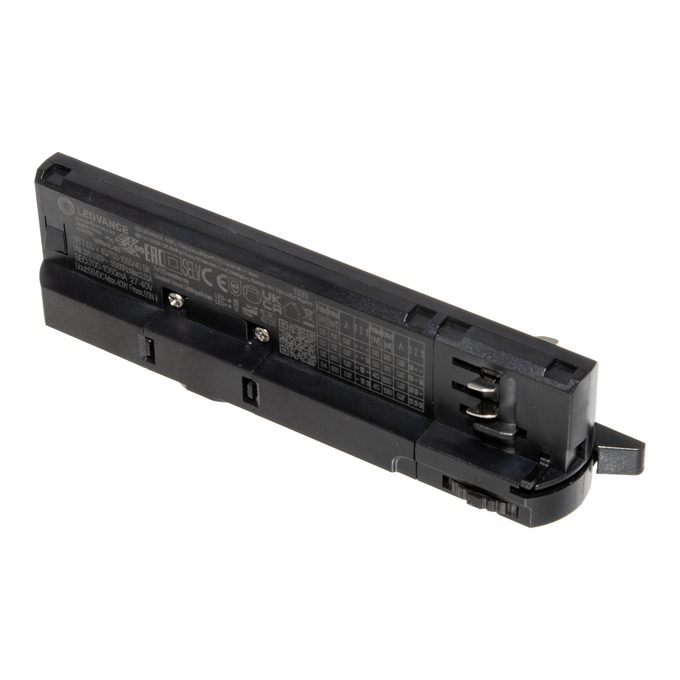

DR T DS V 40/700-1050/40 BK
4099854674549
Product benefits
- High flexibility due to adjustable output currents via dip switch (8 currents)
- Low flickering enables high light quality as well as good visual comfort
- Flexible dip switch current settings on device in 50 mA steps
Areas of application
- Suitable for LED luminaires and LED modules
- Applicable for luminaires of protection class II
- Suitable for indoor SELV installations
Product features
- Available in 20 W, 28 W and 40 W
- Very long lifetime of up to 100,000 h
- Type of protection: IP20
- Low ripple current < 5%
- Supply voltage: 220…240 V
- ENEC-certified safety
- Safety according to EN 61347-1, 61347-2-13, 62384
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
- Do not open enclosure-housing.
Ambient temperature range
-20…+35 °C
Body material
Polycarbonate (PC)
Casing material
Polycarbonate (PC)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
No
ECG efficiency
90 % 2)
ECG lifetime
100000 h / 50000 h 1)
Flickering metric (Pst LM)
GTIN
4099854674549
Height
33.00 mm
Input voltage AC
198…264 V 1)
Input voltage range
198…264 V
Inrush current
17.6 A
Length
167.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50…60 Hz
Max.housing temperature in case of fault
Maximum temperature at tc test point
90 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal output current
700-1050 mA
Nominal output voltage
27…40 V
Nominal voltage
220…240 V
Nominal wattage
40.00 W
Number of switching cycles
100000
Operating frequency
50/60 Hz
Output current tolerance
±5 %
Output ripple current (100 Hz)
< 5 %
Output ripple current (120 Hz)
< 5 %
Overheating protection
No
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
10…93 %
Power factor λ
Power loss in stand-by mode
< 0.5 W
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
113.00 g
Protection class
II
Stroboscope effect metric (SVM)
Surge capability (L-N)
1 kV
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 15 %
Type of protection
IP20
Width
45.50 mm
