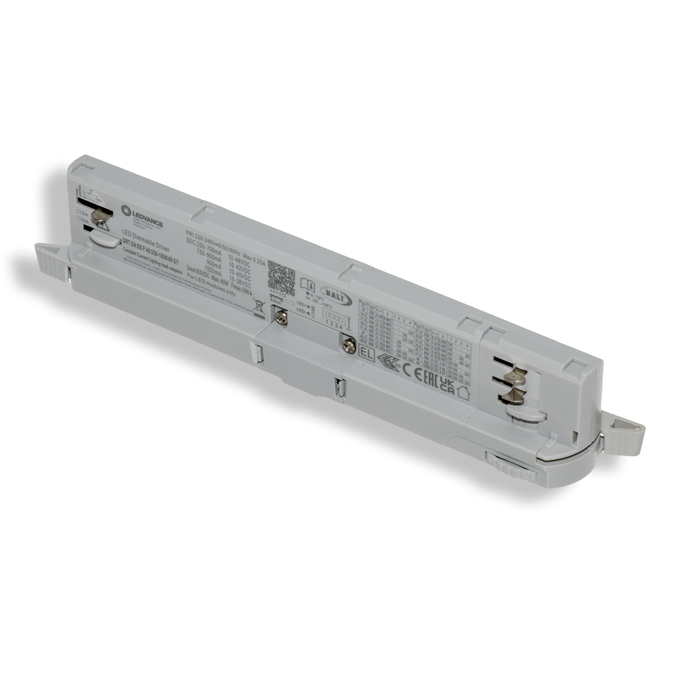

DR T DA DS P 40/250-1050/40 GY
4099854615528
Product benefits
- High flexibility due to adjustable output currents via dip switch (16 currents)
- Low flickering enables high light quality as well as good visual comfort
- Flexible dip switch current settings on device in 50 mA steps
- High efficiency
Areas of application
- Suitable for LED luminaires and LED modules
- Applicable for luminaires of protection class II
- Suitable for indoor SELV installations
Product features
- Very long lifetime of up to 100,000 h
- Type of protection: IP20
- Low ripple current < 5%
- Supply voltage: 220…240 V
- ENEC-certified safety
- Safety according to EN 61347-1, 61347-2-13, 62384
- Available in 28 W and 40 W
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
- Do not open enclosure-housing.
Ambient temperature range
-25…+35 °C
Body material
CGCC
Casing material
CGCC
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
Yes
Dimming interface
DALI
Dimming range
1…100 %
ECG efficiency
90 % 2)
ECG lifetime
100000 h / 50000 h 1)
Flickering metric (Pst LM)
≤1
GTIN
4099854615528
Height
46.00 mm
Input voltage AC
198…264 V 1)
Input voltage range
198…264 V
Inrush current
30 A
Length
197.80 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
0/50/60 Hz
Max.housing temperature in case of fault
110 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal output current
250…1050 mA
Nominal output power
40 W
Nominal output voltage
10…48 V
Nominal voltage
10…48 V
Number of switching cycles
100000
Operating frequency
0/50/60 Hz
Output current tolerance
±5 %
Output ripple current (100 Hz)
±5 %
Overheating protection
No
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
10…90 %
Power factor λ
≥0.97
Power loss in stand-by mode
< 0.5 W
Product recyclability
Mostly recyclable product 1)
Product weight
140.00 g
Protection class
II
Stroboscope effect metric (SVM)
≤0.4
Suitable for fixtures with prot. class
II
Surge capability (L-N)
2 kV
Temperature range at storage
-25…+85 °C
Temperature range in operation
-25…+35 °C
Total harmonic distortion
≤ 20 %
Type of current
DC
Type of protection
IP20
Width
31.00 mm
