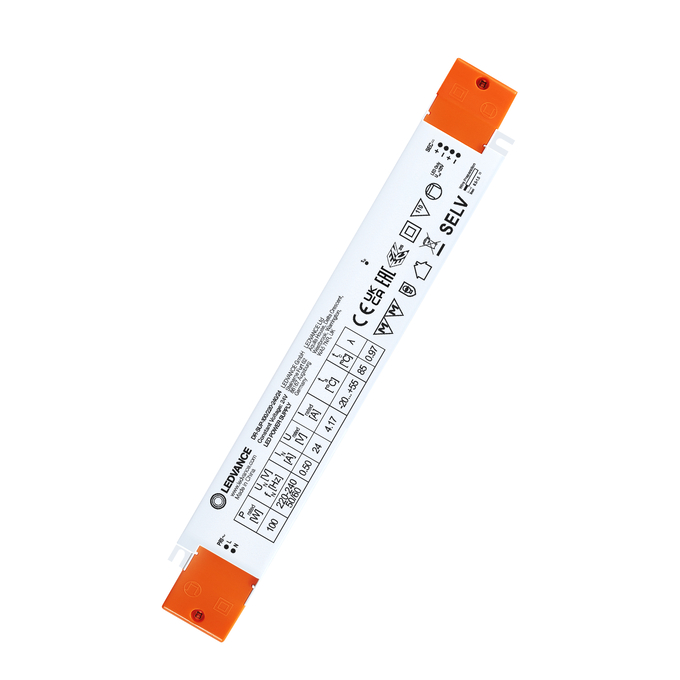

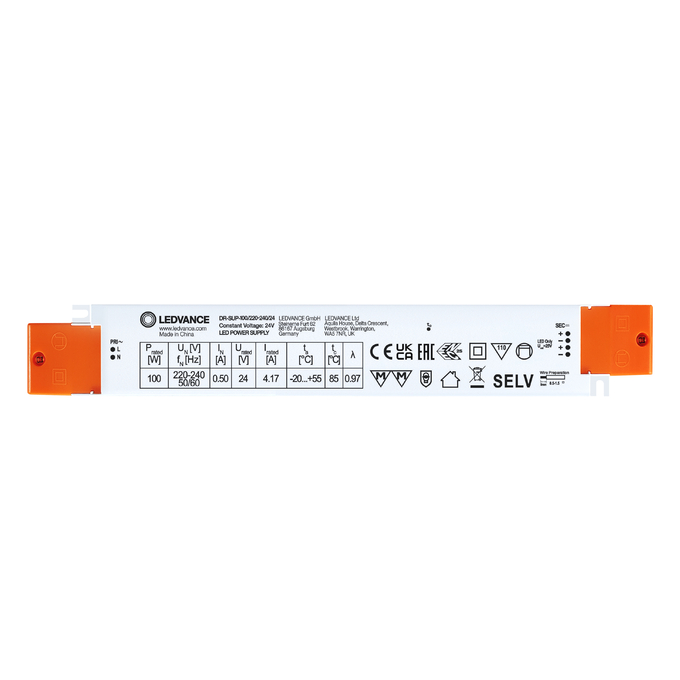

DR-SUP -100/220-240/24
4058075437821
Product benefits
- Perfectly matched to 24 V LED flexible strips
- Long reliable life at maximum permitted temperatures
- 5 years guarantee
- Maintenance-free operation and minimal installation costs
- Quick and simple installation
- High efficiency and reliability
Areas of application
- Cove lighting, even in tight spaces
- Wallwasher effect lighting in living rooms, dining rooms, bedrooms, entrances
- Offices, shopping centers, hospitals, restaurants, hotels
- For indoor SELV installations
Product features
- Available in 30 W, 60 W, 100 W and 200 W
- Integrated cable clamp for independent installation
- Lifetime: up to 60,000 h (at max. tc temperature)
- Type of protection: IP20
- Low ripple current < 5%
- Supply voltage: 220…240 V
- Operating frequency: 50/60 Hz
- Operated with less than 60 V: Safety extra-low voltage (SELV)
- Reversible overtemperature, overload, short-circuit and open-circuit protection
Ambient temperature range
-20…+55 °C
Body material
Plastic
Cable cross-section, input side
0.5…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Device power loss
13 W 6)
Dimmable
No
Dimming interface
Not dimmable
ECG efficiency
90 % 5)
ECG lifetime
60000 h 1)
Encapsulated
No
Galvanic isolation
SELV
GTIN
4058075437821
Height
30.00 mm
Input voltage AC
198…264 V 3)
Inrush current
50 A
Length
298.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50…60 Hz
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
13
Max. ECG no. on circuit breaker 16 A (B)
20
Max. ECG no. on circuit breaker 25 A (B)
31
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
85 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
240,0 mm
Nominal current
500 mA
Nominal output current
4170 mA
Nominal output power
100 W 1)
Nominal output voltage
24 V 2)
Nominal voltage
220…240 V
Nominal wattage
100.00 W
Output ripple current (100 Hz)
1.5 %
Overheating protection
Yes
Overload protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 %
Power factor λ
0.97 4)
Prewired
No
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
220.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Yes
Standards
Acc. To IEC/EN61347
Suitable for emergency lighting
No
Suitable for fixtures with prot. class
II
Surge capability (L-N)
1 kV
Temperature range at storage
-40…+85 °C
Temperature range in operation
-20…+55 °C
Total harmonic distortion
< 10 % 4)
Type of connection, output side
Fixed connection (terminal)
Type of current
DC
Type of protection
IP20
U-OUT (working voltage)
25 V
Width
43.00 mm
Wire preparation length, input side
8,0 mm
Wire preparation length, output side
8,0 mm
