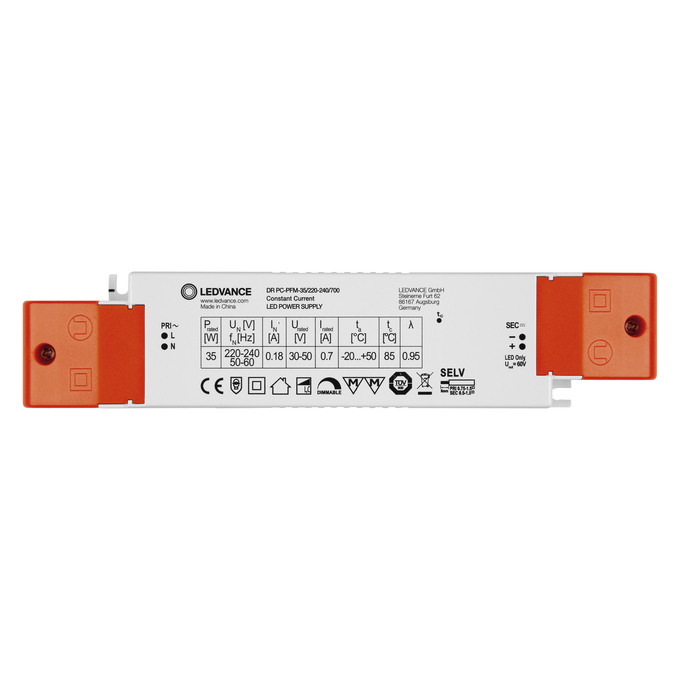

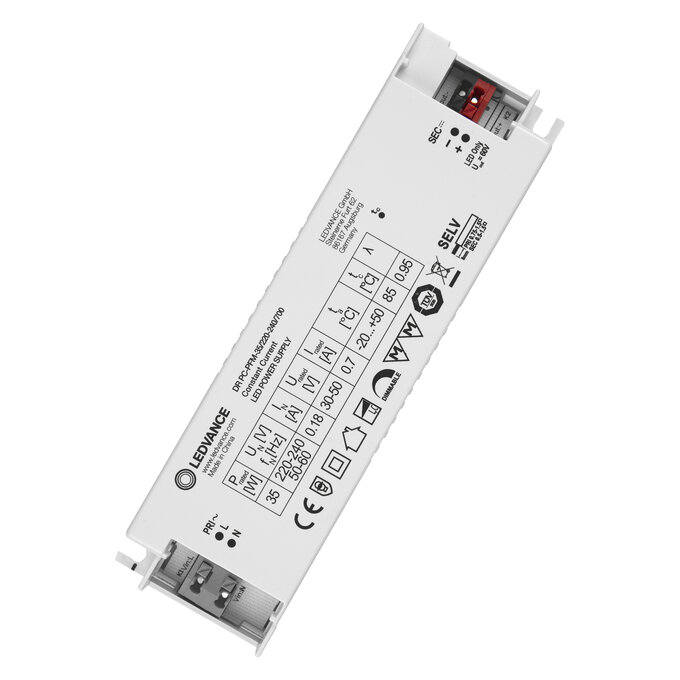

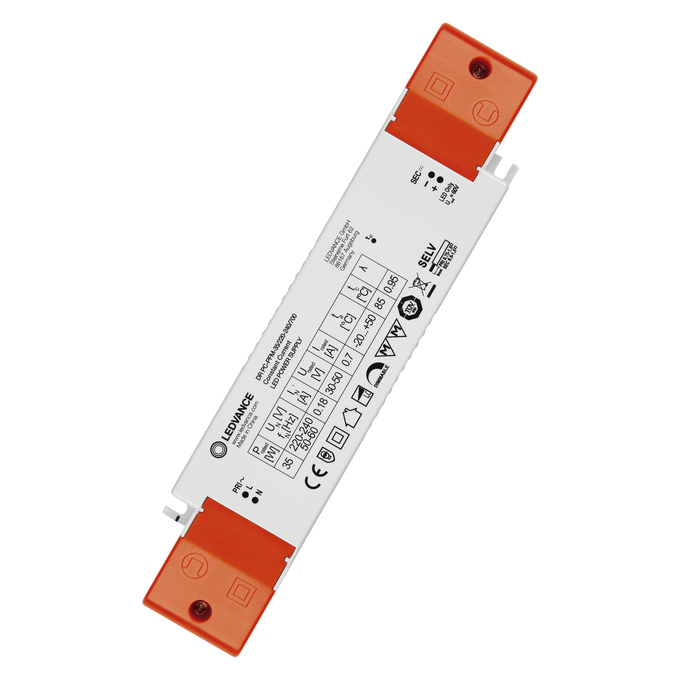

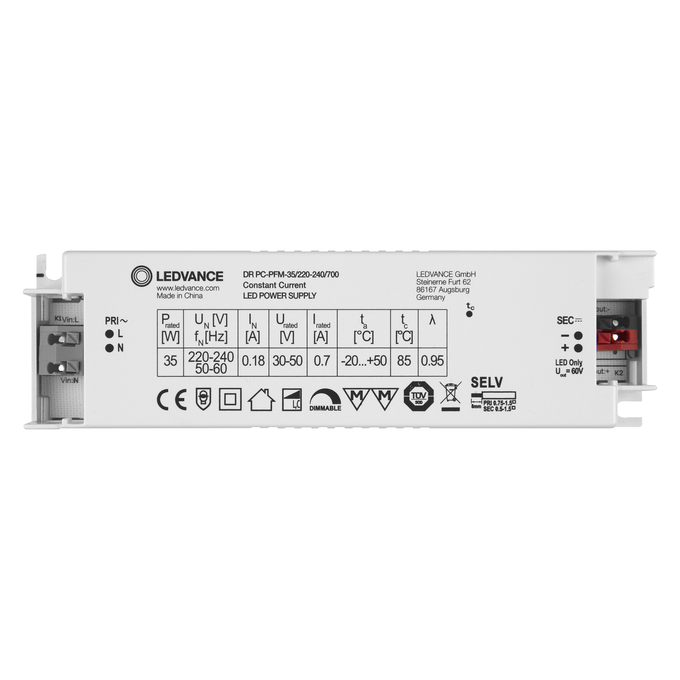

DR PC-PFM -35/220-240/700
4058075239876
Product benefits
- Enables installation with commonly used leading-edge and trailing-edge dimmers
- 5 years guarantee
- Slim housing for narrow installations
- High efficiency and reliability
Areas of application
- Suitable for LED luminaires and LED modules
- Applicable for luminaires of protection classes I and II
- For indoor SELV installations
- Offices, shopping centers, hospitals, restaurants, hotels
Product features
- Available in 13 W, 18 W, 25 W and 35 W
- Independent installation with optional Cable Clamp Kit
- Dimmable on the leading edge and trailing edge
- Dimmable from 10…100 %
- Lifetime: up to 50,000 h (at max. tc temperature)
- Type of protection: IP20
- Dedicated, constant output current
- Low ripple current < 5%
- Supply voltage: 220…240 V
- Operating frequency: 50/60 Hz
- Operated with less than 60 V: Safety extra-low voltage (SELV)
- Reversible overtemperature, overload, short-circuit and open-circuit protection
Equipment / Accessories
- Cable Clamp Kit to ensure propper strain relief
References / Links
- For Guarantee see
Ambient temperature range
-20…+50 °C
Approval marks – approval
T
Body material
Plastic
Cable cross-section, input side
0.75…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Device power loss
4.6 W 8)
Dimmable
Yes
Dimming interface
Phase Cut
Dimming range
10…100 %
ECG efficiency
87 % 7)
ECG lifetime
50000 h 1)
Encapsulated
No
Galvanic isolation
SELV
GTIN
4058075239876
Height
30.00 mm
Input voltage AC
198…264 V 3)
Inrush current
10 A
Length
150.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50…60 Hz
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
31
Max. ECG no. on circuit breaker 16 A (B)
50
Max. ECG no. on circuit breaker 25 A (B)
78
Max.housing temperature in case of fault
95 °C
Maximum temperature at tc test point
85 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
141 mm
Nominal current
180 mA
Nominal output current
700 mA 4)
Nominal output power
35 W 1)
Nominal output voltage
30…50 V 2)
Nominal voltage
220…240 V
Output current tolerance
±5 %
Output ripple current (100 Hz)
< 5 %
Overheating protection
No
Overload protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
10…90 % 1)
Power factor λ
0.95 6)
Prewired
No
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
158.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Yes
Standards
Acc. to EN 61347
Suitable for emergency lighting
No
Surge capability (L-N)
1 kV
Temperature range at storage
-20…+75 °C
Temperature range in operation
-20…+50 °C
Total harmonic distortion
18 % 5)
Type of connection, output side
Push terminal
Type of current
DC
Type of protection
IP20
U-OUT (working voltage)
60 V
Width
43.00 mm
Wire preparation length, input side
8,0 mm
Wire preparation length, output side
8,0 mm
