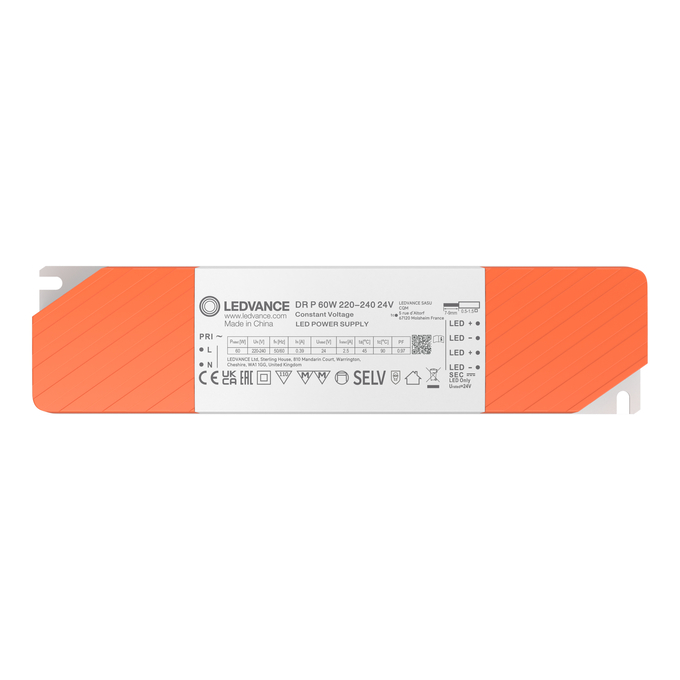

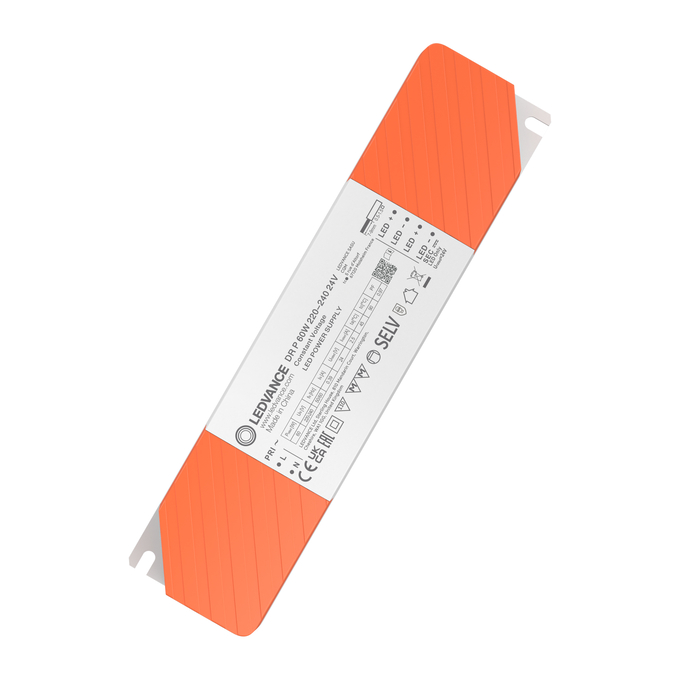

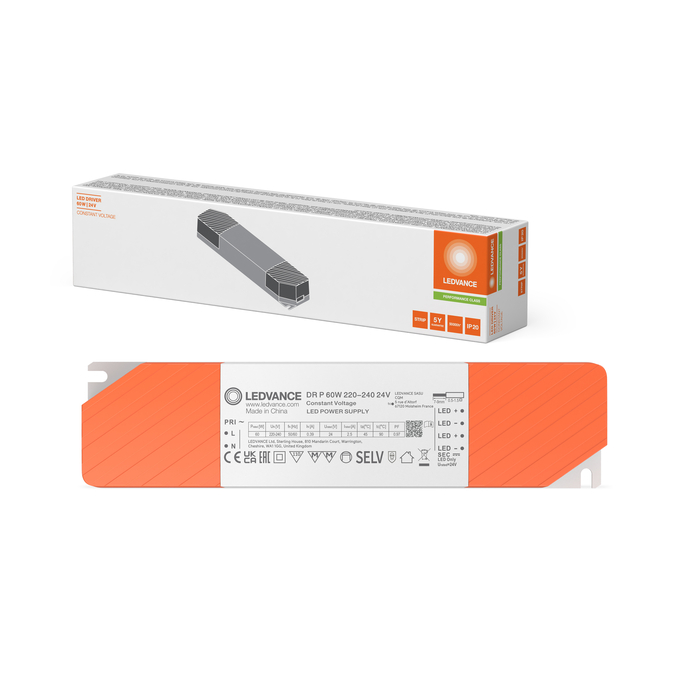

DR P 60W 220-240 24V
4099854683176
Product benefits
- Perfectly matched to 24 V LED flexible strips
- Excellent price/performance ratio
- Quick and simple installation
- Good efficiency and reliability
Areas of application
- Cove lighting, even in tight spaces
- For indoor SELV installations
- Offices, shopping centers, hospitals, restaurants, hotels
Product features
- Available in 30 W, 60 W, 120 W, 150 W, 200 W and 250 W
- Integrated cable clamp for independent installation
- Lifetime: up to 50,000 h (at max. tc temperature)
- Type of protection: IP20
- Supply voltage: 220…240 V
- Operating frequency: 50/60 Hz
- Operated with less than 60 V: Safety extra-low voltage (SELV)
- Reversible overtemperature, overload, short-circuit and open-circuit protection
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
- Do not open enclosure-housing.
References / Links
- For Guarantee see
Ambient temperature range
-20…+80 °C
Body material
Plastic
Cable cross-section, input side
0.5…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
7.4 W 7)
Dimmable
No
ECG efficiency
89 % 6)
ECG lifetime
50000 h 1)
Encapsulated
Yes
Galvanic isolation
SELV
GTIN
4099854683176
Height
31.00 mm
Input voltage AC
198…264 V 3)
Input voltage range
198…264 V
Inrush current
43.8 A
Length
194.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50…60 Hz
Max. cable length to lamp/LED module
0,8 m
Max. ECG no. on circuit breaker 10 A (B)
10
Max. ECG no. on circuit breaker 10 A (C)
16
Max. ECG no. on circuit breaker 16 A (B)
16
Max. ECG no. on circuit breaker 16 A (C)
27
Max. ECG no. on circuit breaker 25 A (B)
23
Max. ECG no. on circuit breaker 32 A (B)
29
Max. ECG no. on circuit breaker 32 A (C)
49
Max.housing temperature in case of fault
90 °C
Maximum temperature at tc test point
90 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
183 mm
No-load proof
Yes
Nominal current
390 mA
Nominal output current
0…2500 mA
Nominal output power
60 W 1)
Nominal output voltage
24 V 2)
Nominal voltage
220…240 V
Nominal wattage
60.00 W
Number of switching cycles
25000
Operating frequency
50/60 Hz
Output current tolerance
+/- 5 %
Output ripple current (120 Hz)
+/- 1.0 %
Overheating protection
Yes
Overload protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
20…90 %
Power factor λ
0.97 5)
Power loss in stand-by mode
≤0.5 W
Prewired
No
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Available from December 2025
Product weight
215.00 g
Protection class
II
Short-circuit protection
Yes
Standards
Acc. to EN 61347
Suitable for emergency lighting
No
Suitable for fixtures with prot. class
II
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-20…+80 °C
Temperature range in operation
-20…+45 °C
Total harmonic distortion
< 8 % 4)
Type of connection, output side
Screwless terminal
Type of current
AC
Type of protection
IP20
U-OUT (working voltage)
24 V
Width
40.00 mm
Wire preparation length, input side
7…9 mm
Wire preparation length, output side
7…9 mm
