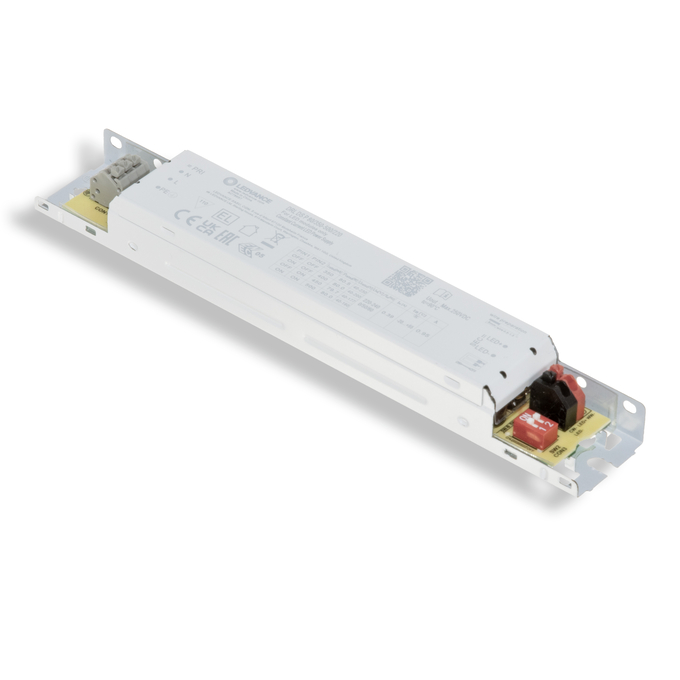

DR L DS P 80/350-500/230
4099854565410
Product benefits
- High flexibility due to adjustable output currents via dip switch (4 currents)
- Low flickering enables high light quality as well as good visual comfort
- Flexible dip switch current settings on device in 50mA steps
- High efficiency
Areas of application
- Suitable for LED luminaires and LED modules
- Applicable for luminaires of protection class I
- Suitable for indoor non-SELV installations
Product features
- Available in 20 W, 40 W, 60 W, 80 W, 100 W and 150 W
- Very long lifetime of up to 100,000 h
- Type of protection: IP20
- Low ripple current < 5%
- Supply voltage: 220…240 V
- ENEC-certified safety
- Safety according to EN 61347-1, 61347-2-13, 62384
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
- Do not open enclosure-housing.
Ambient temperature range
-20…+55 °C
Body material
CGCC
Casing material
CGCC
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
ECG efficiency
94 % 2)
ECG lifetime
100000 h / 50000 h 1)
Flickering metric (Pst LM)
≤1
GTIN
4099854565410
Height
21.00 mm
Input voltage AC
198…264 V 1)
Input voltage DC
220-240 V 1)
Input voltage range
198…264 V
Inrush current
65 A
Length
195.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
0/50/60 Hz
Max.housing temperature in case of fault
110 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal output current
350…500 mA
Nominal output power
80 W
Nominal output voltage
40…230 V
Nominal voltage
220…240 V
Number of switching cycles
100000
Operating frequency
0/50/60 Hz
Output current tolerance
±5 %
Output ripple current (100 Hz)
±5 %
Overheating protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
10…90 %
Power factor λ
≥0.95
Power loss in stand-by mode
< 0.5 W
Product recyclability
Mostly recyclable product 1)
Product weight
127.00 g
Protection class
I
Stroboscope effect metric (SVM)
≤0.4
Suitable for fixtures with prot. class
I
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-25…+85 °C
Temperature range in operation
-20…+55 °C
Total harmonic distortion
≤ 15 %
Type of current
DC
Type of protection
IP20
Width
30.00 mm
