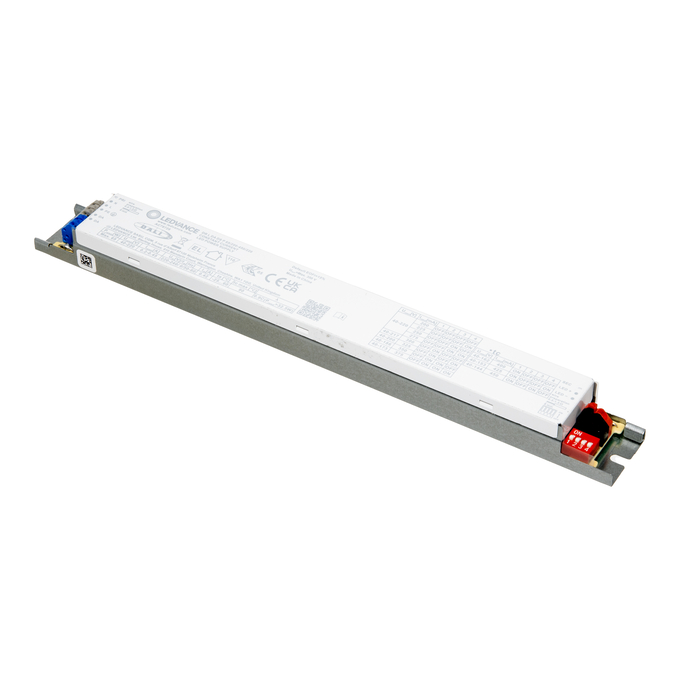

DR L DA DS P 65/200-450/220
4099854598098
Product benefits
- High flexibility due to adjustable output currents via dip switch (4 currents)
- Low flickering enables high light quality as well as good visual comfort
- Flexible dip switch current settings on device in 50 mA steps
- High efficiency
Areas of application
- Suitable for LED luminaires and LED modules
- Applicable for luminaires of protection class I
- Suitable for indoor non-SELV installations
Product features
- Available in 25 W, 47 W, 65 W, 90 W and 150 W
- Very long lifetime of up to 100,000 h
- Type of protection: IP20
- Low ripple current < 5%
- Supply voltage: 220…240 V
- ENEC-certified safety
- Safety according to EN 61347-1, 61347-2-13, 62384
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
- Do not open enclosure-housing.
Ambient temperature range
-25…+60 °C
Body material
SGCC
Casing material
SGCC
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
Yes
Dimming interface
DALI
ECG efficiency
93 % 3)
ECG lifetime
100000
Flickering metric (Pst LM)
GTIN
4099854598098
Height
22.00 mm
Input voltage AC
198…264 V 1)
Input voltage DC
180…270 V 1)
Input voltage range
198…264 V
Inrush current
26 A
Length
281.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50…60 Hz
Max.housing temperature in case of fault
Maximum temperature at tc test point
90 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal output current
200-450 mA
Nominal output voltage
40…220 V
Nominal voltage
220…240 V
Nominal wattage
65.00 W
Number of switching cycles
100000
Operating frequency
0/50/60 Hz
Output current tolerance
±5 %
Output ripple current (100 Hz)
< 5 %
Output ripple current (120 Hz)
5 %
Overheating protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
10…90 %
Power factor λ
0.98
Power loss in stand-by mode
0.35 W
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
210.00 g
Protection class
I
Stroboscope effect metric (SVM)
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-25…+85 °C
Total harmonic distortion
7 % 2)
Type of protection
IP20
Width
31.00 mm
