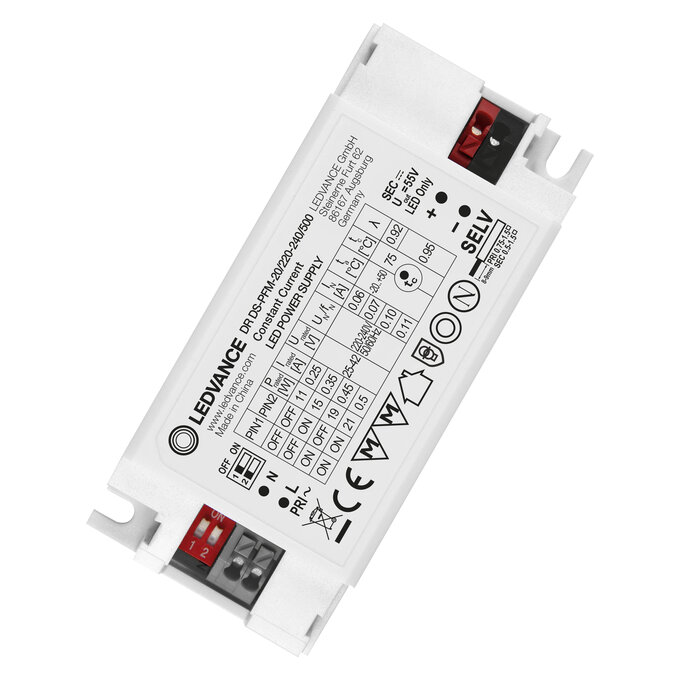

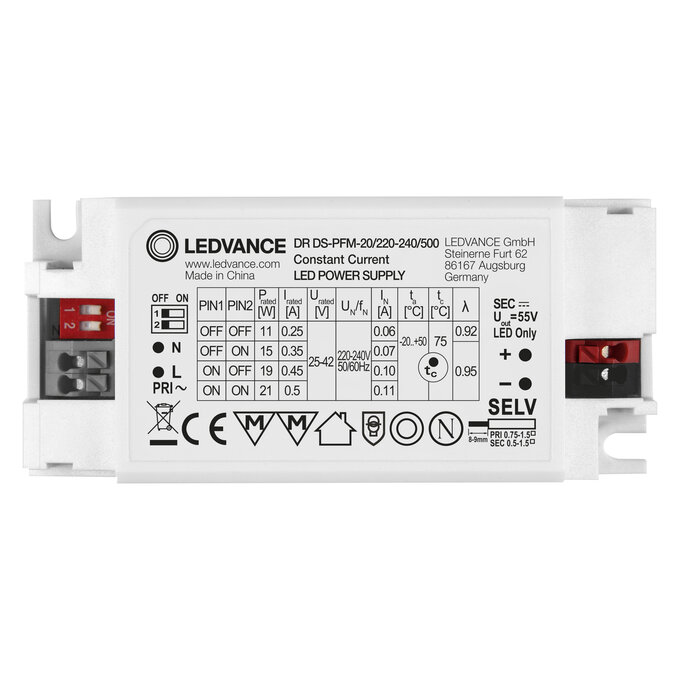

DR DS-PFM -20/220-240/500
4058075239753
Product benefits
- High flexibility due to adjustable output currents via dip switch
- Low flickering enables high light quality as well as good visual comfort
- Slim housing for narrow installations
- High efficiency and reliability
Areas of application
- Suitable for LED luminaires and LED modules
- Applicable for luminaires of protection classes I and II
- For indoor SELV installations
- Offices, shopping centers, hospitals, restaurants, hotels
- Suitable for a broad range of luminaires (by broad range of dip switch currents)
Product features
- Available in 20 W, 30 W, 40 W

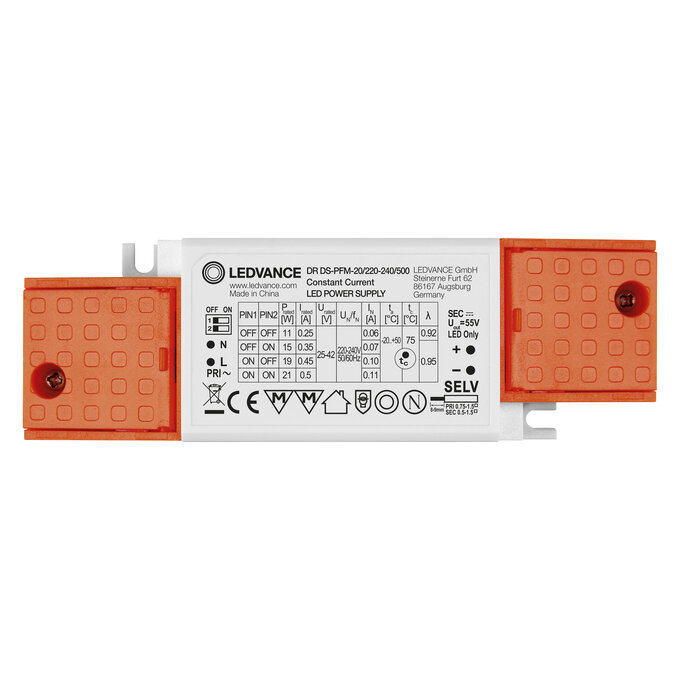

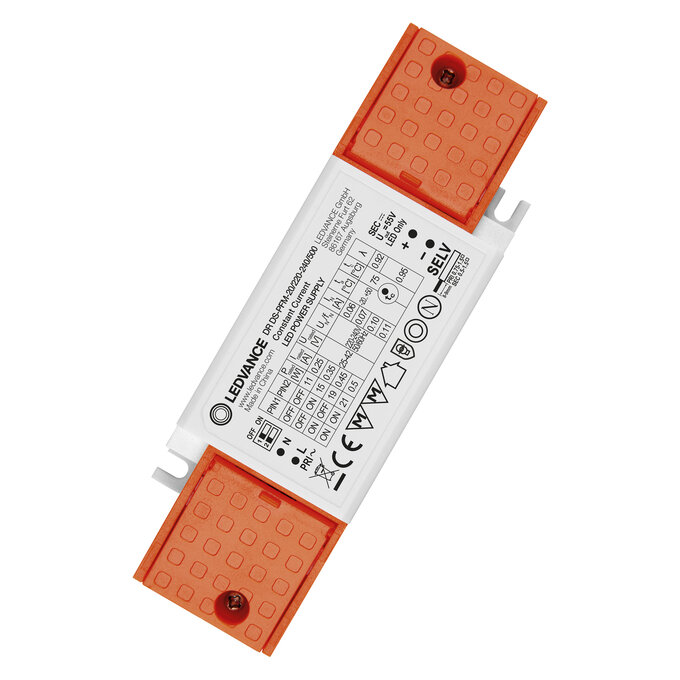

- Independent installation with optional Cable Clamp Kit
- Lifetime: up to 50,000 h (at max. tc temperature)
- Type of protection: IP20
- Low ripple current < 5%
- Supply voltage: 220…240 V
- Operating frequency: 50/60 Hz
- Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384
- Immunity according to EN 61547
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
- Do not open enclosure-housing.
References / Links
- For Guarantee see
Ambient temperature range
-20…+50 °C
Approval marks – approval
Nem
Body material
Plastic
Cable cross-section, input side
0.75…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Device power loss
3,1 W 8)
Dimmable
No
Dimming interface
Not dimmable
ECG efficiency
85 % 7)
ECG lifetime
50000 h 1)
Encapsulated
No
Galvanic isolation
SELV
GTIN
4058075239753
Height
30.00 mm
Input voltage AC
198…264 V 3)
Inrush current
20 A
Length
98.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50…60 Hz
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
35
Max. ECG no. on circuit breaker 16 A (B)
56
Max. ECG no. on circuit breaker 25 A (B)
88
Max.housing temperature in case of fault
95 °C
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
88,0 mm
Nominal current
110 mA
Nominal output current
250
Nominal output power
20 W 1)
Nominal output voltage
25…42 V 2)
Nominal voltage
220…240 V
Output current tolerance
±5 %
Output ripple current (100 Hz)
< 5 %
Overheating protection
No
Overload protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
10…90 % 1)
Power factor λ
0.95 6)
Prewired
No
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
124.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Yes
Standards
Acc. to EN 61347
Suitable for emergency lighting
No
Suitable for fixtures with prot. class
II
Surge capability (L-N)
0.5 kV
Temperature range at storage
-20…+75 °C
Temperature range in operation
-20…+50 °C
Total harmonic distortion
16 % 5)
Type of connection, output side
Push terminal
Type of current
DC
Type of protection
IP20
U-OUT (working voltage)
55 V
Width
44.00 mm
Wire preparation length, input side
8.0…9.0 mm
Wire preparation length, output side
8.0…9.0 mm
