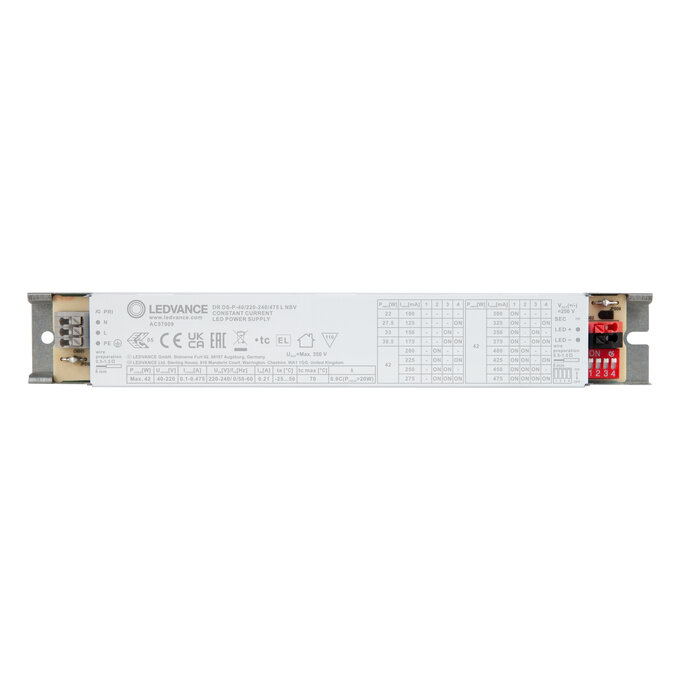

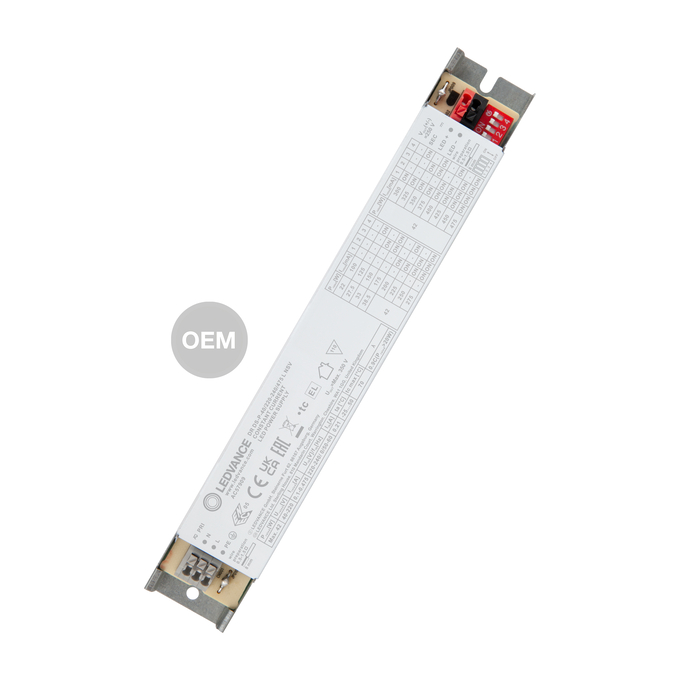

DR DS-P -40/220-240/475 L NSV OEM
4099854264948
Product benefits
- High flexibility due to adjustable output currents via dip switch (16 currents)
- Low flickering enables high light quality as well as good visual comfort
- Flexible dip switch current settings on device in 25mA steps
- Geometry according to Zhaga specification
- High efficiency
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- 5 years guarantee
Areas of application
- Suitable for LED luminaires and LED modules
- Applicable for luminaires of protection class I
- Suitable for indoor non-SELV installations
- Suitable for emergency installations
- Linear lighting for office, education, industry, storage areas and retail
Product features
- Available in 40 W, 60 W, 90 W and 150 W
- Very long lifetime of up to 100,000 h
- Type of protection: IP20
- Low ripple current < 5%
- Supply voltage: 220…240 V
- Operating frequency: 0/50/60 Hz
- ENEC-certified safety
- Safety according to EN 61347-1, 61347-2-13, 62384
- Immunity according to EN 61547
References / Links
- For Guarantee see
Ambient temperature range
-25…+50 °C
Body material
Metal
Cable cross-section, input side
0.5…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Met
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
5 W
Dimmable
No
ECG efficiency
92 % 4)
ECG lifetime
100000 h 1)
Encapsulated
Yes
GTIN
4099854264948
Height
22.00 mm
Input voltage AC
198…264 V 1)
Input voltage DC
180…270 V 1)
Inrush current
20 A 3)
Length
211.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1) N,N-Dimethylformamide (68-12-2)
Mains frequency
0/50/60 Hz
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
16
Max. ECG no. on circuit breaker 10 A (C)
28
Max. ECG no. on circuit breaker 13 A (B)
20
Max. ECG no. on circuit breaker 13 A (C)
34
Max. ECG no. on circuit breaker 16 A (B)
26
Max. ECG no. on circuit breaker 16 A (C)
42
Max.housing temperature in case of fault
< 110 °C
Maximum temperature at tc test point
70 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
200.00 mm
Nominal current
0.21 A
Nominal output current
100-475 mA 2)
Nominal output power
42 W
Nominal output voltage
40…220 V
Number of switching cycles
100000
Output current tolerance
±4.5 %
Output ripple current (100 Hz)
5 %
Output ripple current (120 Hz)
5 %
Overheating protection
Yes
Overload protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 %
Power factor λ
> 0.97 4)
Prewired
No
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
139.00 g
Protection class
I
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Yes
Standards
Acc. to EN 61347
Suitable for emergency lighting
Yes
Suitable for fixtures with prot. class
I
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-40…+85 °C
Total harmonic distortion
10 % 4)
Type of connection, output side
Push terminal
Type of protection
IP20
Width
31.00 mm
Wire preparation length, input side
8.00 mm
Wire preparation length, output side
8.00 mm
