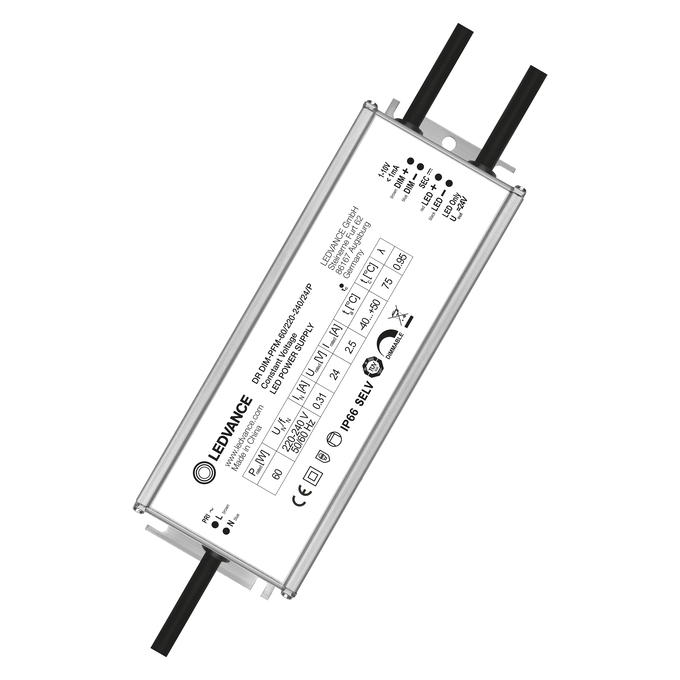

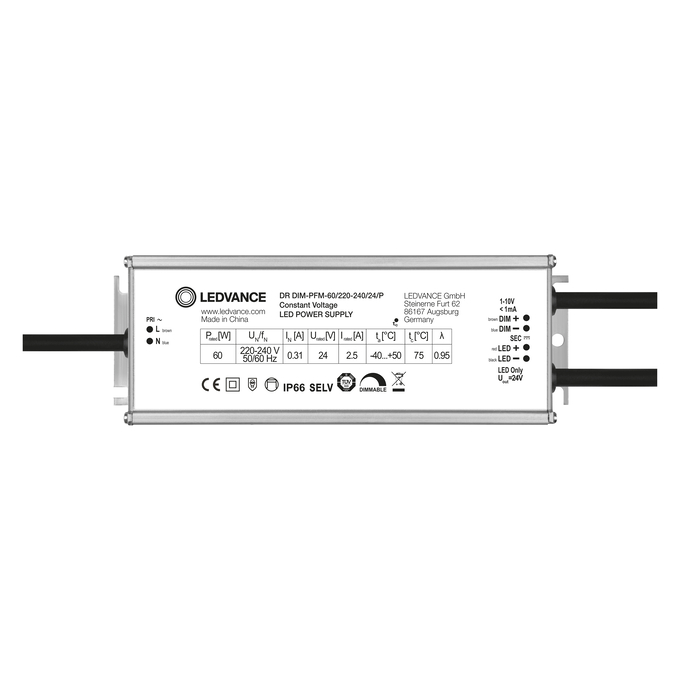

DR DIM-PFM -60/220-240/24/P
4058075379190
Product benefits
- Perfectly matched to 24 V LED flexible strips
- 5 years guarantee
- Very stable output power
- Quick and simple installation due to prewiring
- High efficiency and reliability
- Installation in very cold and hot environments
Areas of application
- Suitable for indoor and outdoor installations
- Facade and building illumination
- Ideal for illuminating public spaces
- Bathrooms, kitchens and outdoor areas
- Offices, shopping centers, hospitals, restaurants, hotels
Product features
- Available in 20 W, 40 W, 60 W, 100 W, 150 W and 250 W
- Dimmable via 1…10 V dimming control
- Dimmable from 10…100 %
- Lifetime: up to 50,000 h (at max. tc temperature)
- Type of protection: IP66
- Operating temperature range at ta: -40…50 °C
- Supply voltage: 220…240 V
- Operating frequency: 50/60 Hz
- Surge protection: up to 6 kV (L-N), 6 kV (L/N-PE)
- Short-circuit and overload protection
References / Links
- For Guarantee see
Ambient temperature range
-40…+50 °C
Body material
Metal
Cable cross-section, input side
1 mm²
Cable cross-section, output side
1 mm²
Casing material
Metal
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
9.1 W 8)
Dimmable
Yes
Dimming interface
1…10 V
Dimming range
10…100 %
ECG efficiency
87 % 7)
ECG lifetime
50000 h 1)
Encapsulated
Yes
Galvanic isolation
SELV
GTIN
4058075379190
Height
38.00 mm
Input voltage AC
198…264 V 3)
Inrush current
35 A
Length
179.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50…60 Hz
Max. cable length to lamp/LED module
10 m
Max. ECG no. on circuit breaker 10 A (B)
17
Max. ECG no. on circuit breaker 16 A (B)
21
Max. ECG no. on circuit breaker 25 A (B)
33
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
170,0 mm
Nominal current
322 mA
Nominal output current
2500 mA 4)
Nominal output power
60 W 1)
Nominal output voltage
24 V 2)
Nominal voltage
220…240 V
Nominal wattage
60.00 W
Output ripple current (100 Hz)
3.68 %
Overheating protection
No
Overload protection
No
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
20…95 % 1)
Power factor λ
0.95 6)
Prewired
Yes
Product color
Aluminum
Product recyclability
Mostly recyclable product 1)
Product weight
740.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Yes
Standards
Acc. to EN 61347
Suitable for emergency lighting
No
Surge capability (L-N)
6 kV
Surge capability (L/N-Ground)
6 kV
Temperature range at storage
-40…+80 °C
Temperature range in operation
-40…+50 °C
Total harmonic distortion
< 20 % 5)
Type of connection, output side
Cables
Type of current
DC
Type of protection
IP66
U-OUT (working voltage)
24 V
Width
63.00 mm
