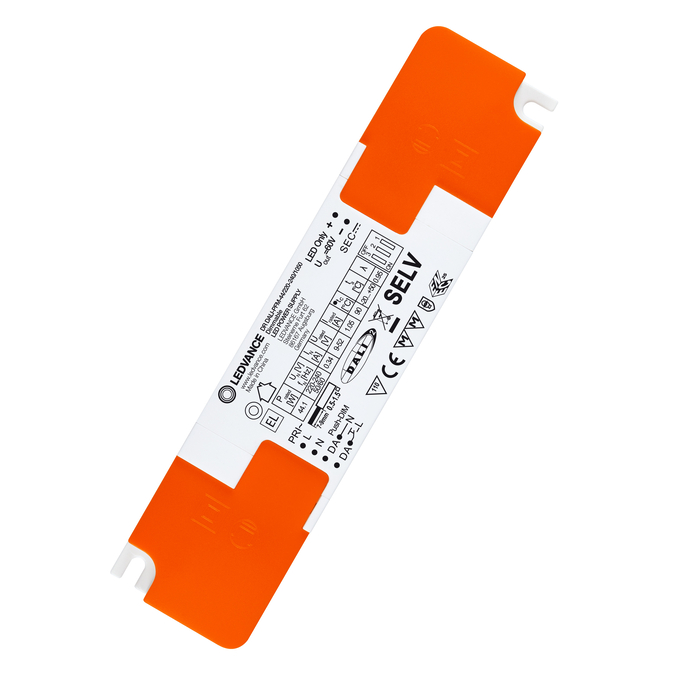

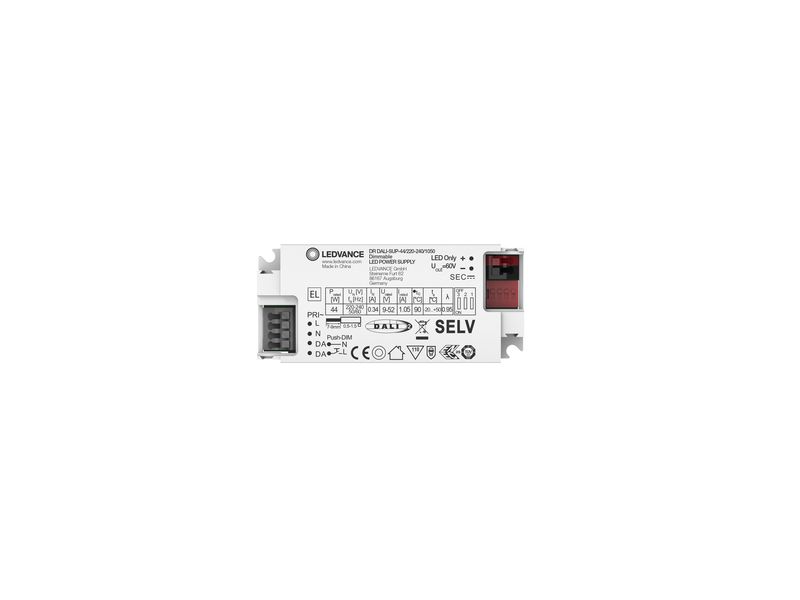

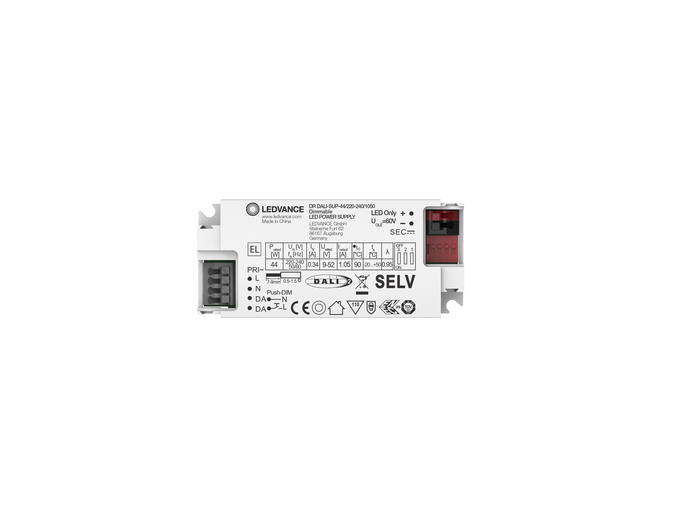

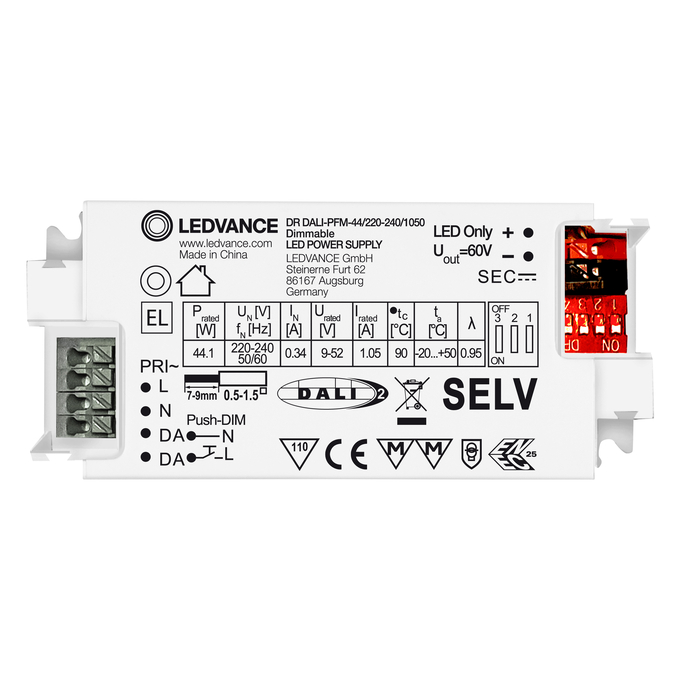

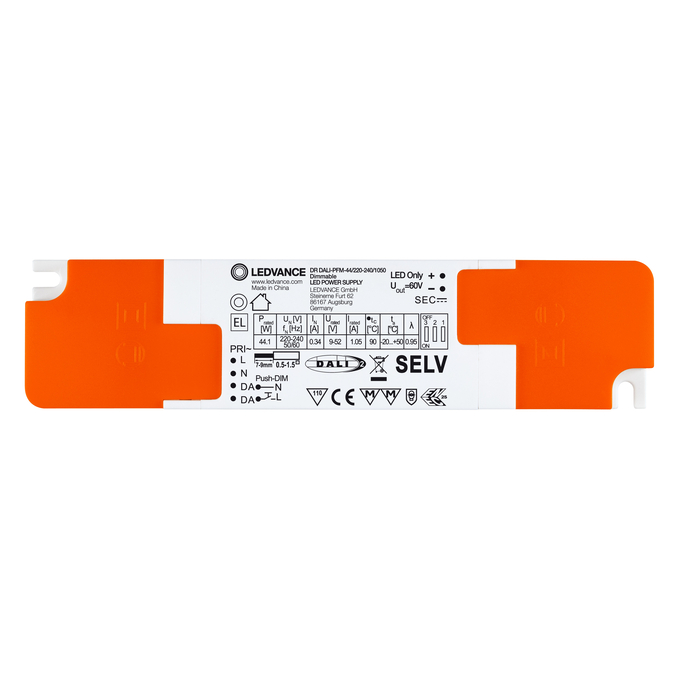

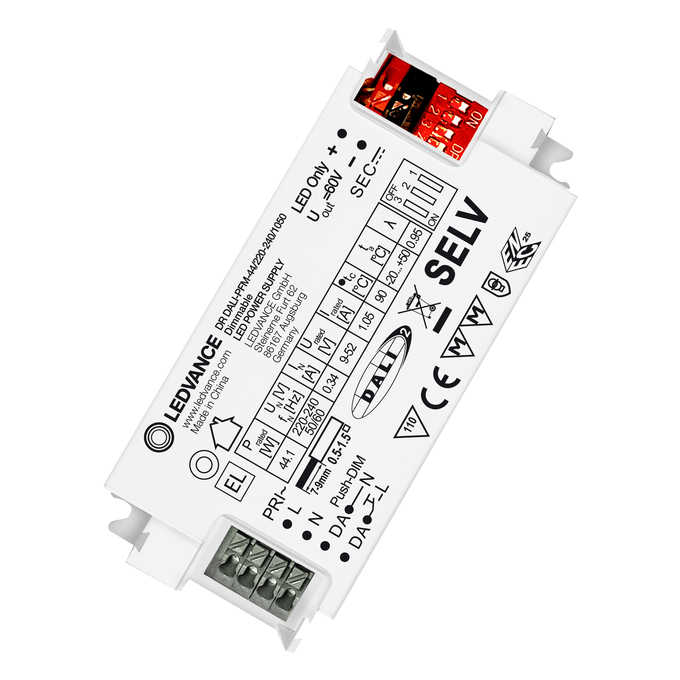

DR DALI-PFM -44/220-240/1050
4058075421905
Product benefits
- Low flickering enables high light quality as well as good visual comfort
- Push-DIM application for easy control
- High-quality dimming of 1…100 %
- Suitable for emergency lighting
- 5 years guarantee
Areas of application
- Suitable for indoor SELV installations
- Suitable for use in emergency lighting systems (DC capable)
- Installation via possible (depending on version of product)
- Linear lighting for office, education, storage areas and retail
Product features
- 1-channel DALI-2-certified LED driver
- Supply voltage: 220…240 V
- Operated with Safety extra-low voltage (SELV): < 60 V
- Available with output current range: up to 1,400 mA
- Type of installation: independent and built-in
References / Links
- For Guarantee see
Ambient temperature range
-20…+50 °C
Body material
Plastic
Cable cross-section, input side
0,5…1,0 mm²
Cable cross-section, output side
0,5…1,0 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
10.4 W 8)
Dimmable
Yes
Dimming interface
DALI-2
Dimming range
1…100 %
ECG efficiency
88 % 7)
ECG lifetime
50000 h 1)
Encapsulated
Yes
Galvanic isolation
SELV
GTIN
4058075421905
Height
32.00 mm
Input voltage AC
198…264 V 3)
Input voltage DC
196…245 V
Inrush current
30 A
Length
90.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
0/50/60 Hz
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
13
Max. ECG no. on circuit breaker 16 A (B)
21
Max. ECG no. on circuit breaker 25 A (B)
34
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
90 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
90 mm
No-load proof
Yes
Nominal current
275 mA
Nominal output current
1050 mA 4)
Nominal output power
44 W 1)
Nominal output voltage
9…52 V 2)
Nominal voltage
220…240 V
Operating frequency
0/50/60 Hz
Output current tolerance
±5 %
Output ripple current (100 Hz)
+/- 5 %
Overheating protection
Yes
Overload protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
0.95 6)
Power loss in stand-by mode
< 0.5 W
Prewired
No
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
180.00 g
Protection class
I
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Yes
Standards
Acc. to EN 61347
Suitable for emergency lighting
Yes
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-40…+85 °C
Temperature range in operation
-20…+50 °C
Total harmonic distortion
< 10 % 5)
Type of connection, output side
Push terminal
Type of current
DC
Type of protection
IP00
U-OUT (working voltage)
60 V
Width
44.00 mm
Wire preparation length, input side
6…7 mm
Wire preparation length, output side
6…7 mm
