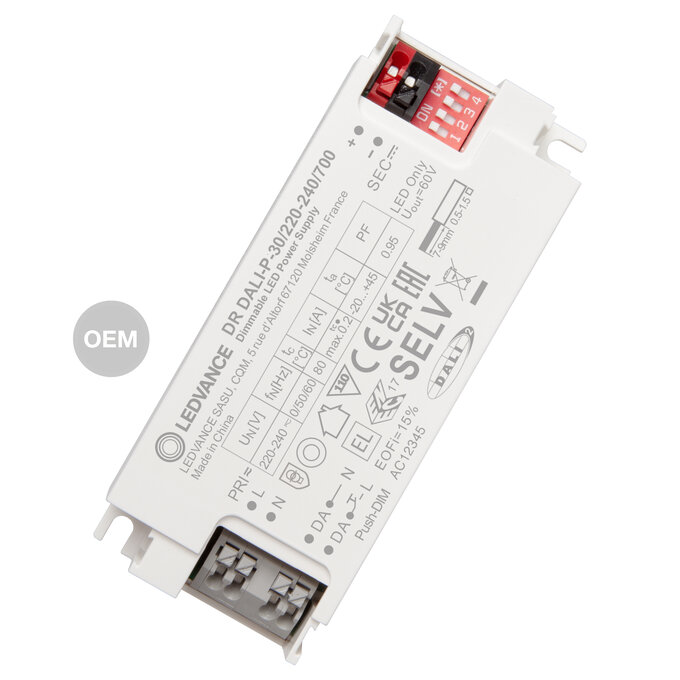

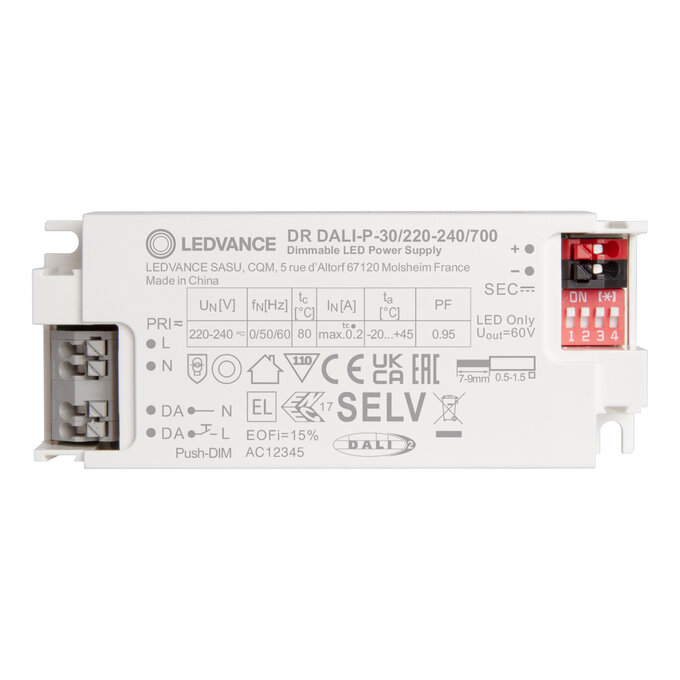

DR DALI-P -30/220-240/700 OEM
4058075845404
Product benefits
- Flexible dip switch current settings on device in 50mA steps
- DALI-2 certified incl. Parts 251, 252, 253
- Push-DIM application for easy control
- Low flickering enables high light quality as well as good visual comfort
- High-quality dimming of 1…100 %
- Toolless installation
Areas of application
- Luminaires of protection class I and II
- Indoor SELV installations
- Suitable for LED T5 FC EXTERNAL P
- Emergency lighting systems (DC capable)
- Cove lighting
- Offices
- Education
- Storage areas
Product features
- 1-channel DALI-2-certified LED driver
- Available with output current range: from 150...1,050 mA
- Type of installation: independent and built-in
- Suitable for emergency lighting fixtures acc.to EN 60598-2-2 with emergency output factor EOFI=15%
- Quick and easy current setting via Dip-Switch
- Very long lifetime of up to 100,000 h
- Supply voltage: 220…240 V
- Operated with Safety extra-low voltage (SELV): < 60 V
Equipment / Accessories
- Cable clamps for independent operation
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
- Do not open enclosure-housing.
References / Links
- For Guarantee see
Ambient temperature range
-20…+45 °C
Body material
Plastic
Cable cross-section, input side
0.5…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
3.7 W
Dimmable
Yes
Dimming interface
DALI
Dimming range
1…100 %
ECG efficiency
89 %
ECG lifetime
100000 h 1)
Encapsulated
Yes
Galvanic isolation
SELV
GTIN
4058075845404
Height
25.00 mm
Input voltage AC
198…264 V 1)
Input voltage DC
198…264 V
Inrush current
5.13 A
Length
105.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
0/50/60 Hz
Max. cable length to lamp/LED module
0,8 m
Max. ECG no. on circuit breaker 10 A (B)
40
Max. ECG no. on circuit breaker 10 A (C)
40
Max. ECG no. on circuit breaker 16 A (B)
64
Max. ECG no. on circuit breaker 16 A (C)
64
Max. ECG no. on circuit breaker 25 A (B)
100
Max. ECG no. on circuit breaker 25 A (C)
100
Max. ECG no. on circuit breaker 32 A (B)
128
Max. ECG no. on circuit breaker 32 A (C)
128
Max.housing temperature in case of fault
Maximum temperature at tc test point
85 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
97,0 mm
No-load proof
Yes
Nominal current
200 mA
Nominal output current
150
Nominal output power
30 W
Nominal output voltage
2.5…49 V
Nominal voltage
220…240 V
Number of switching cycles
60000
Operating frequency
0/50/60 Hz
Output current tolerance
+/- 5 %
Output ripple current (120 Hz)
+/- 3.0 %
Overheating protection
Yes
Overload protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
20…90 %
Power factor λ
> 0.95 3)
Power loss in stand-by mode
≤0.3 W
Prewired
No
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
98.00 g
Protection class
II
Short-circuit protection
Yes
Standards
Acc. to EN 61347
Suitable for emergency lighting
Yes
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-20…+80 °C
Temperature range in operation
-20…+45 °C
Total harmonic distortion
5 % 3)
Type of connection, output side
Push terminal
Type of current
DC
Type of protection
IP20
U-OUT (working voltage)
60 V
Width
45.00 mm
Wire preparation length, input side
7…9 mm
Wire preparation length, output side
7…9 mm
