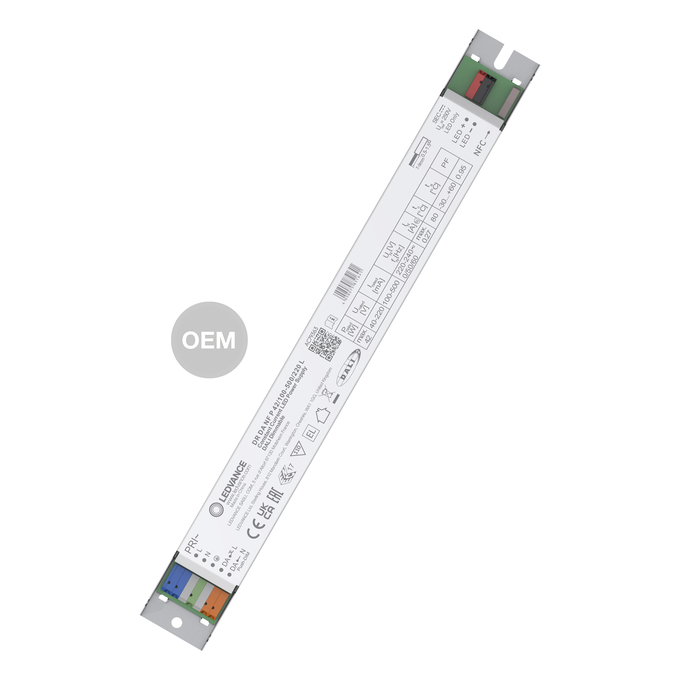

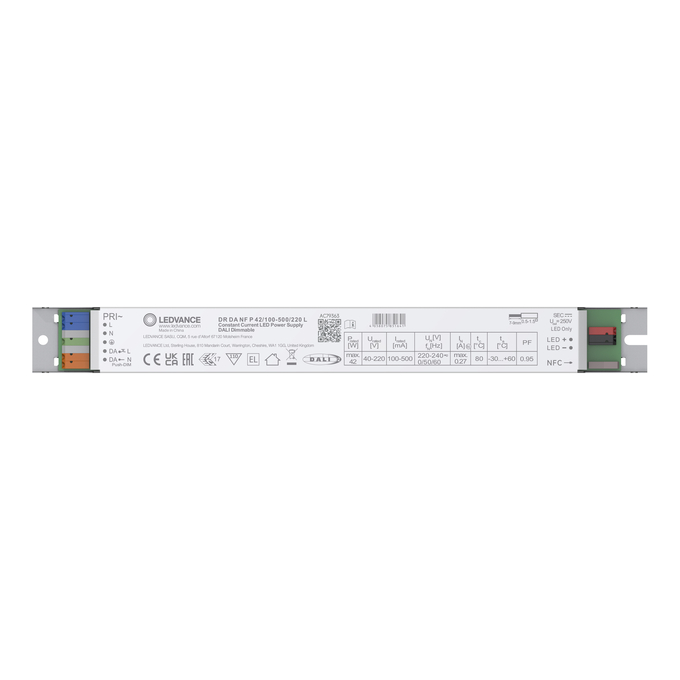

DR DALI NFC P 42/100-500/220 L OEM
4058075851641
Product benefits
- DALI-2 certified incl. Parts 251, 252, 253
- Fully programmable via NFC
- Push-DIM application for easy control
- High efficiency
- LED module interchangeable and future-proof thanks to Zhaga conformity
- High-quality dimming of 1…100 %
- Available in 26 W, 42 W, 60 W, 90 W and 150 W
Areas of application
- Suitable for LED luminaires and LED modules
- Applicable for luminaires of protection class I
- Suitable for indoor non-SELV installations
- Suitable for emergency installations
- Linear lighting for office, education, storage areas and retail
Product features
- 1-channel DALI-2-certified LED driver
- Quick and easy current setting via NFC
- Available with output current range: from 50...1,100 mA
- Very long lifetime of up to 100,000 h
- Constant Lumen Output (CLO)
- Compatible to Zhaga Book 13
- Suitable for emergency lighting fixtures acc.to EN 60598-2-2 with emergency output factor EOFI (adjustable via NFC)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
- Do not open enclosure-housing.
References / Links
- For Guarantee see
Ambient temperature range
-30…+60 °C
Body material
Metal
Cable cross-section, input side
0.5…1.5 mm²
Cable cross-section, output side
0.5…1.5 mm²
Casing material
Metal
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
Yes
Dimming interface
DALI
Dimming range
1…100 %
ECG efficiency
92 %
ECG lifetime
100000 h 1)
Encapsulated
Yes
Galvanic isolation
N-SELV
GTIN
4058075851641
Height
21.00 mm
Input voltage AC
198…264 V 1)
Input voltage DC
176…280 V
Inrush current
15.9 A
Length
280.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
0/50/60 Hz
Max. cable length to lamp/LED module
0,8 m
Max. ECG no. on circuit breaker 10 A (B)
16
Max. ECG no. on circuit breaker 10 A (C)
28
Max. ECG no. on circuit breaker 16 A (B)
26
Max. ECG no. on circuit breaker 16 A (C)
42
Max.housing temperature in case of fault
Maximum temperature at tc test point
80 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
267 mm
No-load proof
Yes
Nominal current
270 mA
Nominal output current
100…500 mA 2)
Nominal output power
42 W
Nominal output voltage
40…220 V
Nominal voltage
220…240 V
Number of switching cycles
100000
Operating frequency
0/50/60 Hz
Output current tolerance
+/- 5 %
Output ripple current (120 Hz)
±1.5 %
Overheating protection
Yes
Overload protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
20…90 %
Power factor λ
> 0.95 4)
Power loss in stand-by mode
0.2 W 5)
Prewired
No
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
196.00 g
Protection class
I
Short-circuit protection
Yes
Standards
Acc. to EN 61347
Suitable for emergency lighting
Yes
Suitable for fixtures with prot. class
I
Surge capability (L-N)
1 kV
Surge capability (L/N-Ground)
2 kV
Temperature range at storage
-40…+80 °C
Temperature range in operation
-30…+60 °C
Total harmonic distortion
< 10 % 3)
Type of connection, output side
Push terminal
Type of current
AC/DC
Type of protection
IP20
U-OUT (working voltage)
40…220 V
Width
30.00 mm
Wire preparation length, input side
7…9 mm
Wire preparation length, output side
7…9 mm
