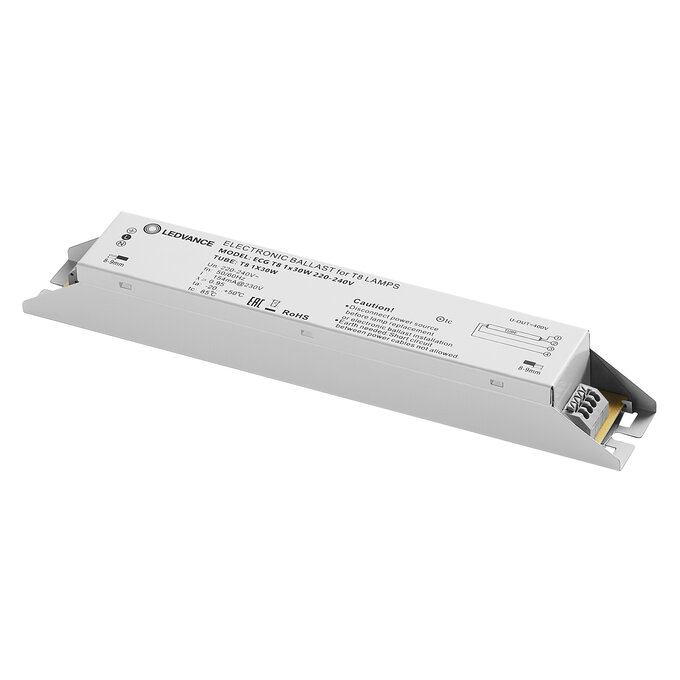

T8 ECG 2X30/220…240 V
4058075534827
Product benefits
- Specially designed for T8 UVC lamps to implement excellent lamp performance characteristics
- No adverse effect from frequent on/off switching
- Long lamp lifetime with matched driver
Areas of application
- Water disinfection including UV units for drinking water, wastewater, swimming pools
- For use with UV recirculators, UV irradiators, HVAC disinfection systems
- Air purification
- Surface sterilization
- Food industry
- Offices, schools
- Healthcare
- Warehouses
Product features
- Lifetime: up to 20000 h (temperature at Ta=50 °C, Tc=80°C)
- Power factor: ≥0.95
- Safety complies with EN 61347-1, EN 61347-2-3
- Radio interference complies with EN 55015
- Harmonic distortion complies with EN 61000-3-2
- EMC immunity complies with EN 61000-3-3, EN 61547
- Performance complies with EN 62493
Ambient temperature range
-20…+50 °C
Body material
Plastic
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
No
Dimming interface
Not dimmable
ECG efficiency
≧85 %
ECG lifetime
10000 h
GTIN
4058075534827
Height
30.00 mm
Length
238.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50/60 Hz
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
85 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
220…240 V
Nominal wattage
70.00 W
Number of switching cycles
10000
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…80 %
Power factor λ
≥ 0.95
Product recyclability
Mostly recyclable product 1)
Product weight
231.00 g
Protection class
I
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 25 %
Type of protection
IP20
Width
36.00 mm
