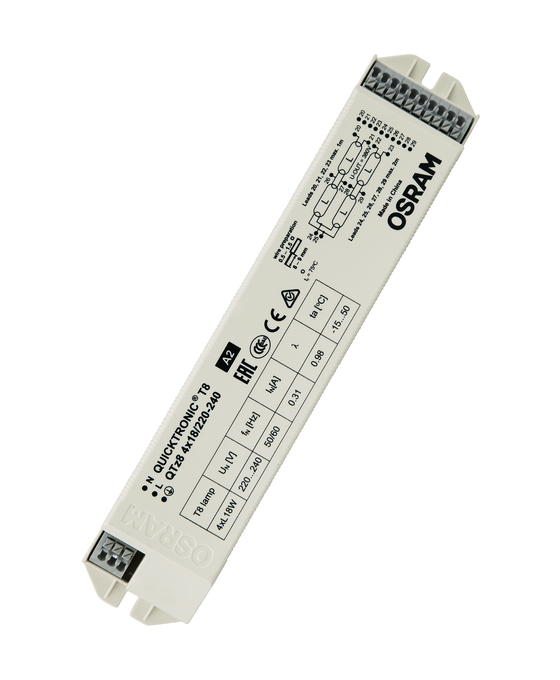

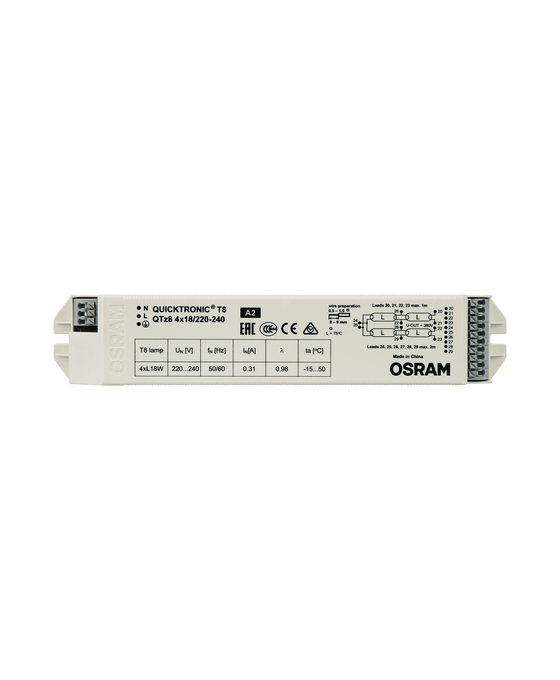

QTz8 4X18
4008321863362
Product benefits
- Compact housing
- Automatic restart after lamp replacement
Areas of application
- Public buildings
- Sports halls
- Strip lighting
- Suitable for luminaires of protection class I
Product features
- Supply voltage: 220…240 V
- Line voltage: 198…264 V
- Line frequency: 50 Hz | 60 Hz
- Energy Efficiency Index EEI: A2
- Number of lamp switching cycles: up to 3,500
Ambient temperature range
-15…+50 °C
Body material
Metal
Casing material
Metal
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
ECG lifetime
30000 h 1)
EEI – Energy Label
A2
Energy efficiency class
A3
GTIN
4008321863362
Height
30.00 mm
Length
210.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50…60 Hz
Max. cable length to lamp/LED module
2.0 m / 1.0 m
Max.housing temperature in case of fault
110 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
200,0 mm
Nominal voltage
220…240 V
Nominal wattage
72.00 W
Operating frequency
30…45 kHz
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Product recyclability
Mostly recyclable product 1)
Product weight
155.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Suitable for fixtures with prot. class
I
Temperature range at storage
-40…+85 °C
Type of protection
IP20
Width
40.00 mm
