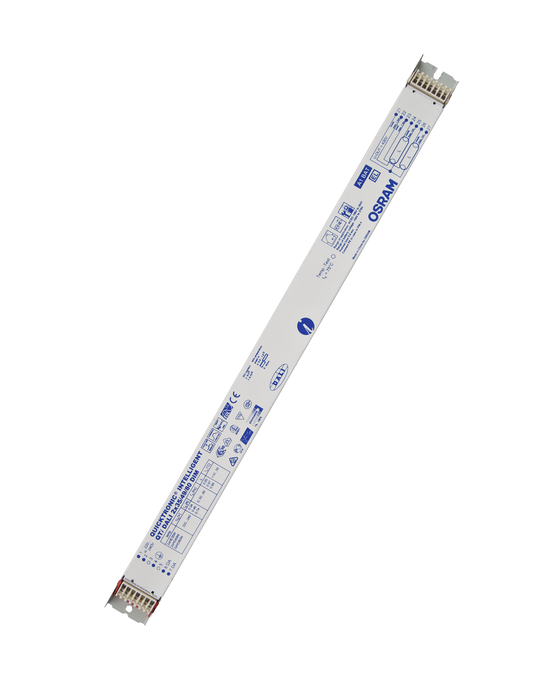

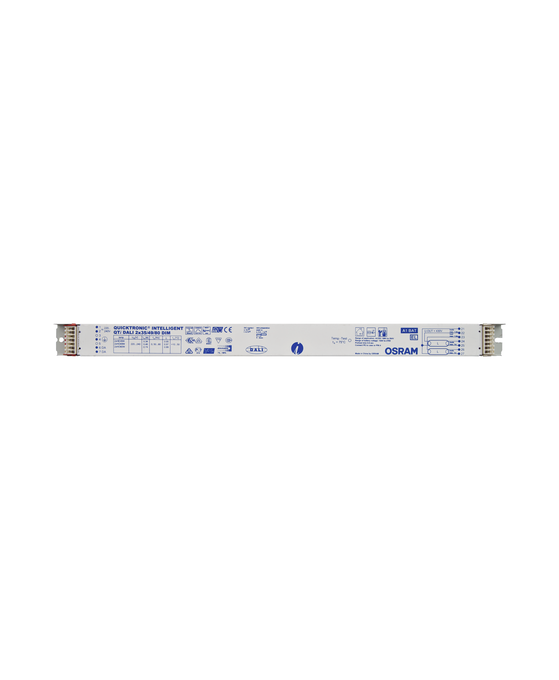

QTi DALI 2X35/49/80 DIM
4050300870441
Product benefits
- System+ Guarantee available
- Easy integration in luminaire thanks to same dimensions like DALI GI ECG
- TouchDIM function for easy and inexpensive dimming of several ECGs
- Same luminous flux with direct and alternating current
- Dimming of amalgam lamps without flickering or reduced lifespan
- Automatic restart after lamp replacement DALI product features
- Control via the DALI interface
- Compliance with the DALI Version-1 and IEC 60929
- Control input protected against overvoltage and polarity reversal (OSRAM ECG) Touch DIM and Touch DIM Sensor function
- Manual dimming without controller and with standard switches
- Including memory function (double click) and soft start
- Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
- Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
- Industry
- Open-plan offices, corridors and storage rooms
- Public buildings
- Sports halls and factories
- Strip lighting
- Shop lighting
- Suitable for luminaires of protection class I
- Corridor function for direct connection of ECG to common motion sensor
- Corridor function with pre-programmed light program
- Touch DIM function for free parameterization of light value and turn on time
- Fit for SMART GRID for feedback of consumed mains power and lamp operating hours
- Fit for emergency function for automatic detection of emergency lighting by ECG
- Very low standby power consumption: < 0.5 W
- Lifetime: > 100,000 h (for T = 65 °C at Tc)
- Very high number of switching cycles: up to 300,000
- Dimming range: 1…100 % (3…100 % with compact fluorescent lamp)
- POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifetime
- Line frequency: 0 Hz, 50…60 Hz, rectified AC
- For more information on the system guarantee and the terms and conditions of the guarantee visit
Areas of application
Product features
References / Links
Ambient temperature range
+10…+50 °C
Approval marks – approval
V
Body material
Metal
Cable cross-section, input side
0.5…1.5 mm
Cable cross-section, output side
0.5…1.5 mm
Casing material
Metal
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
Yes
Dimming interface
DA
Dimming range
1…100 % 1)
ECG lifetime
100000 h 1)
EEI – Energy Label
A1 BAT
End of lamp life safety shutdown
EOL T.2
Energy efficiency class
A1
GTIN
4050300870441
Height
21.00 mm
Input voltage AC
198…264 V
Input voltage DC
154…276 V
Inrush current
60 A
Length
423.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Max. cable length to lamp/LED module
1.0 m / 1.5 m
Max. ECG no. on circuit breaker 10 A (B)
5 1)
Max. ECG no. on circuit breaker 16 A (B)
9 1)
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
415,0 mm
Networked standby power for CLS
< 0.25 W
Nominal voltage
220…240 V
Nominal wattage
165.00 W
Operating frequency
44…120 kHz
Overheating protection
Power reduction and switch off at T > 75 °C at the tc point
Overload protection
Yes
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power loss in stand-by mode
0.2 W
Product recyclability
Mostly recyclable product 1)
Product weight
370.00 g
Protection class
1
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Standards
Acc. to EN 550
Starting time [PIM]
0.6 s
Suitable for fixtures with prot. class
I
Temperature range at storage
-40…+85 °C
Type of current
AC/DC
Type of protection
IP20
Width
30.00 mm
Wire preparation length, input side
8.0…9.0 mm 2)
Wire preparation length, output side
8.0…9.0 mm 2)
