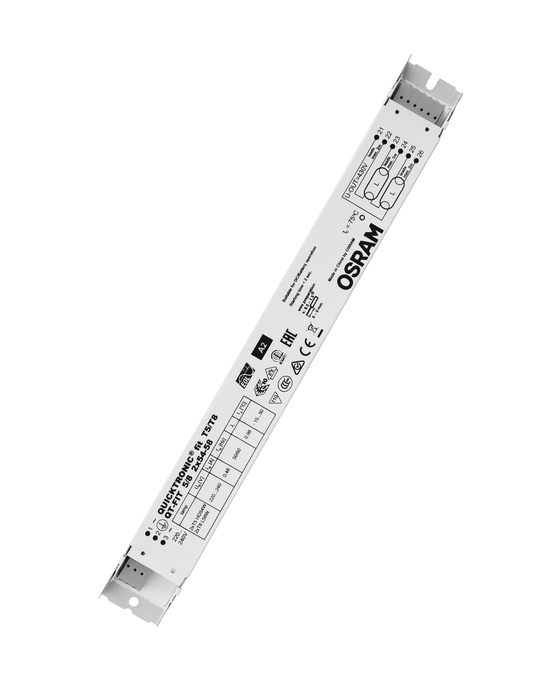

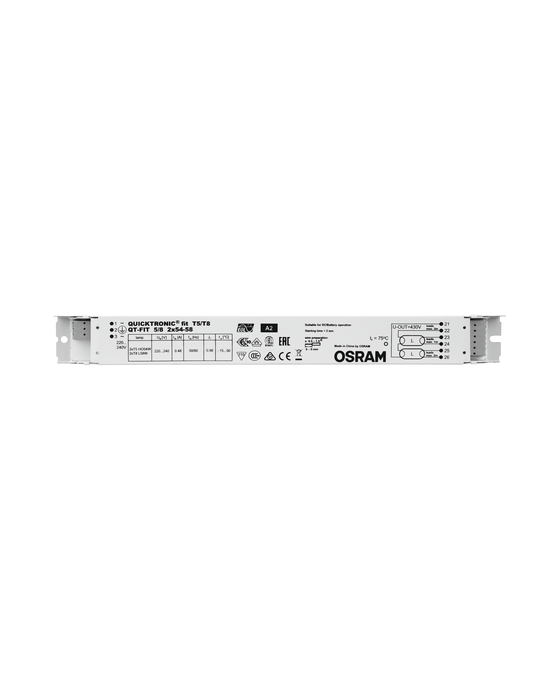

QT-FIT 5/8 2X54…58
4008321873842
Product benefits
- Long lamp life
- No adverse effect from frequent on/off switching
- Automatic restart after lamp replacement
- Perfect lamp start for applications with motion sensors
- VDE/VDE EMC certified system
- Very high energy efficiency due to cut-off technology
Areas of application
- Open-plan offices, corridors and storage rooms
- Public buildings
- Strip lighting
- Suitable for emergency lighting (DC operation)
- Suitable for luminaires of protection class I
- Modernization of existing systems
Product features
- Supply voltage: 220…240 V
- Line voltage: 198…264 V
- Line frequency: 50 Hz | 60 Hz
- Lamp start with optimum filament preheating
- Energy Efficiency Index EEI: A2
- Automatic shutdown of defective lamps and at end of life (EoL T.2)
- Lamp operation: to EN 60929
- Safety: to EN 61347-2-3
Ambient temperature range
-15…+50 °C
Body material
Metal
Cable cross-section, input side
0.5…1.5 mm² 1)
Cable cross-section, output side
0.5…1.5 mm² 1)
Casing material
Metal
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
ECG lifetime
50000 h
EEI – Energy Label
A2
End of lamp life safety shutdown
EOL T.2
Energy efficiency class
A2
GTIN
4008321873842
Height
21.00 mm
Input voltage AC
198…264 V
Input voltage DC
185…264 V 1)
Inrush current
53 A
Length
280.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Max. cable length to lamp/LED module
2.0 m / 1.0 m
Max. ECG no. on circuit breaker 10 A (B)
8 2)
Max. ECG no. on circuit breaker 16 A (B)
13 2)
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
270,0 mm
Nominal voltage
220…240 V
Nominal wattage
106.00 W
Operating frequency
40…50 kHz
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Product recyclability
Mostly recyclable product 1)
Product weight
183.00 g
Protection class
1
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Standards
Acc. to EN 61347-2-3/IEC 61347-2
Starting time [PIM]
2 s
Suitable for fixtures with prot. class
I
Temperature range at storage
-40…+85 °C
Type of protection
IP20
U-OUT (working voltage)
430 V
Width
30.00 mm
