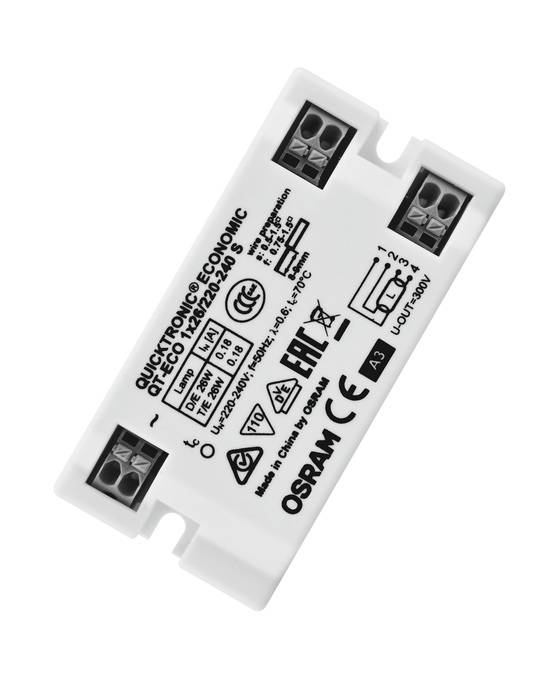

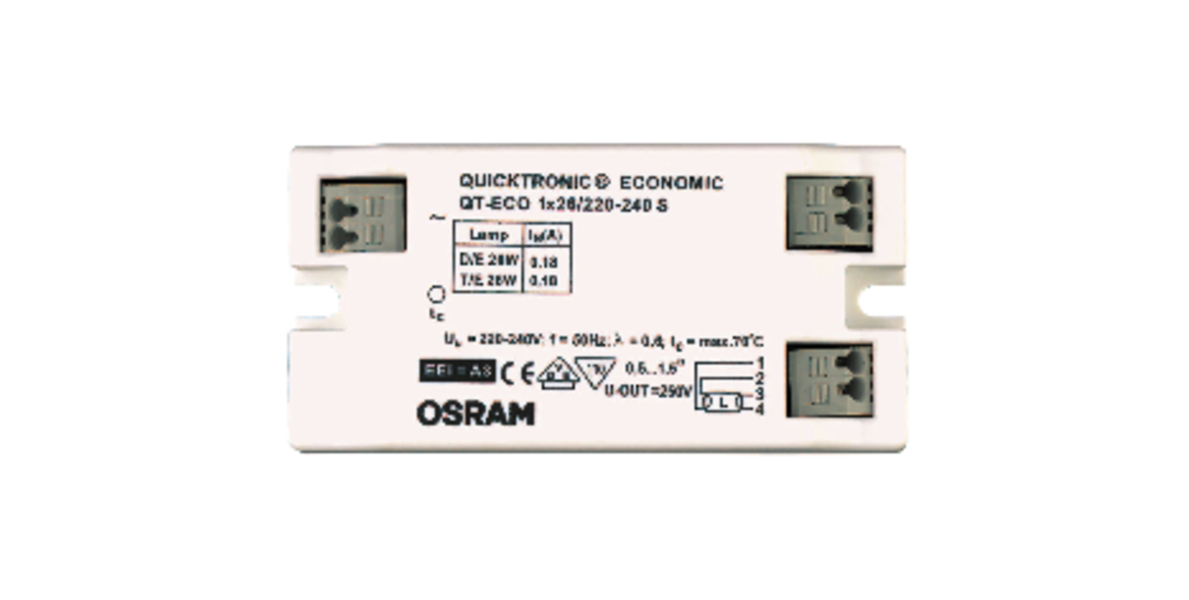

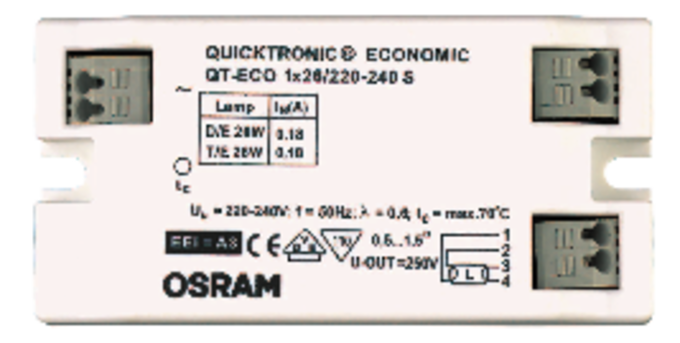

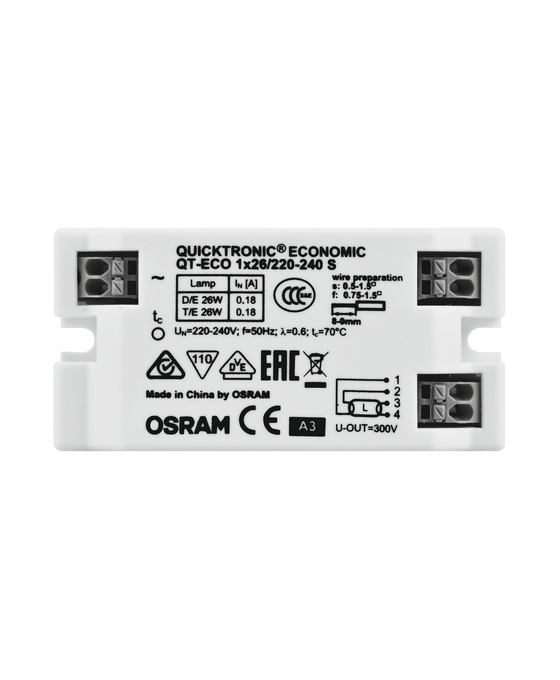

QT-ECO 1X26 S
4008321065971
Product benefits
- Compact housing
- Automatic restart after lamp replacement
- Large input voltage range
Areas of application
- Public buildings
Product features
- Supply voltage: 220…240 V
- Line voltage: 198…264 V
- Line frequency: 50 Hz
- Energy Efficiency Index EEI: A2 / A3 (depending on lamp)
- Automatic shutdown of defective lamps and at end of life (EoL)
Ambient temperature range
-15…+50 °C
Approval marks – approval
VDE
Body material
Plastic
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
ECG lifetime
30000 h 1)
EEI – Energy Label
A3
End of lamp life safety shutdown
EOL T.2
Energy efficiency class
A3
GTIN
4008321065971
Height
22.00 mm
Input voltage DC
176…254 V
Inrush current
14 A
Length
80.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50 Hz
Max. cable length to lamp/LED module
1.0 m / 0.5 m
Max. ECG no. on circuit breaker 10 A (B)
30
Max. ECG no. on circuit breaker 16 A (B)
50
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
70 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
72,0…75,0 mm
Nominal voltage
220…240 V
Nominal wattage
23.00 W
Operating frequency
35…45 kHz
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Product recyclability
Mostly recyclable product 1)
Product weight
50.00 g
Protection class
I/II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Standards
Acc. to EN 61347-2
Starting time [PIM]
1.5 s
Temperature range at storage
-40…+85 °C
Type of protection
IP20
U-OUT (working voltage)
300 V
Width
40.00 mm
