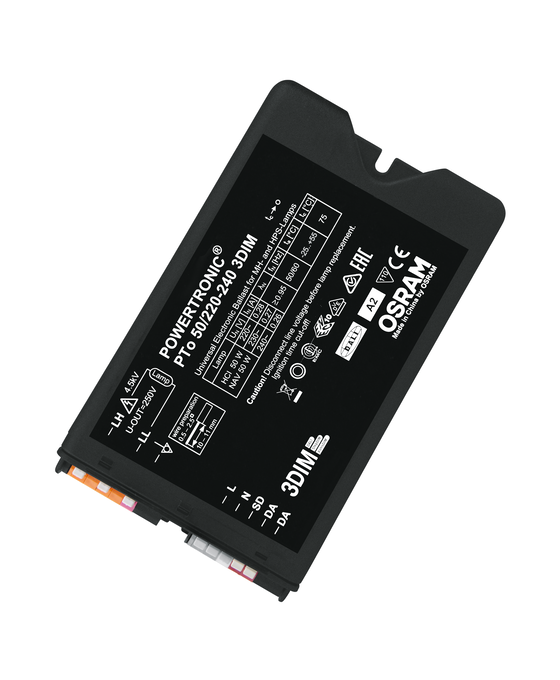

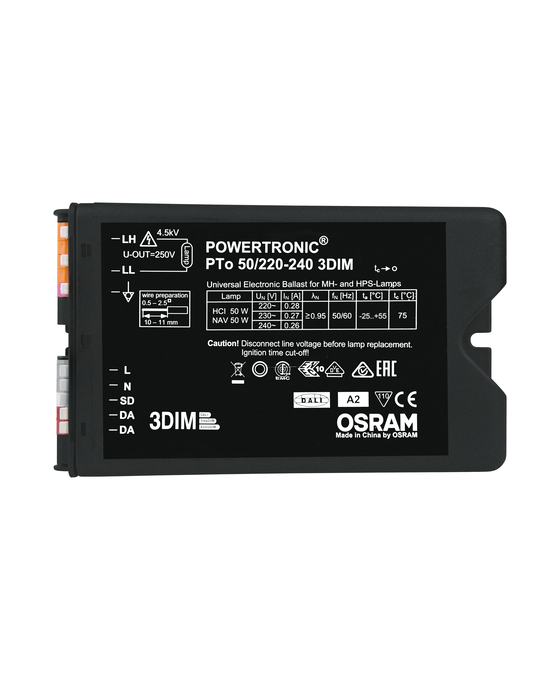

PTo 50/220…240 3DIM
4008321956347
Product benefits
- Energy savings up to 30 % (compared to CCG operation) thanks to 3DIM (except PTo 35)
- High surge protection: up to 3 kV (L-N) / 4 kV (L/N-PE)
- Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)
- Excellent thermal behavior for very high limit temperatures tc and ta
Areas of application
- Suitable for luminaires of protection classes I and II
- Suitable for outdoor applications in luminaires with IP > 54
Product features
- 3DIM functionality (StepDIM/AstroDIM/DALI)
- Energy Efficiency Index EEI: A2
- Lightning protection: up to 10 kV
- Supply voltage: 220…240 V
- Line frequency: 50…60 Hz
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
- RI suppression: to EN 55015
- Safety: to EN 61347-2-12
- Luminous flux factor 1 compared with CCG operation
- Not suitable for DC operation
Safety advice
Thermal characteristics Ballast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point tc of the ECG does not exceed the maximum value.Attention! For safety reasons disconnect the device before replacing the lamp!
Ambient temperature range
-25…+55 °C
Approval marks – approval
ENEC
Body material
Plastic
Cable cross-section, input side
0,5…2,5 mm²
Cable cross-section, output side
0,5…2,5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
Yes
Dimming interface
DA
Dimming range
60…100 %
ECG efficiency
91 % 2)
ECG lifetime
60000 h 1)
EEI – Energy Label
A2
Encapsulated
Yes 1)
Energy efficiency class
A2
GTIN
4008321956347
Height
48.00 mm
Input voltage AC
198…264 V
Inrush current
35 A
Length
133.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Max. cable length to lamp/LED module
1.5 m
Max. ECG no. on circuit breaker 10 A (B)
7 3)
Max. ECG no. on circuit breaker 16 A (B)
13 3)
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
123,0 mm
Nominal output voltage
250 V
Nominal voltage
220…240 V
Nominal wattage
55.00 W
Operating frequency
0.165 kHz
Overheating protection
Power reduction and switch off at T > 75 °C at the tc point
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
0.95 1)
Power loss in stand-by mode
< 0.5 W 4)
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
730.00 g
Protection class
I
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Standards
Acc. to EN 61347-2-
Suitable for emergency lighting
No
Surge capability (L-N)
3 kV
Surge capability (L/N-Ground)
4 kV
Temperature range at storage
-40…+85 °C
Type of current
AC
Type of protection
IP20
U-OUT (working voltage)
250 V
Width
77.00 mm
Wire preparation length, input side
10…11 mm
Wire preparation length, output side
10…11 mm
