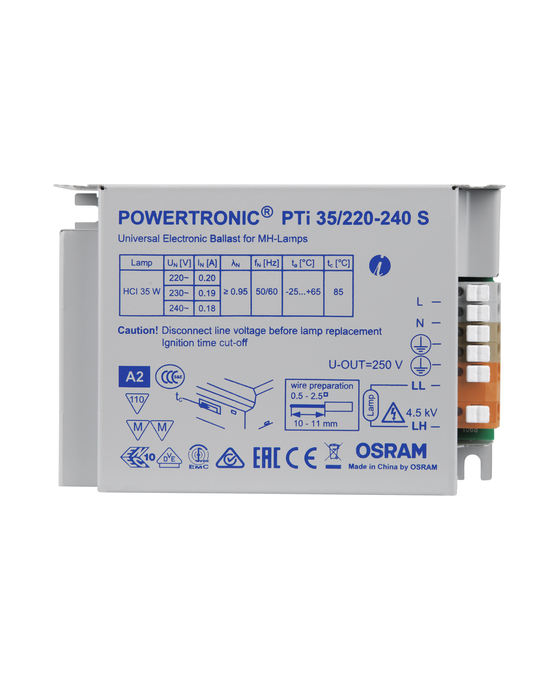

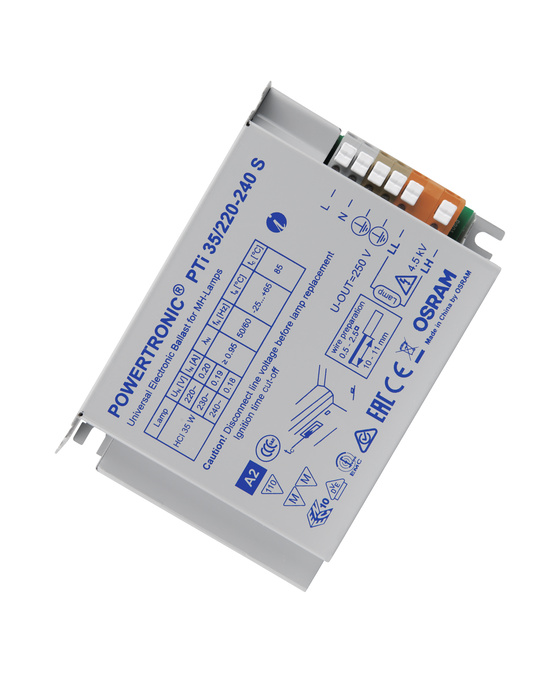

PTi 35/220…240 S
4008321073112
Product benefits
- Long reliable life at maximum permitted temperatures
- Compact dimensions and low weight for small luminaire designs
- Excellent thermal behavior for very high limit temperatures tc and ta
- Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)
Areas of application
- Shop lighting
- Health and fitness areas (in luminaires with protection class IP66 or higher)
- Effect and accent lighting
Product features
- Energy Efficiency Index EEI: A2
- Supply voltage: 220…240 V
- Line frequency: 50…60 Hz
- RI suppression: to EN 55015/CISPR 15
- Safety: to EN 61347-2-12
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
Safety advice
Thermal characteristics Ballast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point tc of the ECG does not exceed the maximum value.Attention! For safety reasons disconnect the device before replacing the lamp!- Any conductive material must have a minimum distance of 4 mm to the front of the terminal block.
- Installation by qualified electrician only.
- Terminals for protective earth not suitable for any through connection.
Ambient temperature range
-25…+65 °C
Approval marks – approval
ENEC
Body material
Metal
Cable cross-section, input side
0,5…2,5 mm²
Cable cross-section, output side
0,5…2,5 mm²
Casing material
Metal
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
ECG efficiency
91 %
ECG lifetime
50000 h 1)
EEI – Energy Label
A2
Energy efficiency class
A2
GTIN
4008321073112
Height
30.00 mm
Input voltage AC
198…264 V
Inrush current
30 A 1)
Length
110.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz
Max. cable length to lamp/LED module
1.5 m
Max. ECG no. on circuit breaker 10 A (B)
15 3)
Max. ECG no. on circuit breaker 16 A (B)
26 3)
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
85 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
99,0 mm
Nominal output voltage
250 V
Nominal voltage
220…240 V
Nominal wattage
43.00 W
Operating frequency
0.200…0.240 kHz
Overheating protection
Power reduction and switch off at T > 85 °C at the tc point
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
0.95 2)
Product recyclability
Mostly recyclable product 1)
Product weight
250.00 g
Protection class
I
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Standards
Acc. to EN 61000-3-2/IEC 1000-3
Suitable for emergency lighting
No
Suitable for fixtures with prot. class
I
Temperature range at storage
-40…+85 °C
Type of current
AC
Type of protection
IP20
U-OUT (working voltage)
250 V
Width
75.00 mm
Wire preparation length, input side
10…11 mm
Wire preparation length, output side
10…11 mm
