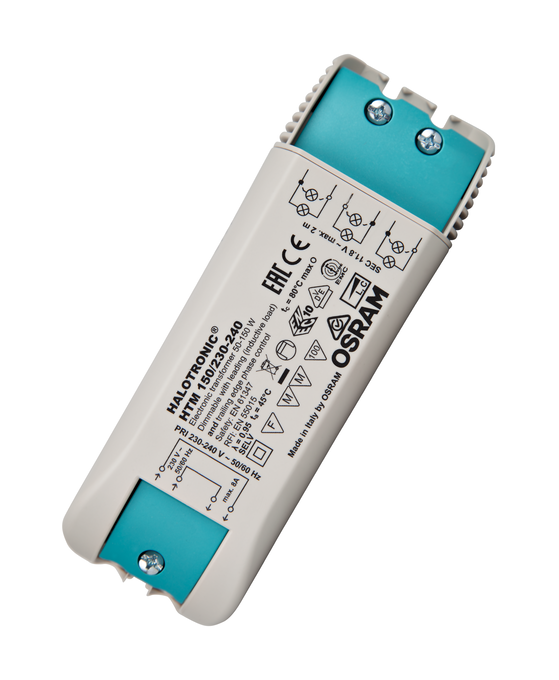

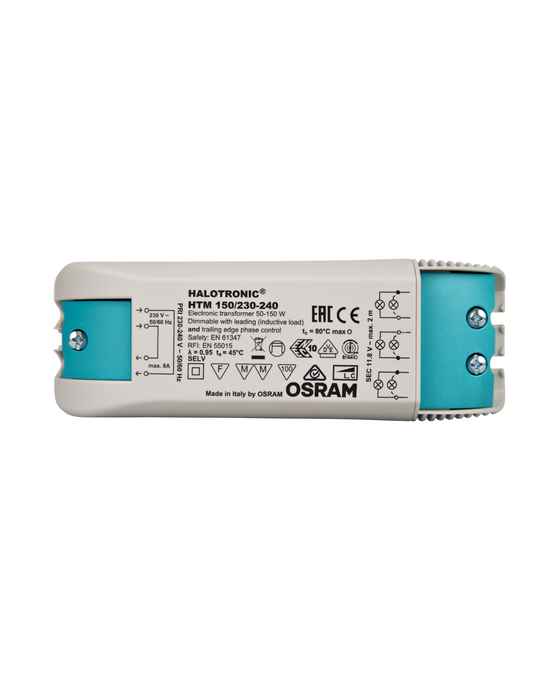

HTM 150/230…240
4050300581415
Product benefits
- Very low power loss thanks to high efficacy
- Strain relief suitable for different cable types (HTM)
- Suitable for space-critical installation thanks to compact functional design
- Extremely compact transformer for highly space-critical installation conditions (HTN)
- Protective operation throughout the entire partial-load range for long lamp life
Areas of application
- Effect and accent lighting
- Living rooms
- Object lighting
- Conference rooms
- Restaurants
- Recessed and surface-mounted furniture luminaires
- Shop lighting
- Event rooms
Product features
- Line frequency: 50…60 Hz
- RI suppression: to EN 55015 (A1: 2007)/CISPR 15, EN 55022
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
- Safety: to EN 61347
- Short-circuit protection, overload protection, overtemperature protection: electronically reversible
- Electrical isolation between the primary side and the secondary side
- Dimmable on the leading edge (without HTN) and trailing edge
Ambient temperature range
0…+45 °C
Approval marks – approval
V
Body material
Plastic
Cable cross-section, input side
1.5 mm²
Cable cross-section, output side
2.5 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
7 W 2)
Dimmable
Yes
Dimming range
0…100 %
ECG efficiency
95 % 4)
Encapsulated
No
GTIN
4050300581415
Height
36.00 mm
Input voltage AC
207…264 V
Input voltage range
230…240 V
Inrush current
1.1 A 2)
Length
153.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz 3)
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
16
Max. ECG no. on circuit breaker 16 A (B)
26
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
80 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
146,0 mm
No-load proof
Yes
Nominal output voltage
11.4
Nominal voltage
230…240 V
Nominal wattage
157.00 W
Operating frequency
40 kHz
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
0.99
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product weight
185.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to DIN VDE 0875/CISPR 15/EN 550
Suitable for fixtures with prot. class
II
Temperature range at storage
-40…+85 °C
Type of connection, output side
Screw terminal
Type of protection
IP20
Width
54.00 mm
Wire preparation length, input side
12
Wire preparation length, output side
12
