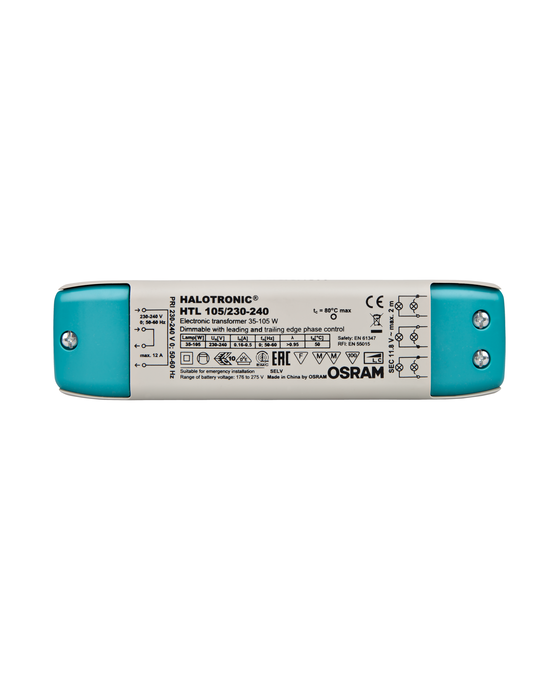

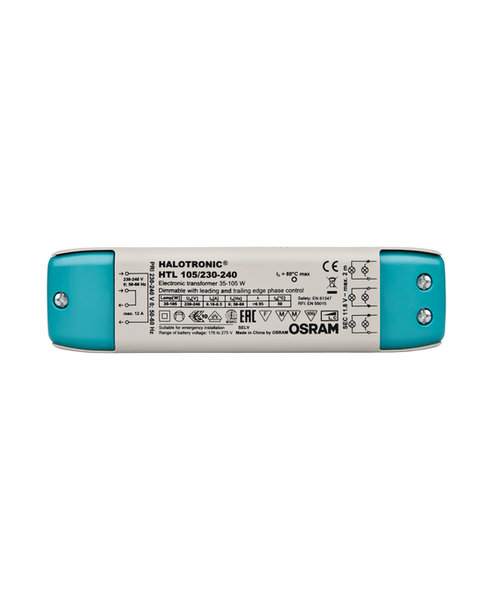

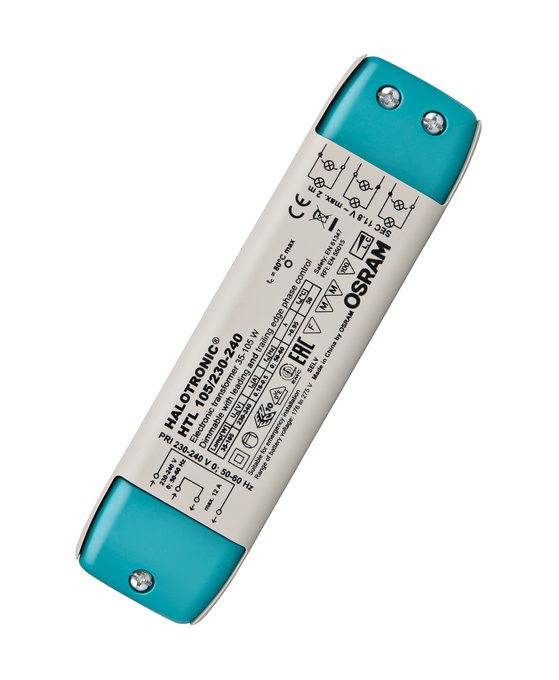

HTL 105/230…240
4008321927019
Product benefits
- Very low power loss thanks to high efficacy
- Through-wiring possible on the primary side
- Large temperature range
- Protective operation throughout the entire partial-load range for long lamp life
- High efficiency
Areas of application
- Effect and accent lighting
- Living rooms
- Object lighting
- Conference rooms
- Restaurants
- Recessed and surface-mounted furniture luminaires
- Shop lighting
- Event rooms
Product features
- Line frequency: 50…60 Hz
- RI suppression: to EN 55015 (A1: 2007)/CISPR 15, EN 55022
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
- Safety: to EN 61347
- Short-circuit protection, overload protection, overtemperature protection: electronically reversible
- Electrical isolation between the primary side and the secondary side
- Dimmable on the leading edge and trailing edge
Ambient temperature range
-20…+50 °C
Approval marks – approval
ENEC
Body material
Plastic
Cable cross-section, input side
2.5 mm² 1)
Cable cross-section, output side
4 mm² 1)
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
6 W 2)
Dimmable
Yes
Dimming range
0…100 %
ECG efficiency
95 % 5)
Encapsulated
No
GTIN
4008321927019
Height
34.00 mm
Input voltage AC
207…264 V
Input voltage DC
176…275 V
Input voltage range
230…240 V
Inrush current
0.6 A 2)
Length
170.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz 3)
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
23
Max. ECG no. on circuit breaker 16 A (B)
38
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
80 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
140,0 mm
No-load proof
Yes
Nominal output voltage
11.6
Nominal voltage
230…240 V
Nominal wattage
108.00 W
Operating frequency
40 kHz
Overheating protection
Automatic switch off, reversible
Overload protection
Automatic switch off, reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
0.95 4)
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product weight
160.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic switch-off, reversible
Standards
Acc. to EN 613
Suitable for emergency lighting
Yes
Suitable for fixtures with prot. class
II
Temperature range at storage
-40…+85 °C
Type of connection, output side
Screw terminal
Type of protection
IP20
Width
44.00 mm
Wire preparation length, input side
14
Wire preparation length, output side
14
