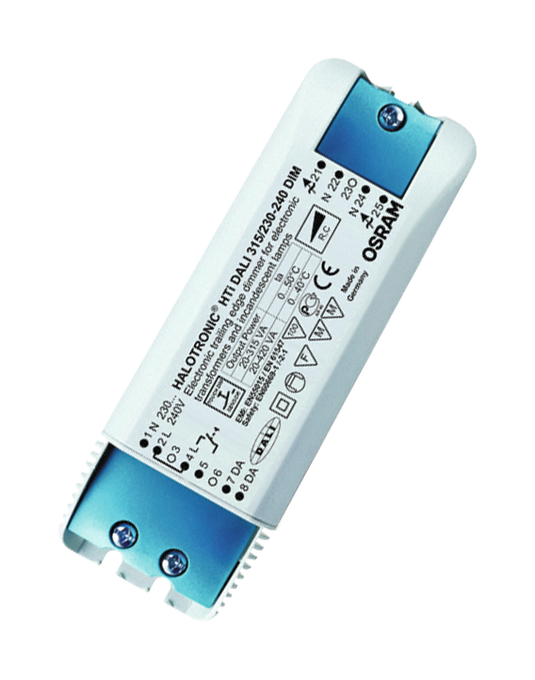

HTI DALI 315 DIM
4008321957344
Product features
- DALI trailing-edge phase dimmer
- Dimming of high voltage halogen and incandescent lamps
- Dimming of many common dimmable line voltage LED lamps
- Dimming of electronic transformers
- Standby power consumption: < 0.5 W
- DALI/Touch DIM control signal
- Short-circuit protection, overload protection, overtemperature protection: electronically reversible
- RI suppression: to EN 55015 (A1: 2007)
- Line harmonics according to EN 61000-3-2
- Safety: to EN 61347
- Immunity according to EN 61547
- Device fits also for special applications where dimming below 1 % is required
Equipment / Accessories
- Suitable for all OSRAM HALOTRONIC and ET-PARROT ECGs
- Suitable for all dimmable OSRAM line voltage LED lamps
Ambient temperature range
0…+45 °C
Body material
Plastic
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
Yes
Dimming interface
Phase cut-off
Dimming range
0.1…100 % 1)
Encapsulated
No
GTIN
4008321957344
Height
36.00 mm
Input voltage range
220…240 V
Length
153.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50 Hz
Max. cable length to lamp/LED module
100 m
Max.housing temperature in case of fault
110 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
146,0 mm
Nominal output voltage
220…240 V
Nominal voltage
220…240 V
Nominal wattage
315.00 W
Overheating protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product weight
137.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Temperature range at storage
-40…+85 °C
Type of connection, output side
Screw connection
Type of protection
IP20
Width
54.00 mm
