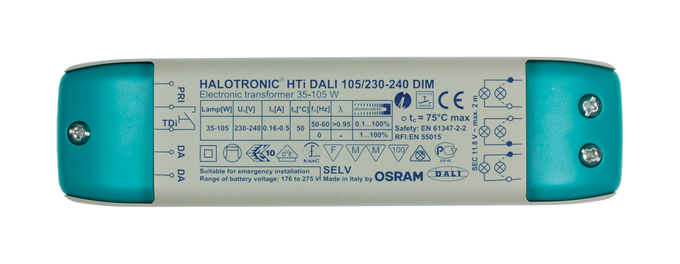

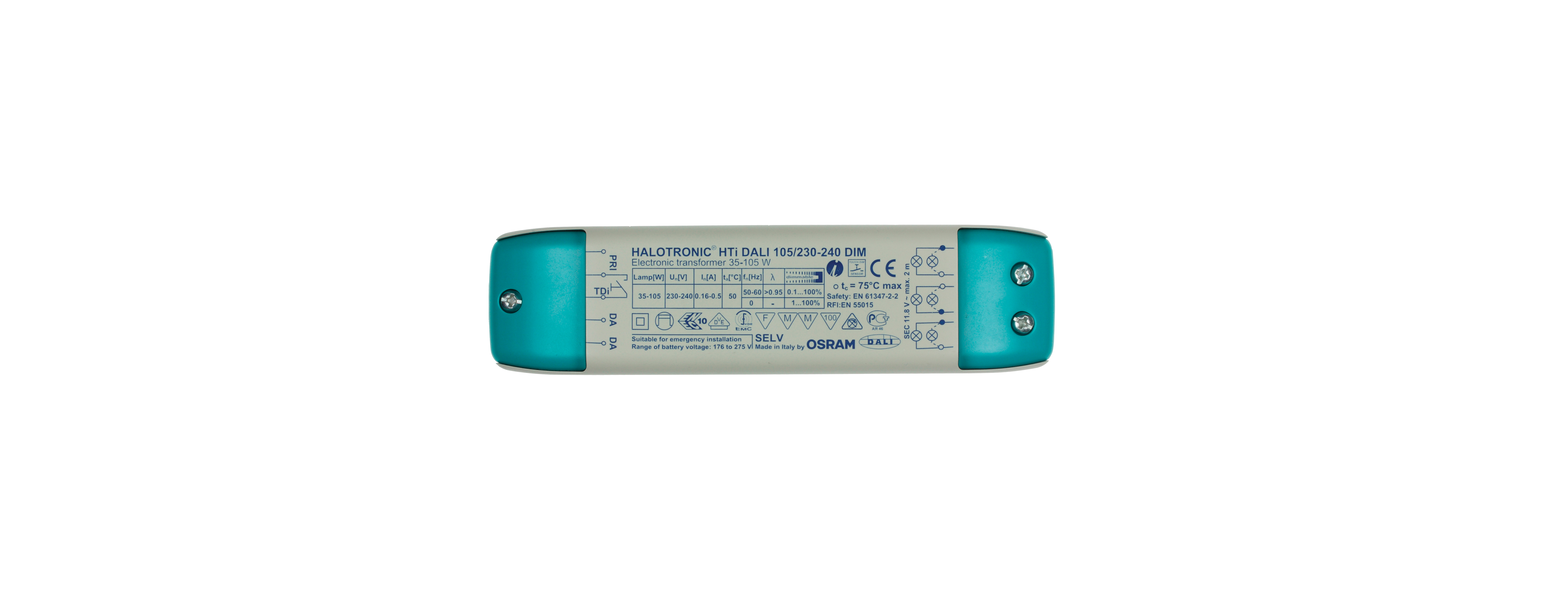

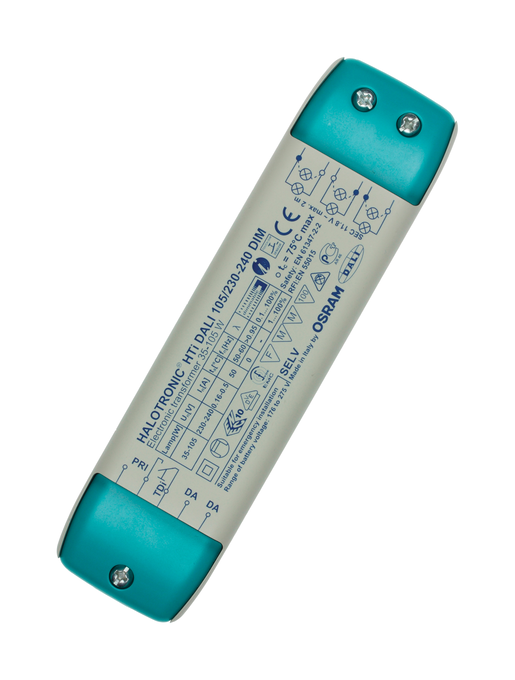

HTI DALI 105/230…240 DIM
4008321420633
Product benefits
- Very low power consumption thanks to high efficiency
- Through-wiring possible on the primary side
- Large temperature range
- Protective operation throughout the entire partial-load range for long lamp life
Areas of application
- Effect and accent lighting
- Living rooms
- Object lighting
- Conference rooms
- Restaurants
- Recessed and surface-mounted ceiling luminaires
- Shop lighting
- Event rooms
Product features
- DALI transformer for low voltage halogen lamps
- Electrical isolation between the primary side and the secondary side
- Short-circuit protection, overload protection, overtemperature protection: electronically reversible
- Device fits also for special applications where dimming below 1 % is required
Ambient temperature range
-20…+50 °C
Approval marks – approval
E1 approv
Body material
Plastic
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
6 W 4)
Dimmable
Yes
Dimming interface
DA
Dimming range
0.1…100 % 1)
Encapsulated
No
GTIN
4008321420633
Height
34.00 mm
Input voltage DC
176…275 V
Input voltage range
230…240 V
Inrush current
0.6 A
Length
170.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz 2)
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
23
Max. ECG no. on circuit breaker 16 A (B)
38
Max.housing temperature in case of fault
100 °C
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
140,0 mm
Networked standby power for CLS
0.50 W
No-load proof
Yes
Nominal output voltage
11.6
Nominal voltage
230…240 V
Nominal wattage
108.00 W
Operating frequency
40 kHz
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
0.95 3)
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product weight
160.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to EN 55015:2006 + A1:20
Temperature range at storage
-40…+85 °C
Type of connection, output side
Screw connection
Type of protection
IP20
Width
44.00 mm
Wire preparation length, input side
8.0 mm
Wire preparation length, output side
8.0 mm
