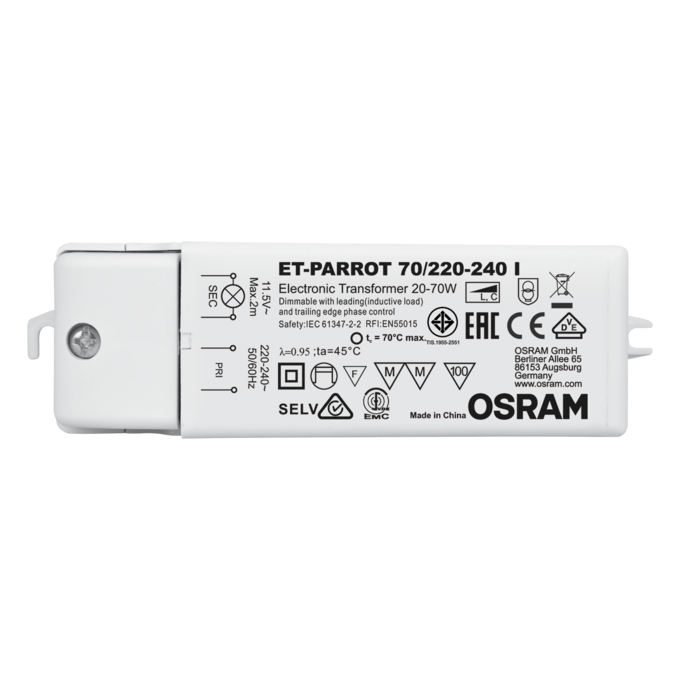

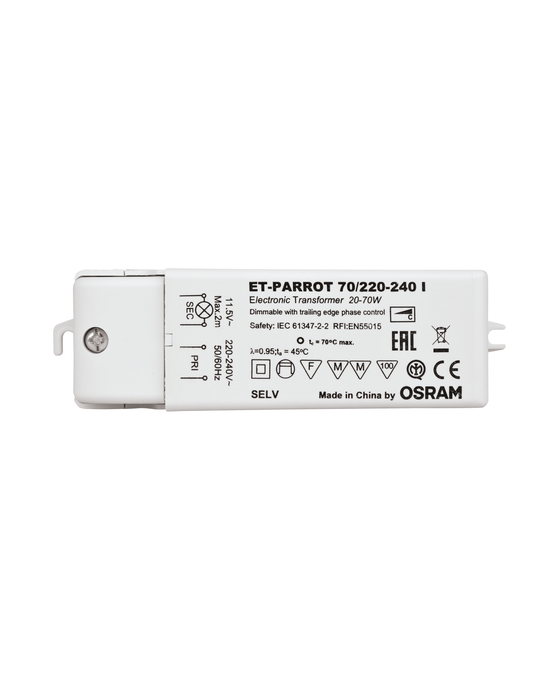

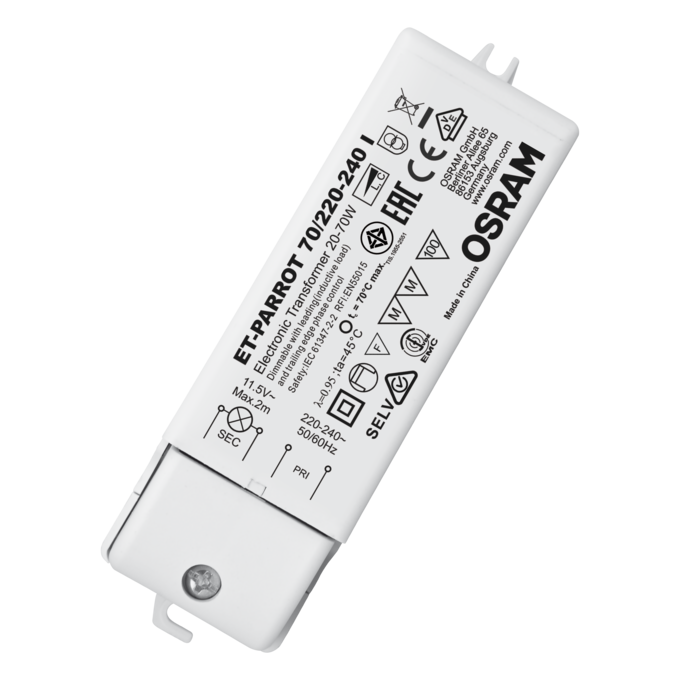

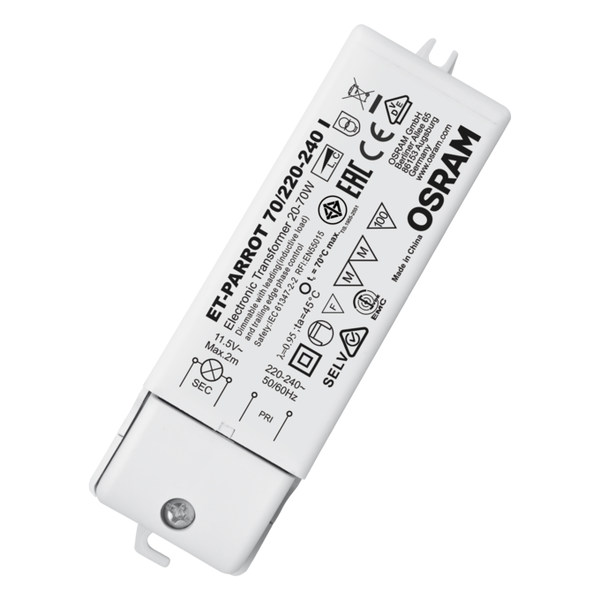

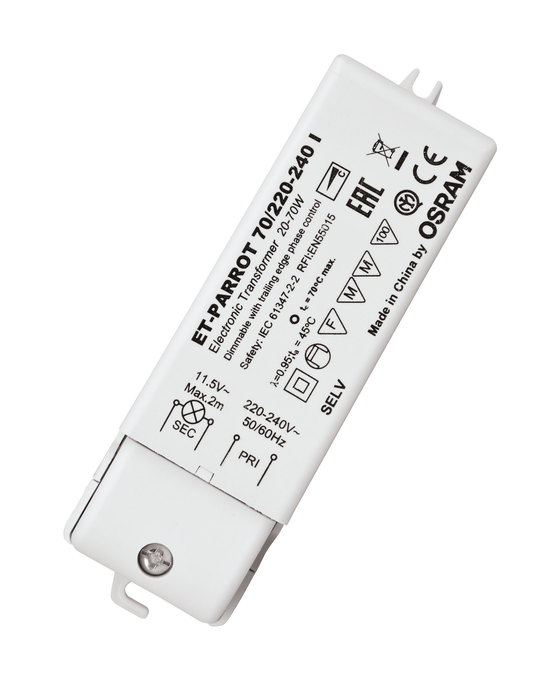

ET-PARROT 70/220…240 I
4008321111593
Product benefits
- Very low power loss thanks to high efficacy
- Protective operation throughout the entire partial-load range for long lamp life
Areas of application
- Effect and accent lighting
- Living rooms
- Object lighting
- Conference rooms
- Restaurants
- Recessed and surface-mounted furniture luminaires
- Shop lighting
- Event rooms
Product features
- Line frequency: 50…60 Hz
- RI suppression: to EN 55015 (A1: 2007)/CISPR 15, EN 55022
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
- Safety: to EN 61347
- Short-circuit protection, overload protection, overtemperature protection: electronically reversible
- Electrical isolation between the primary side and the secondary side
- Dimmable on the leading edge and trailing edge
Ambient temperature range
0…+45 °C
Approval marks – approval
V
Body material
Plastic
Cable cross-section, input side
0.75 mm²
Cable cross-section, output side
0.75 mm²
Casing material
Plastic
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Device power loss
4 W 5)
Dimmable
Yes
Dimming range
0…100 %
ECG efficiency
95 % 4)
Encapsulated
No
GTIN
4008321111593
Height
31.00 mm
Input voltage AC
198…264 V
Input voltage range
220…240 V
Inrush current
0.45 A
Length
128.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50/60 Hz 2)
Max. cable length to lamp/LED module
2,0 m
Max. ECG no. on circuit breaker 10 A (B)
37
Max. ECG no. on circuit breaker 16 A (B)
59
Max.housing temperature in case of fault
110 °C
Maximum temperature at tc test point
70 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
119,0 mm
No-load proof
Yes
Nominal output voltage
11.9
Nominal voltage
220…240 V
Nominal wattage
74.00 W
Operating frequency
50 kHz
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
5…85 % 1)
Power factor λ
0.95 3)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
115.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Short-circuit protection
Automatic reversible
Standards
Acc. to EN 613
Suitable for fixtures with prot. class
II
Temperature range at storage
-40…+85 °C
Type of connection, output side
Screw terminal
Type of protection
IP20
Width
38.00 mm
Wire preparation length, input side
12
Wire preparation length, output side
12
